Disassembly and Reassembly Procedure
Disassembly Procedure
Disassemble the power sensor by performing the following steps:
Tab le 4- 1 1 Disassembly Procedure
Disassemble the power sensor only in a static free workstation. Electrostatic discharge renders the
power sensor inoperative.

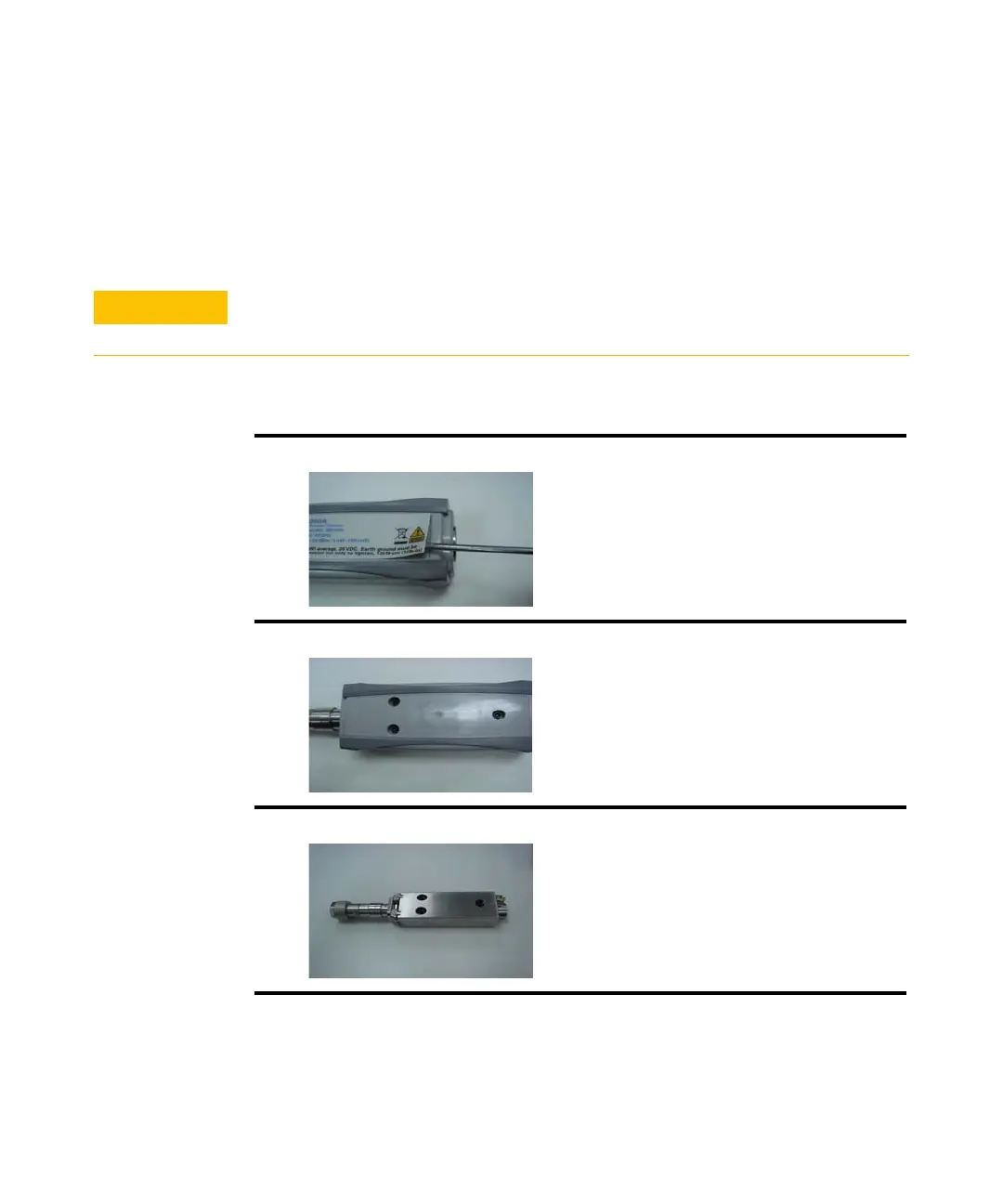

1 Remove the top label.
2 Loosen three screws by using
M2 to remove the housing.
3 Replace the defective sensor
module with a new sensor
module. Please refer to
Table 4- 10.
To Next Page
