Base Matrix Configuration 2
Keysight 34934A User’s Guide 155
Placing CONFIG Jumpers for 8x64

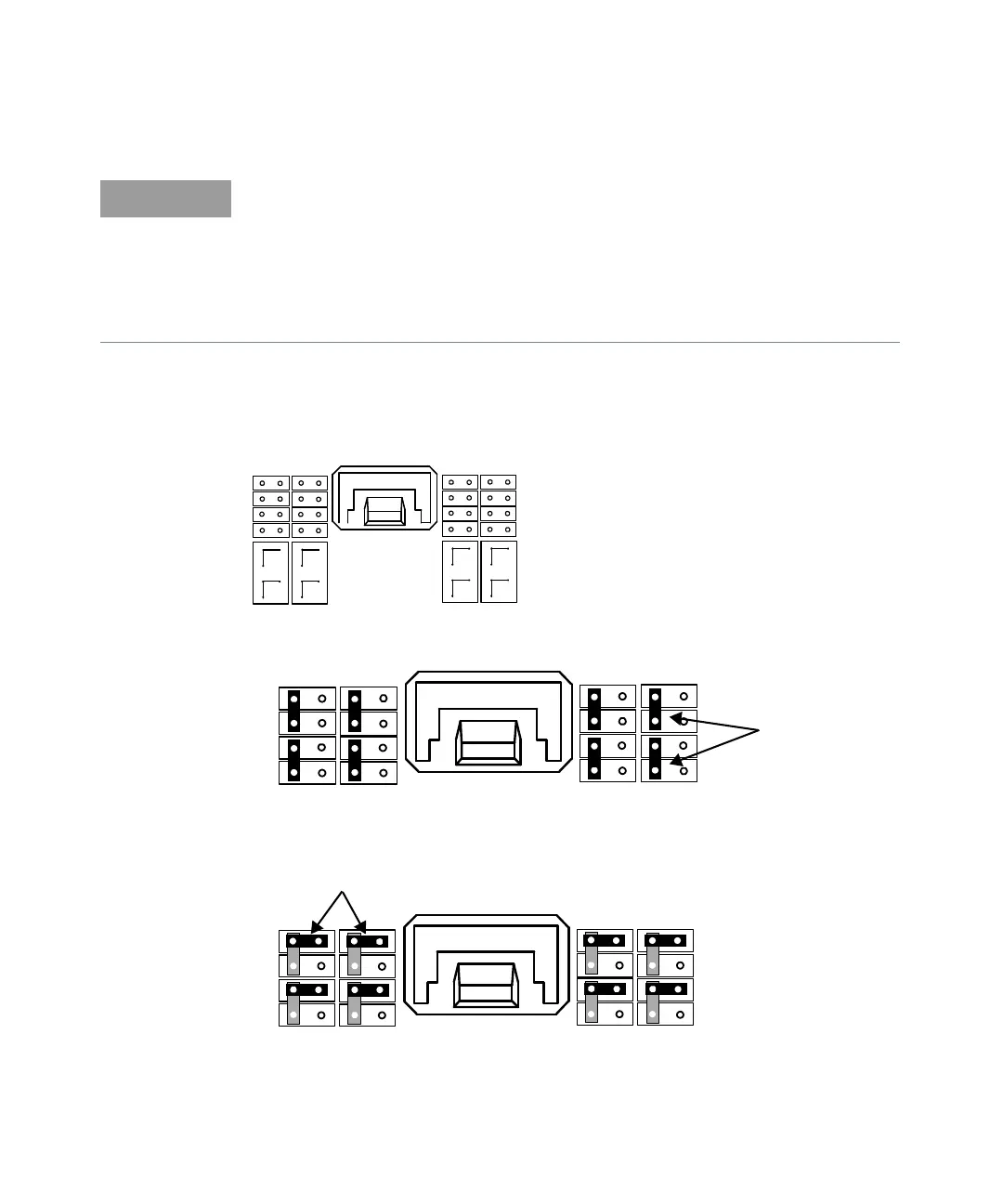

The CONFIG jumper area—shown below
with jumpers removed— includes an illustration (on the 8x64 removable overlay)
that shows jumper placement for setting a 8x64 matrix configuration.
1 Place eight vertically positioned jumpers as shown below.
2 Then stack eight horizontally positioned jumpers above the first set of eight, as
shown below.
In a high temperature-high humidity environment, salt and oil contaminants
transferred from the fingertips to the moveable CONFIG jumpers can affect the
34934A’s published DC Isolation specification if adjacent jumpers are in physical
contact with each other. In applications where DC (channel to channel) isolation >
10 GΩ is required, use clean cotton gloves when handling the CONFIG jumpers.
If cotton gloves are not available, clean the plastic jumper surfaces using a
cotton cloth and 91% isoprolyl alcohol after handling.
adjacent housings
should not touch
adjacent housings should not touch
