2 Base Matrix Configuration
164 Keysight 34934A User’s Guide
To set the CONFIG jumpers for 8x64:

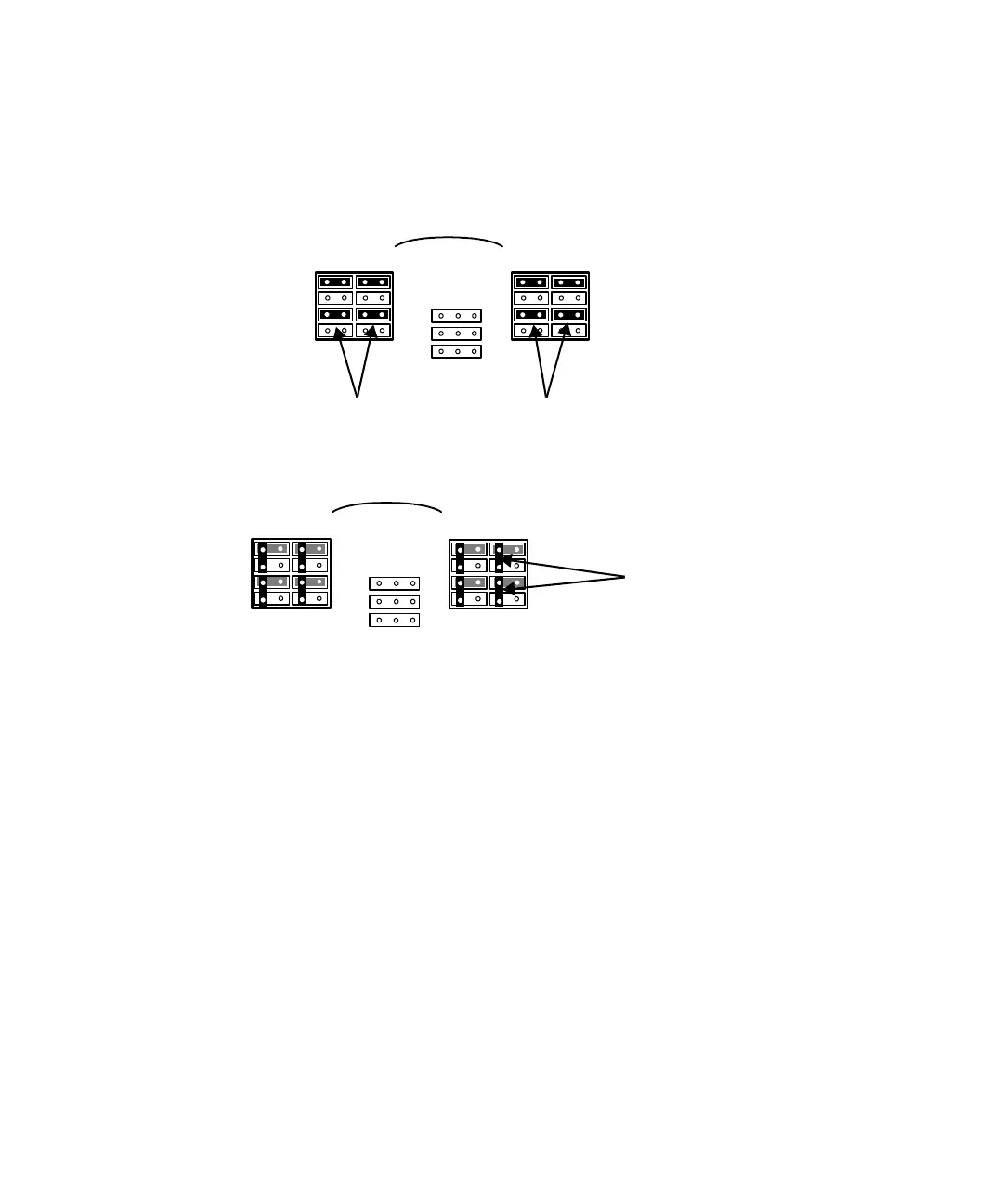

1 Place eight horizontally positioned jumpers as shown below.
2 Then stack eight vertically positioned jumpers as shown below.
Placing Row Extension Jumpers on the 34934C-002 Configuration Block
The jumpers in 16x3 jumper block J7 (at board center) determine if row
connections can be made from the left or right side of the board (i.e. they “extend”
the row signal connection points out to only one of the two pairs of blue 20-pin
connectors at the sides of the configuration block).
Note that “row connections” at minimum include the connections between
modules in the matrix, but may also include your access from field wiring to the
matrix rows.
Setting these jumpers provides you the flexibility to plan how to route your custom
cabling, depending on slot placement of the individual 34934A modules and their
corresponding 34934C-002 blocks.
CONFIG
CONFIG
JUMPERS
JUMPERS
J11
J13 J12
J10
J7
adjacent housings should not touch
CONFIG
CONFIG
JUMPERS
JUMPERS
J11
J13 J12
J10
J7
adjacent housings should not touch
