Base Matrix Configuration 2
Keysight 34934A User’s Guide 185

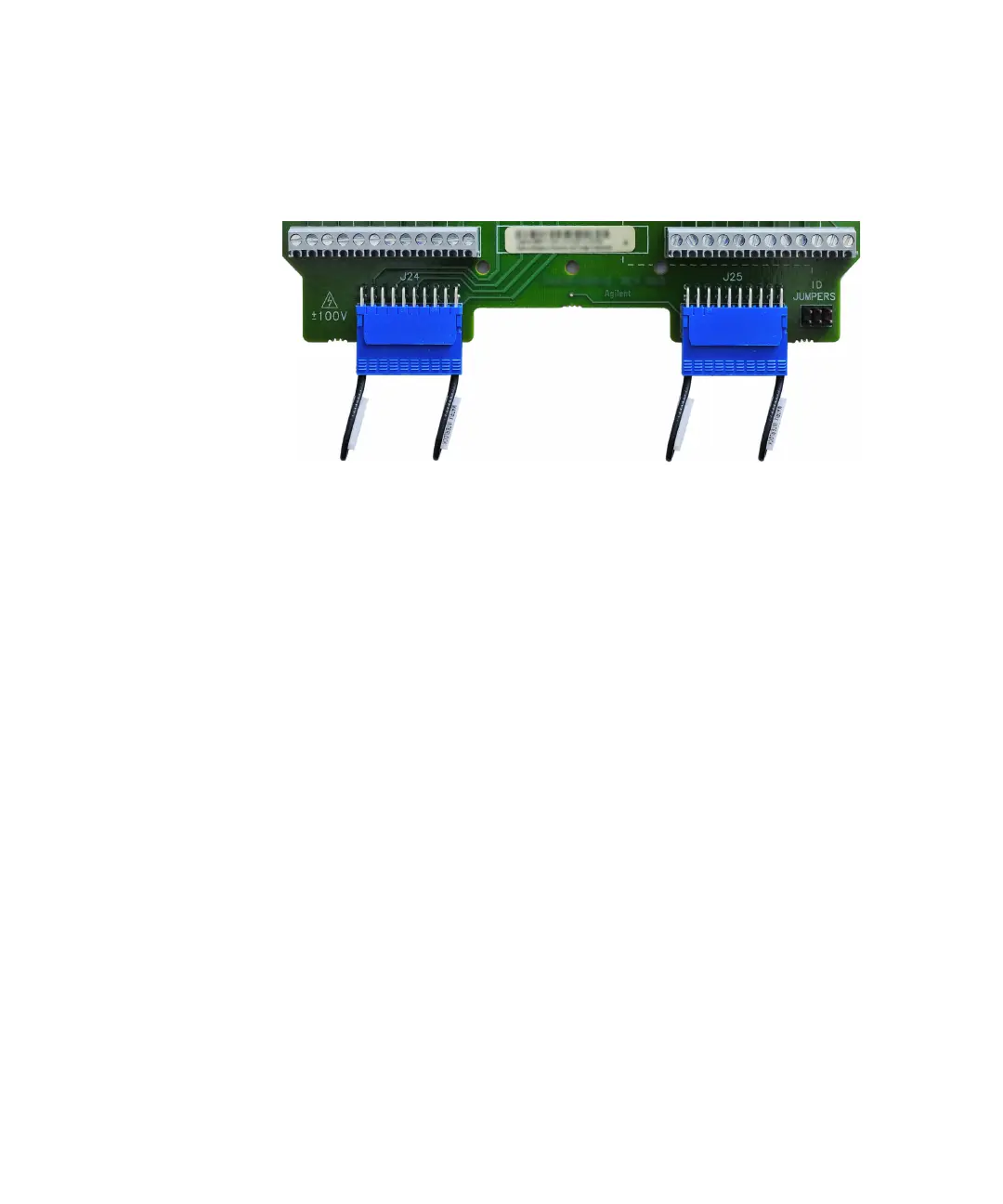

Two keyed 20-pin terminators are supplied for providing safety interlock
continuity. Install the terminators securely in the headers, as shown below.
The supplied terminators incorporate both the shorting jumper for pins 19 and 20
and a jumper precluding connection to pins 1 and 2. Detailed pin diagrams for
these terminators are provided on page 188.
34934T-002 Terminal Block: 16x32 Wiring
Once the required jumpers have been placed for 16x32, you are ready to complete
16x32 wiring configuration; then make row and column connections to the
terminal block.
Terminal block wire jumpers
You must provide a jumper on the terminal block between the left and right screw
terminals for each of the 32 columns. This can be done—channel by channel—on
either side of the terminal block, but not on both sides for any channel. An
example of jumper placement is shown below.
