1 Overview of the 34934A
26 Keysight 34934A User’s Guide
4x32 2-Wire Operation, Test Circuit Examples

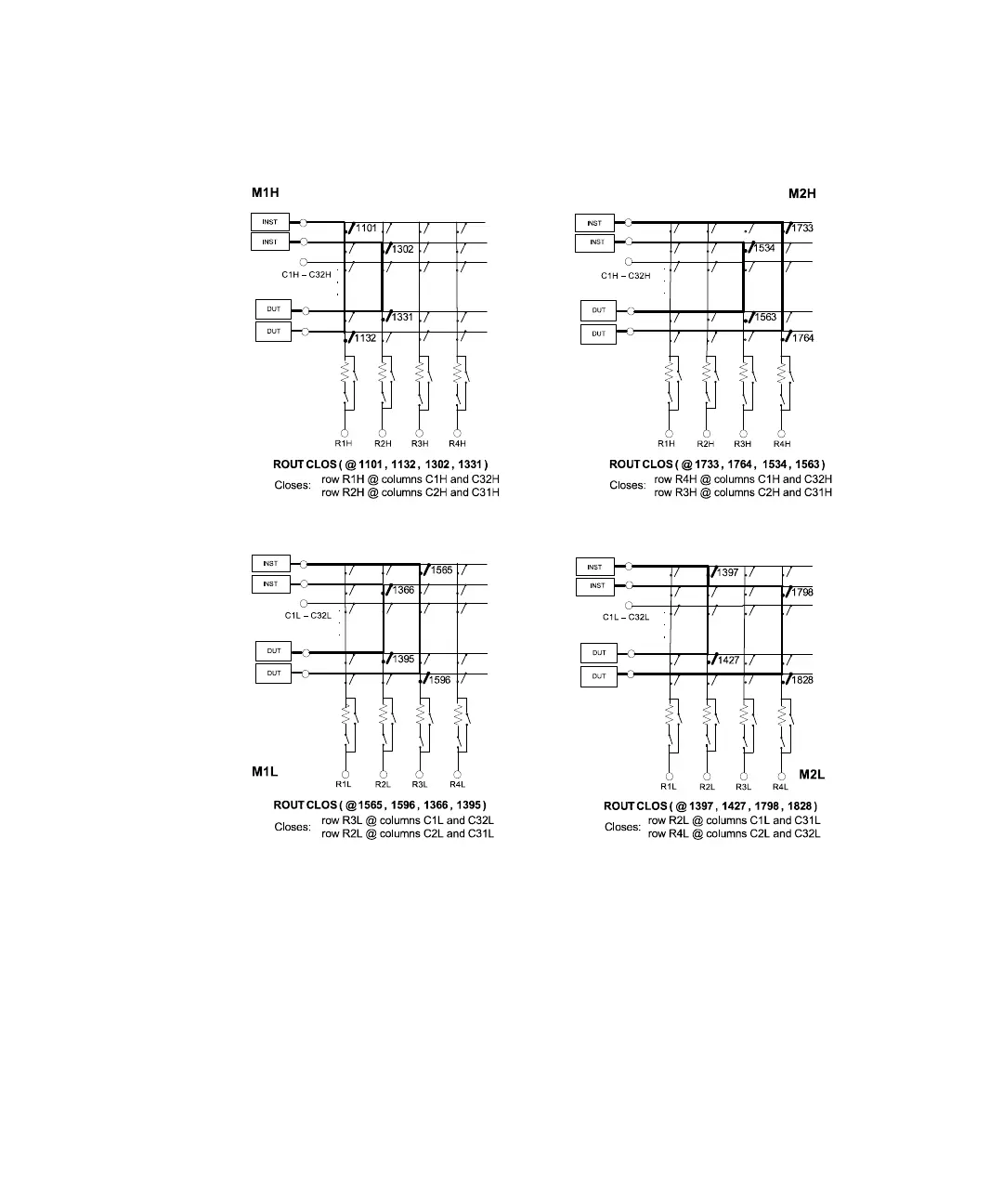

The two examples below each show a 2-wire circuit path. One path uses matrix 1
(left side of the 34934T-001 terminal block); the other path uses matrix 2 (right
side of terminal block).
See “Channel Numbering” on page 168 for the numbering scheme.
