44 DSOX1204A/G Oscilloscopes Service Guide
4 Troubleshooting
• 0 V level.
• channel 1 source.
• dc coupling.
• rising edge slope.
• 60 ns holdoff time.
• Display:
• 20% grid intensity.
• persistence off.
• Other:
• Acquire mode normal.
• Run/Stop to Run.
• cursor measurements off.

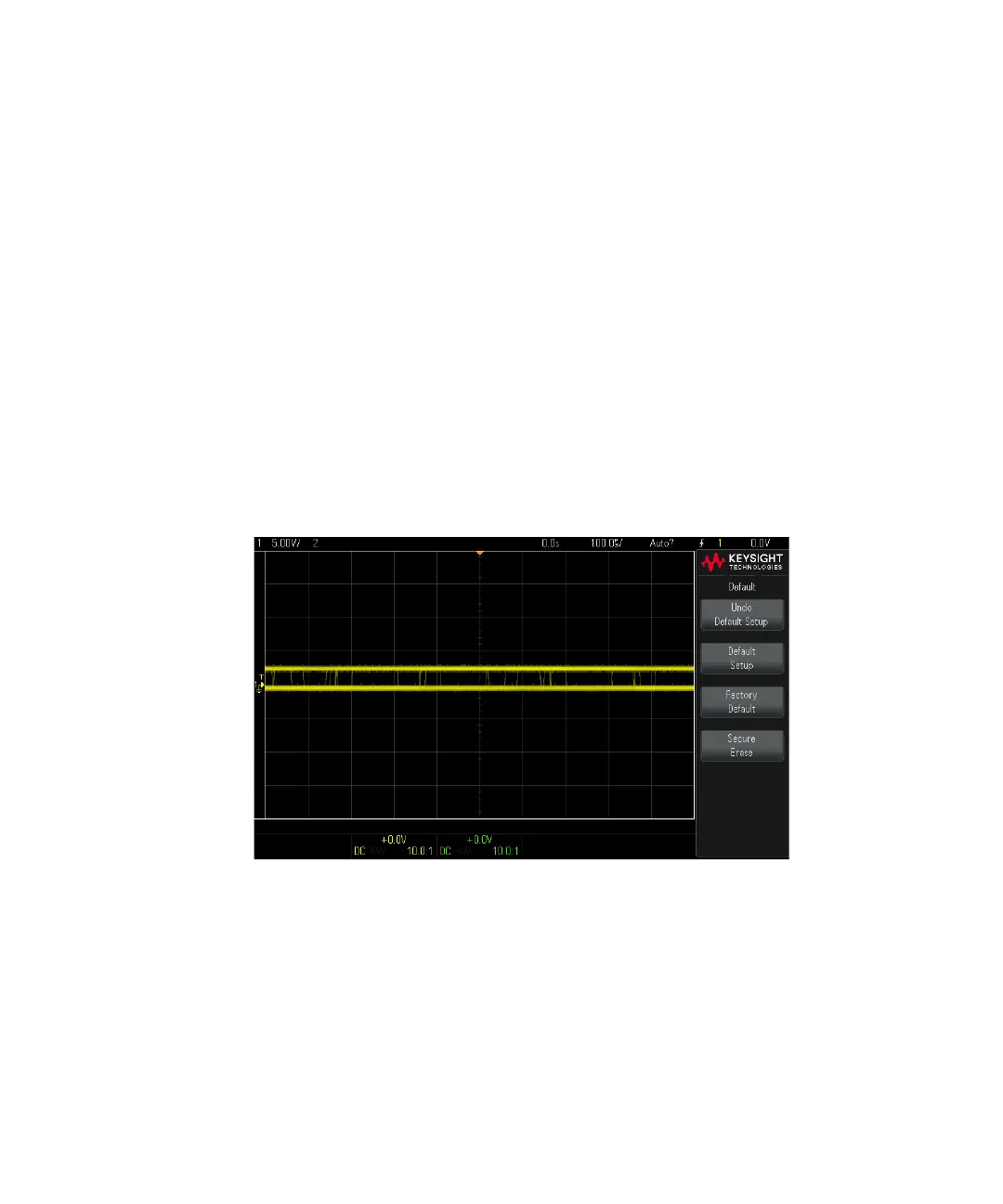

Figure 5 Default setup screen
2 If your screen looks substantially different, replace the system board.
