The Rear Panel at a Glance
Use the front-panel “I/O Config” key to:
– Select the GPIB or RS-232 interface (see chapter 3 in User's Guide).
– Set the GPIB bus address (see chapter 3 in User's Guide).
– Set the RS-232 baud rate and parity (see chapter 3 in User's Guide).
1
2
3
65
4

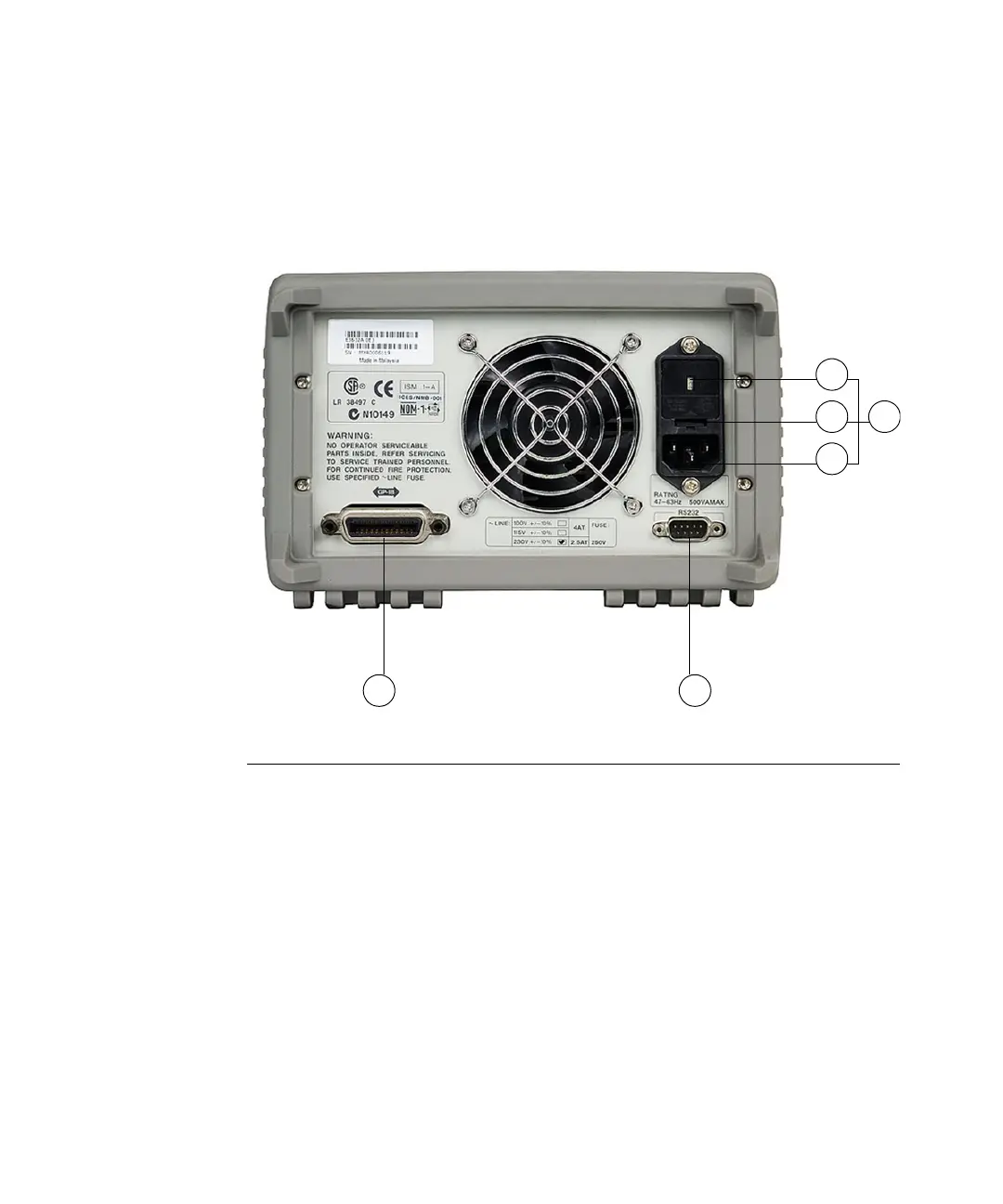

1 Power-line voltage setting 4 Power-line module
2 Power-line fuse-holder assembly 5 GPIB (IEEE-488) interface connector
3 AC inlet 6 RS-232 interface connector
