1 Getting Started
16 Keysight N1911A and N1912A Installation Guide
Connector Function

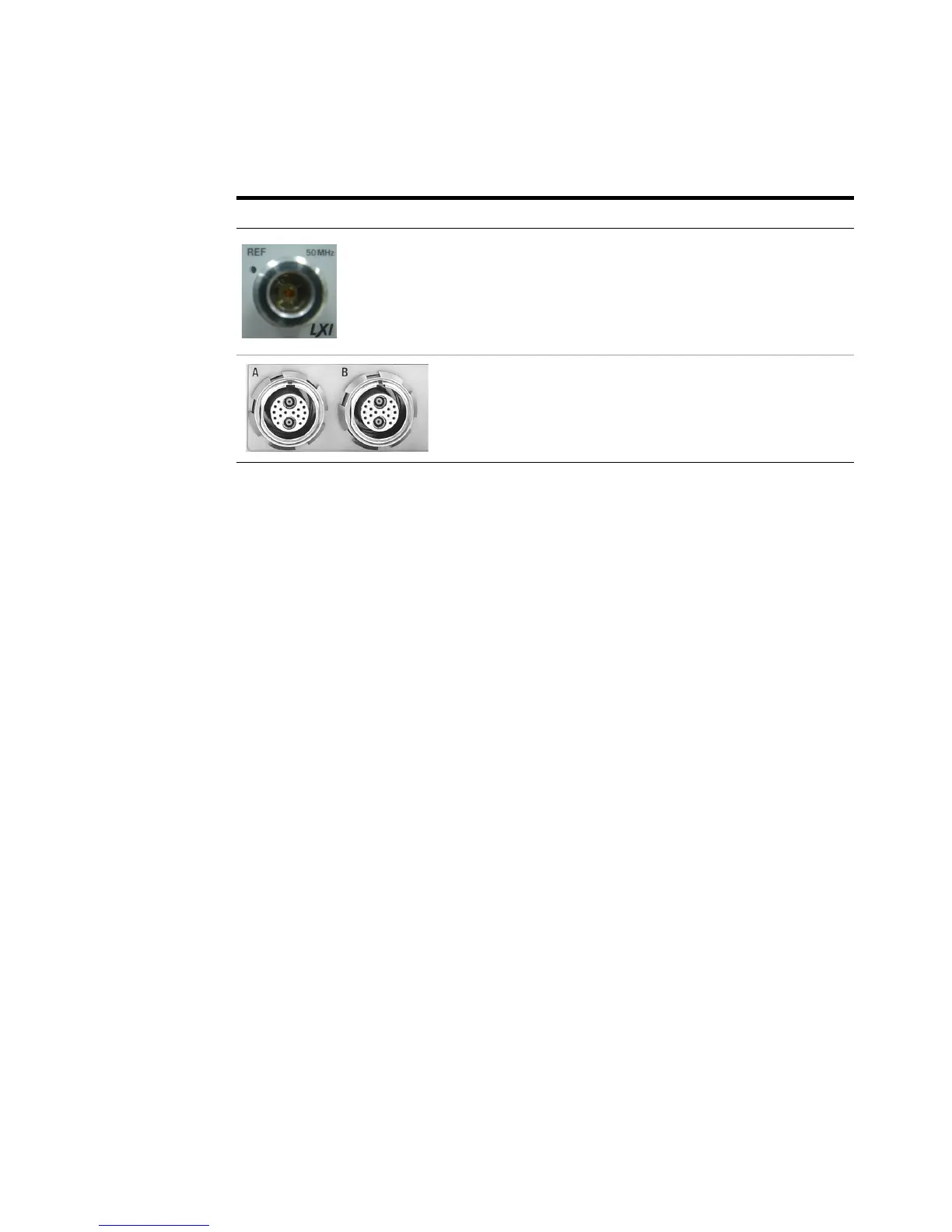

The power reference is a 1 mW (0 dBm) 50 MHz signal available
from a 50 Ω type-N connector. It is used for calibrating an 8480,
N8480 Series or E-Series power sensor and meter system. If the
meter is configured with Option 003, the connector is fitted to the
rear panel. The green LED beside the connector is lit when the
calibrator is turned on.
The sensor input connectors (N1912A shown, the N1911A has one
input). If the meter is configured with Option 003, the connectors
are fitted to the rear panel.
