AM/FM Metrics (SA Only and Option 355)
SINAD and THD Calculations
SINAD and THD Calculations
— FieldFox converts the audio waveform to the audio frequency spectrum
using an FFT (i.e., The FFT result is not displayed). Refer to Figure 21-4 on
page 364.
— The FFT waveform is used to calculate SINAD and THD distortion metrics
— The fundamental signal, harmonics, and noise from 0 Hz to 24 kHz are
applied to the formulas. Refer to Figure 21-5 on page 365.
— For more on calculations, refer to “Overview of Measurement Types” on
page 357.
— See also, http://literature.cdn.keysight.com/litweb/pdf/5991-4913EN.pdf

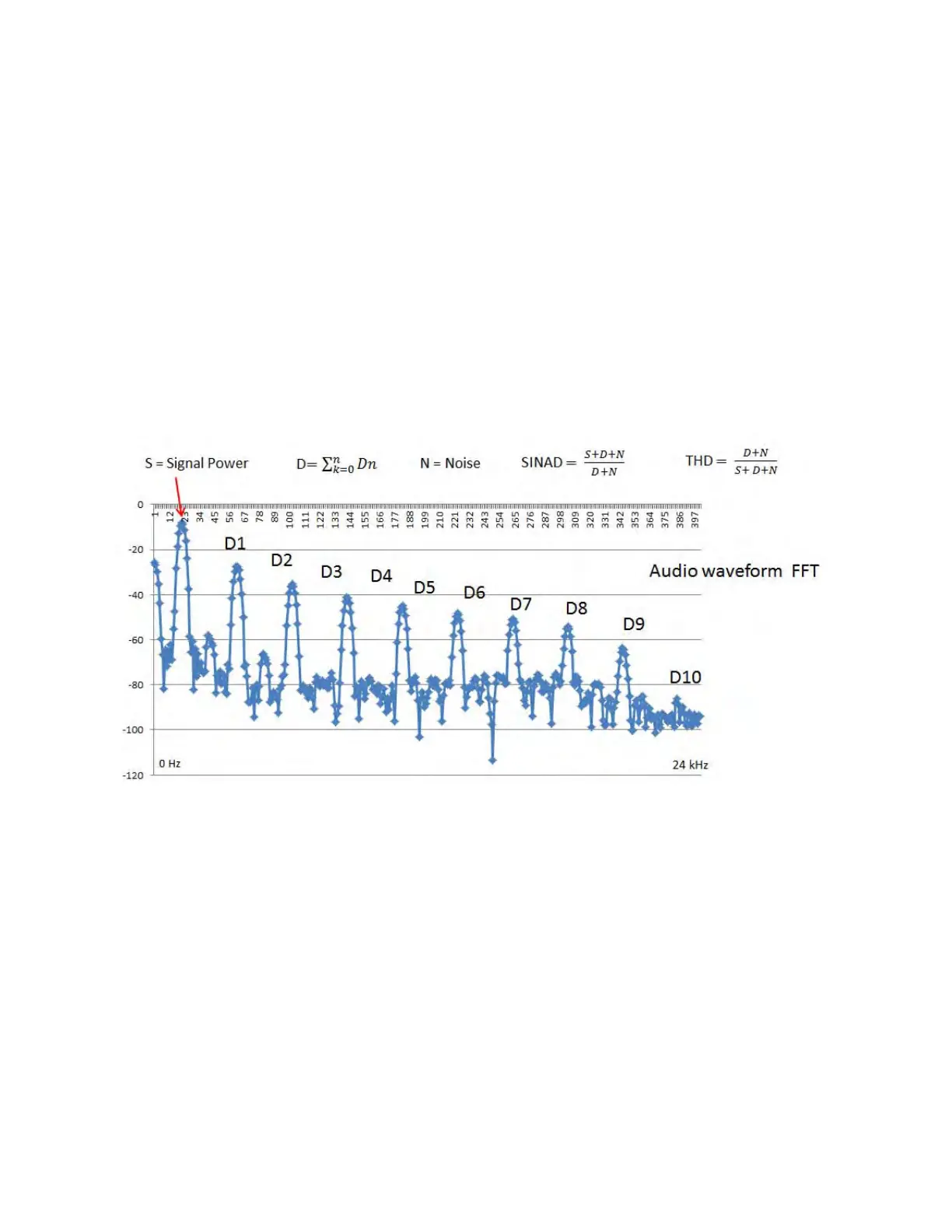

Figure 21-4 Audio Waveform with FFT Calculations
