1 Calibration Procedures
94 Keysight U3606B Service Guide

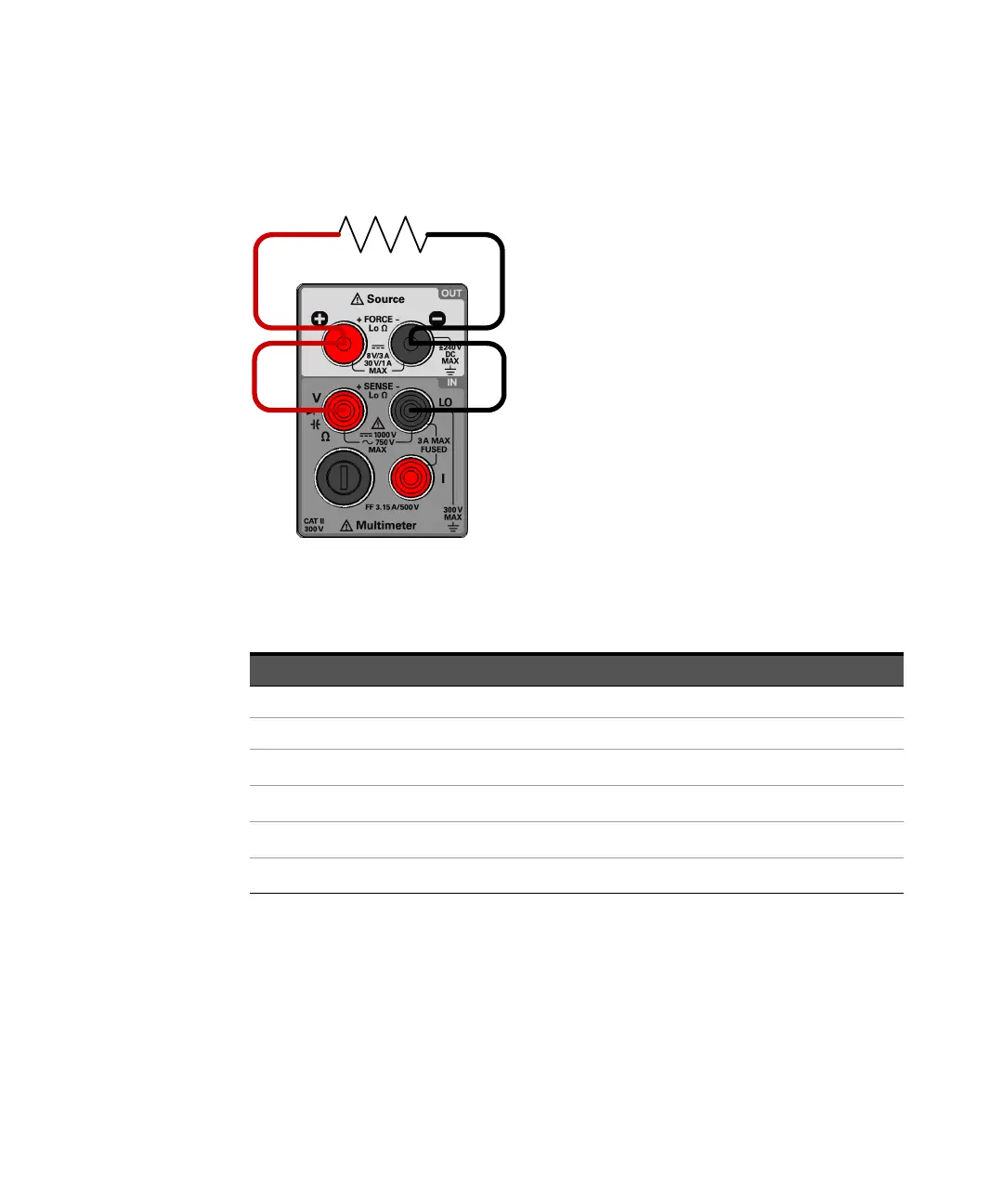

8 Verify the constant voltage adjustments using the “CV programming and
readback accuracy” on page 49.
Table 1-33 Constant voltage output adjustment
Adjustment item Output voltage
OUt-L AUTO calibration
OUt-H AUTO calibration
LOAd1
[a]
[a] See step 7 for information on how to connect the LOAd adjustment item.
30 V with additional 30 Ω (30 W) fixed resistor
LOAd2
[a]
8 V with additional 2.67 Ω (24 W) fixed resistor
LOAd3
[a][b]
[b] S2 range with a lighter load.
8 V with additional 300 Ω (3 W) fixed resistor
LOAd4
[a]
1000 mV with additional 0.33 Ω (3 W) fixed resistor
