Cables
GND (Black)(-)
Connect to Ground.
IGN (White)—Start (ignition)
APW2200 start signal.
Power VCC (Red)(+)
Power (+12V to +24V)
1. Replacing the fuse of cigar jack
2. Connecting the external alarm to
Body and making its setting
3. Preparing for APW2200’s wiring
4. APW2200 wiring procedure
① Connect “-” to Ground.
② Connect “+” to Continuous Power.
Continuous Power supplies power even though ignition is turned off.
For example, the emergency light is on even though ignition is turned off.
③ Connect the IGN cable.
Power is supplied through the cable only when ignition is turned on.
Most cables except the emergency light. Recommended to use the cigar fuse for supplying
power.
④ After referring to “APW2200 Guide (Switch Setting),” set the time and the “Low Batt” function.
Caution 1) When connecting the inside power, start wiring from Ground.
Caution 2) For Continuous Power and IGN signal, connect them via the inside fuse.

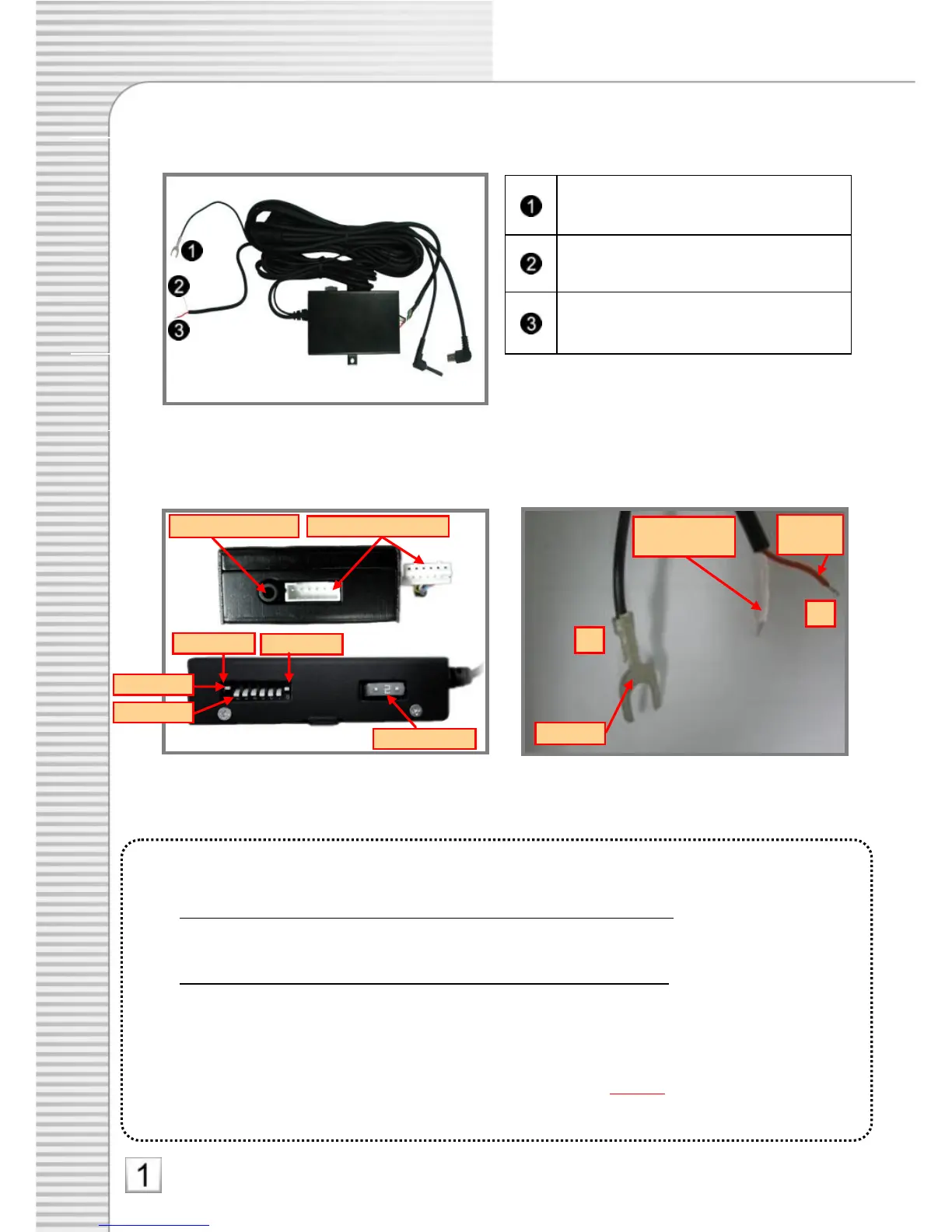

APW-2200 User ’ s Guide
Power Unit for Car Parking
Monitoring
Switch #1
Switch #8
Switch ON
Switch OFF
DR Connection Cable
External Alarm Input
Auto-Fuse 2A
GND
-
+
IGN (Start)
Cable (White)
Power
(Red)
*APW-2200 is an accessory product that can record at 1~3 frames while car parking.
