Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Concerto
®
Seating with Power & Data
Assembly Instructions
Decorative End Panels - Standard
Concerto Seating
Decorative end panels are not
available with power & data, or large
tablet arm.
NOTE: Installation of the end
panel should take place after
completing all installation of
tablet arms, seat and back
assemblies.

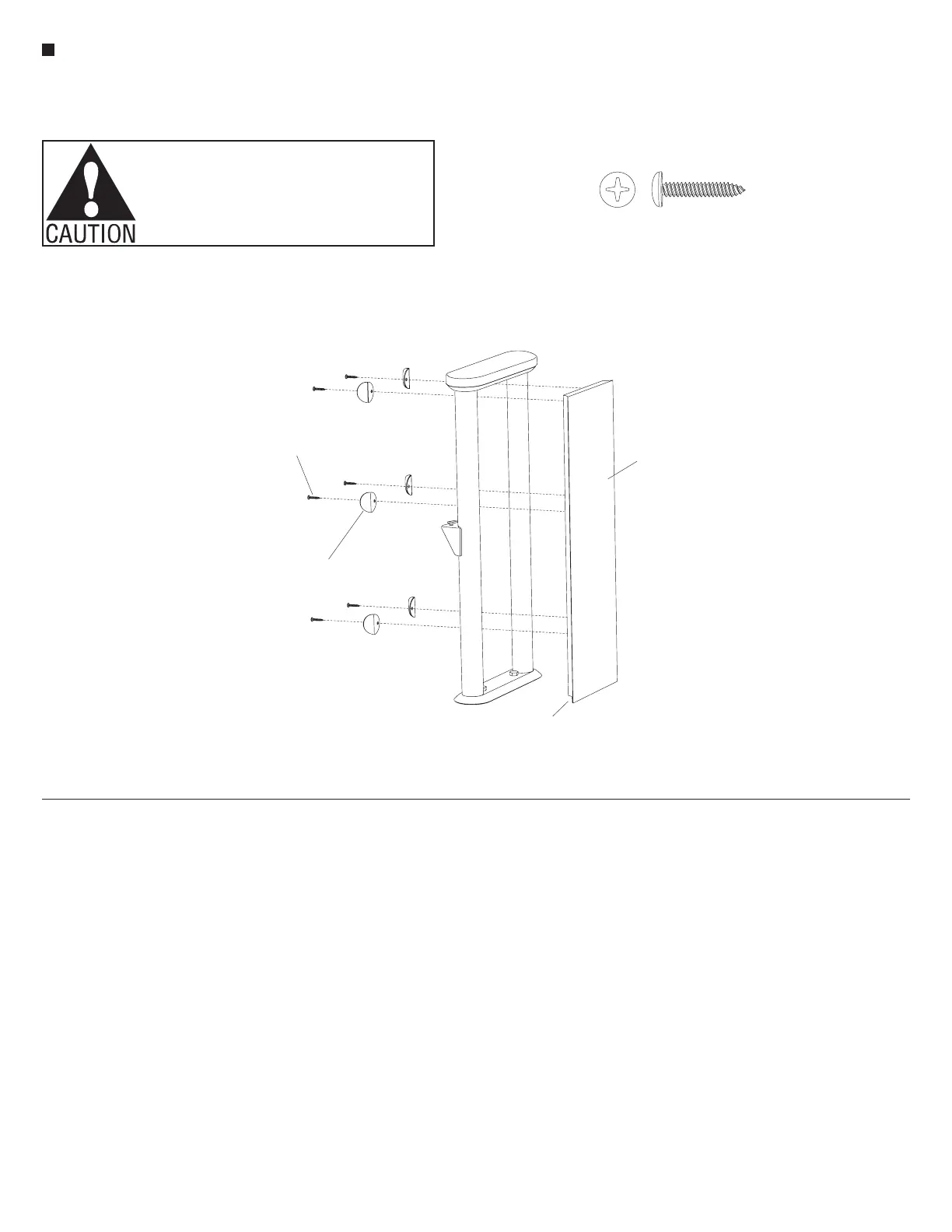

1. Place the end panel between the
upright tubes as shown, noting that
there is a top and a bottom to the end
panel. The bottom of the end panel
has a relief for the
1
/
4
-20 x 1
1
/
2
" bolts
used to mount the upright to the floor
(Figure 9).
2. Position an end panel retaining clip
as shown and tighten the
#10 screws, clamping the end panel
to the upright (Figure 9).
3. Repeat the above step for the five
remaining end panel retaining clips.
panel bottom
with relief
end panel
retaining
clip
#10 x /”
3
4
screw
Figure 9
#10 x /”wood screw
3
4
