KI Concerto - Upright and Component Installation; Upright Installation - Standard Seating; Upright Installation - Seating with Power & Data

4
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Concerto
®
Seating with Power & Data
Assembly Instructions
Upright Installation - Standard
Concerto Seating
1. Begin installing the uprights to the
floor by aligning the holes in the
upright foot with the floor anchors.
Insert appropriate fasteners with flat
washers through to the floor. Do
not tighten any uprights down
at this time. Leave fastener loose
with head approximately
1
/
16
" from
contacting the foot of the upright
(Figure 1).
Upright Installation - Concerto
Seating with Power & Data
Note: For the following steps,
refer to the space-planning layout to
determine which uprights will have
full-height side covers. The uprights
at power infeed and data infeed
locations require these side covers,
which must use the appropriate
bottom side cover bracket or data
bracket. Row ends may also have
full-length covers specified.
1. Begin installing uprights to the floor
by placing the appropriate bottom
side cover bracket or data bracket
(when specified) over the mounting
holes in the upright foot. Orient
bottom side cover bracket so wire
routing hole is facing in toward the
seat on end-of-run uprights. Align
the holes in the upright foot (and
bracket if applicable) with the floor
anchors. Insert fasteners with flat
washers, through to the floor. Do not
tighten any uprights down at this
time. Leave fastener head loose with
approximately
1
/
16
" from contacting
the foot of the upright (Figure 1).
2. At locations specified for
full-height side covers, use a bracket
locating guide to center the bottom
side cover bracket both front-to-back
and side-to-side. Orient the locator
hole in the guide to the front of the
upright when centering. Tighten
the fasteners, securing the brackets
and uprights to the floor. Only
tighten full-height side-cover
uprights at this time. The other
uprights must only be tightened after
installation of seats.

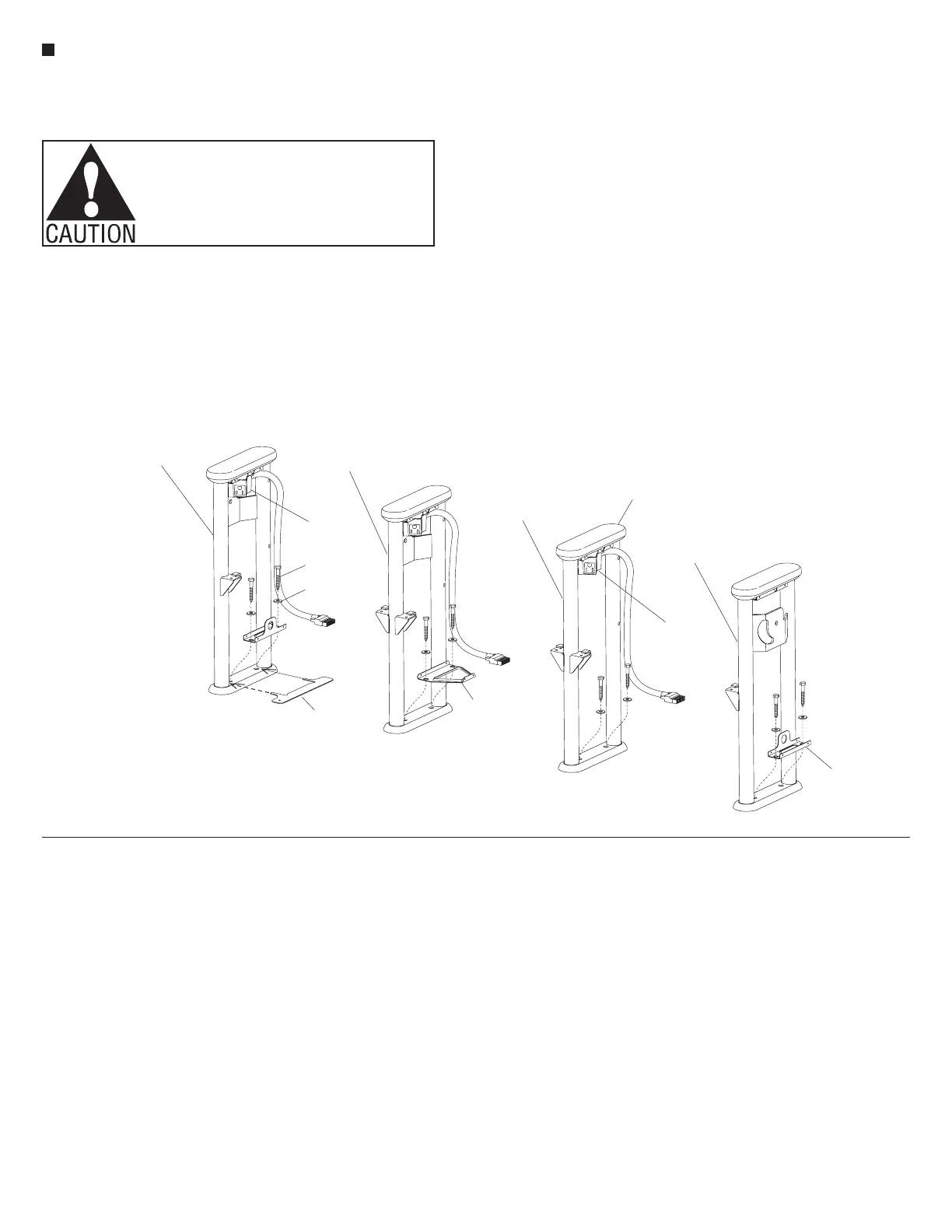

right-hand upright
(right-tablet option)
center upright
(right-tablet option)
simplex
receptacle box
simplex
receptacle box
floor fastener
flat washer
bracket
locating guide
data bracket
center upright
(no-tablet option)
armcap
left-hand upright
(left-tablet option)
bottom
side cover
bracket
Figure
1
