| KICHLER.COM
12
WARNING: To avoid possible electrical shock, be sure you have
turned o the power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring.
Use the wire connecting nuts supplied with your fan. Secure the
connector with electrical tape. Make sure there are no loose wire
stands or connections.
Step 1. Connect the fan supply (black) wire and light supply (blue)
wire to the black household supply wire as shown in Figure 11.
Step 2. Connect the neutral fan (white) wire to the neutral
household (white) wire.
Step 3. Connect the fan ground wire (green) to the household
ground wire.
Step 4. After connecting the wires, spread them apart so that the
green and white wires are on one side of the outlet box and black
wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into
the outlet box.

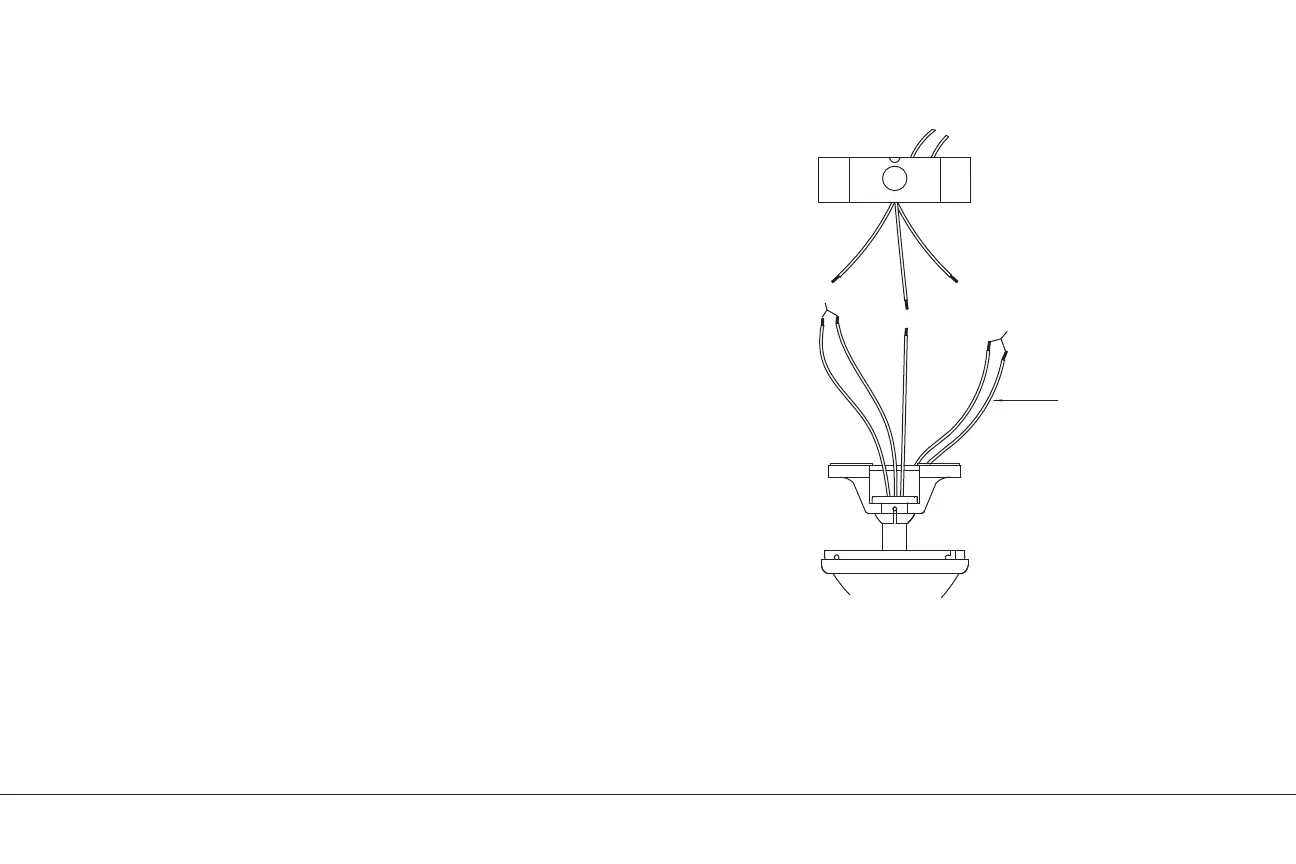

Fig. 11
ELECTRICAL CONNECTIONS
Black
Green or Bare
Outlet box
in the ceiling
White
Green
Black
Blue
Ground to
mounting bracket
or downrod
To Next Page
