52" Renew Select |
9
HANGING THE MOTOR ASSEMBLY
Standard Ceiling Installation
Step 1. Pass the 120-volt supply wires through the center hole in the
ceiling hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the ceiling outlet box with the
screws and washers provided with your outlet box.
Step 3. Remove the hitch pin, lock pin and set screws from the top of the
motor assembly.

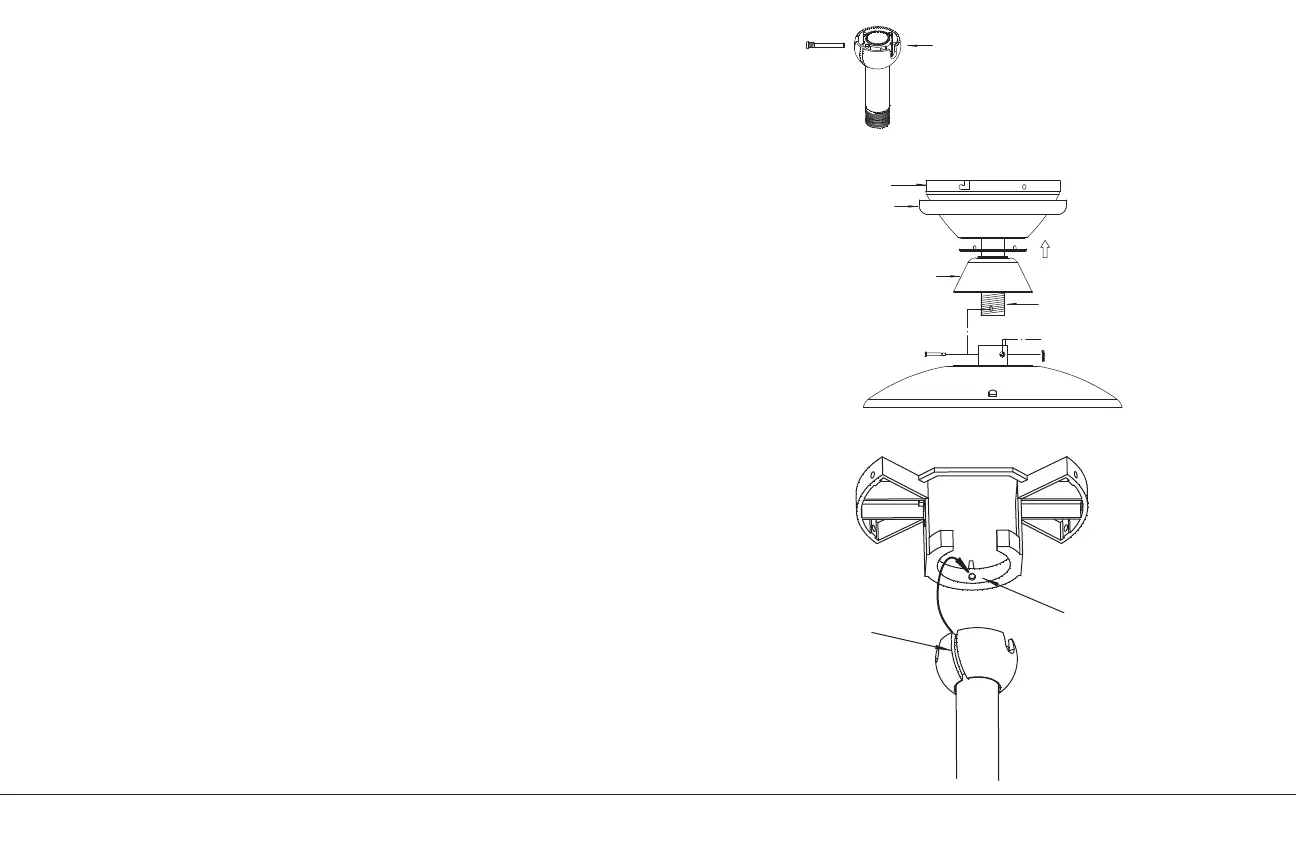

Step 4. Route wires exiting from the top of the fan motor through the
coupler cover, canopy cover, canopy, decoration ring and then through
the ball/downrod. (Fig. 6)
Step 5. Align the holes at the bottom of the downrod with the holes
in the collar on top of the motor housing (Fig. 6). Carefully insert the
hitch pin through the holes in the collar and downrod. Be careful not
to jam the pin against the wiring inside the downrod. Insert the locking
pin through the hole near the end of the hitch pin until it snaps into its
locked position.
Step 6. Tighten two set screws on top of the fan motor firmly. (Fig. 6)
Step 7. Place downrod ball into the hanger bracket socket. (Fig 7)
Fig. 6
Registration slot
Check tab
Locking pin
Set screws
Hitch pin
Ceiling canopy
Decoration ring
Coupler cover
Downrod
Cross pin
Hanger ball
Fig. 7
