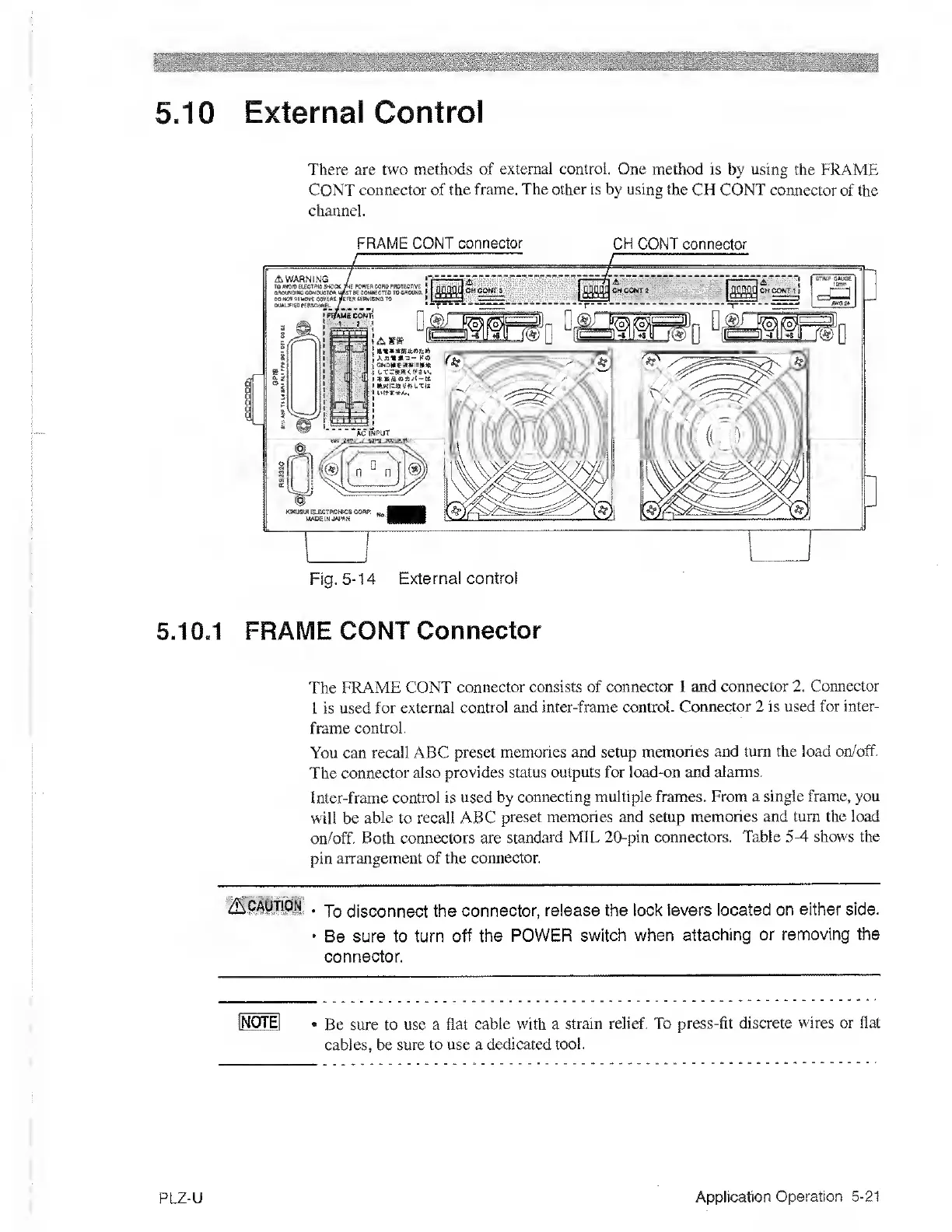

There are two
methods of
external control. One
method is by using
the FI^ME
CONT connector of
the frame. The other is by using the
CH CONT connector
of the
channel.
FRAME
CONT connector
CH
CONT connector
5.10.1 FRAME
CONT Connector
The
FRAME CONT
connector consists of
connector 1 and connector 2.
Connector
1 is used
for external
control and inter-frame control.
Connector 2 is used for
inter-
frame
control.
You can
recall ABC preset
memories and setup
memories and turn the load
on/off.
The
connector also
provides status outputs for load-on and
alarms.
Inter-frame
control is used by
connecting multiple frames. From
a single frame, you
will be
able to recall ABC
preset memories and setup
memories and turn the
load
on/off.
Both connectors
are
standard
MIL
20-pin connectors. Table
5-4
shows the
pin
arrangement of the
connector.
.
To
disconnect the
connector, release the
lock levers located
on either
side.
'
Be sure to turn
off the POWER
switch when
attaching or
removing the
connector.
•
Be sure to use
a flat
cable
with a
strain relief. To
press-fit discrete
wires or flat
cables, be sure
to use a dedicated
tool.
