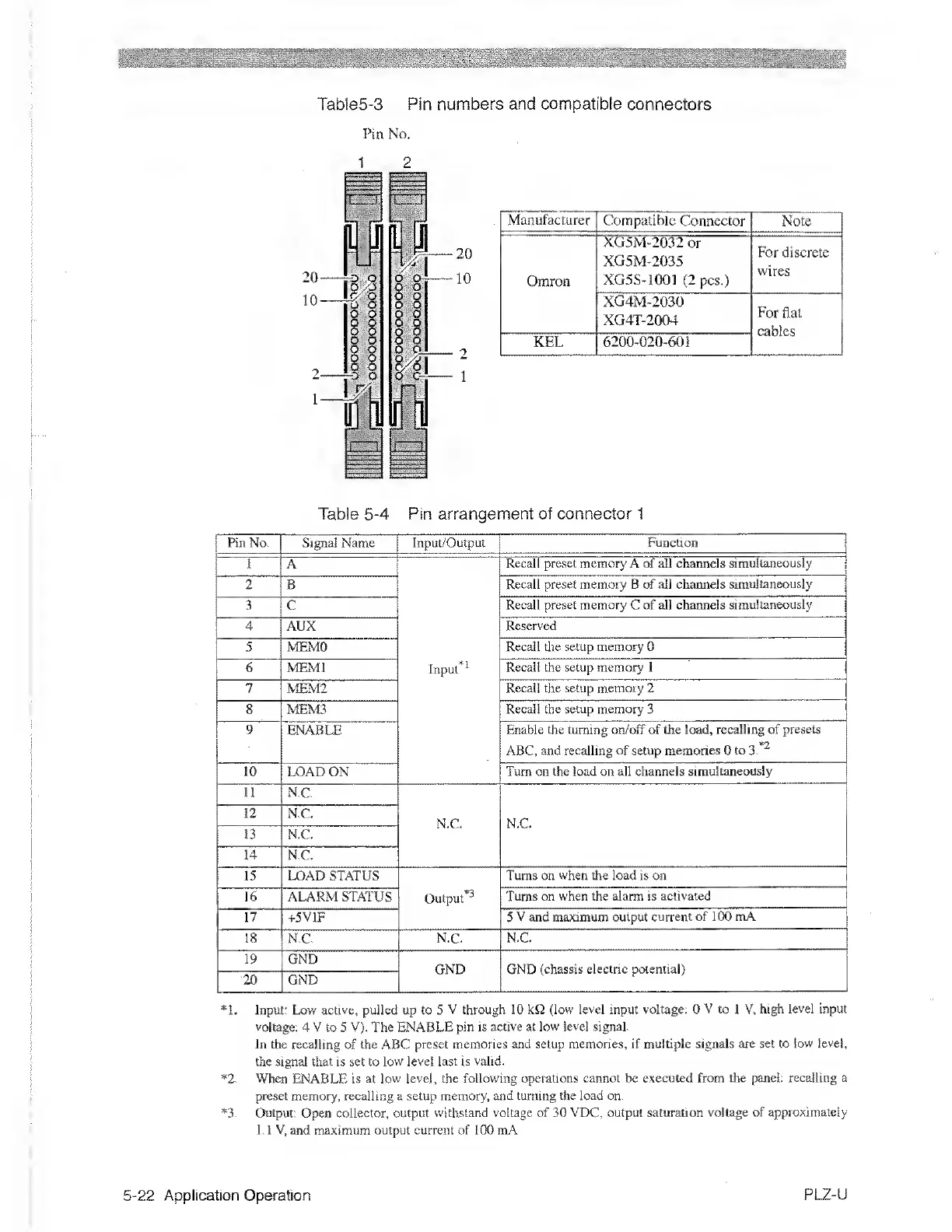

Table5-3 Pin
numbers and compatible connectors
Pin No.
1 2
Manufacturer
Compatible
Connector Note
Omron
XO5M-2032
or
XG5M-2035
XG5S-1001
(2
pcs.)
For discrete
wires
XG4M-2030
XG4T-2004
For fiat
cables
KEL
6200-020-601
Table
5-4
Pin
arrangement of connector 1
Rn No. Signal Name Input/Output
Function
A
Input*
^
Recal
1
preset
memory A of all channels
simultaneously
2 B
Recall preset memory B of all channels
simultaneously
3 C
Recall
preset
memory C of all channels
simultaneously
4 AUX
Reserved
5 MEMO
Recall the setup memory 0
6 MEMl
Recall the setup memory I
7 MEM2
Recal! the setup memory 2
8 MEM3
Recal!
the setup memory
3
9
ENABLE
Enable the turning on/off
of
the load, recalling of
presets
ABC, and
recalling of
setup
memories
0
to
3.*^
10 LOAD ON
Turn on the load on all channels
simultaneously
11 N.C.
N.C
N.C
12
N.C
13 N.C
14
N.C.
15 LOAD STATUS
Output*^
Turns on when the load is on
16 ALARM STATUS
Turns on when the alarm is
activated
17
+5VIF
5
V and maximum output
current of 100 mA
18
N.C
N.C N.C
19
GND
GND GND
(chassis electric potential)
20 GND
*1.
Input: Low active, pulled up to 5
V through 10 kQ (low
level
input voltage: 0 V
to
1 V,
high
level
input
voltage:
4 V to 5 V). The ENABLE
pin is active at
low level signal.
In the recalling
of
the
ABC
preset memories and setup
memories,
if
multiple signals are set to
low level,
the signal that is set to
low level last is valid.
*2.
When
ENABLE is
at low level, the following operations
cannot
be
executed from the panel: recalling a
preset memory, recalling a setup memory, and turning the
load
on.
*3.
Output:
Open collector, output
withstand voltage of 30 VDC, output saturation
voltage of approximately
1.1 V, and maximum output current of iOO mA
5-22
Application Operation
PLZ-U
