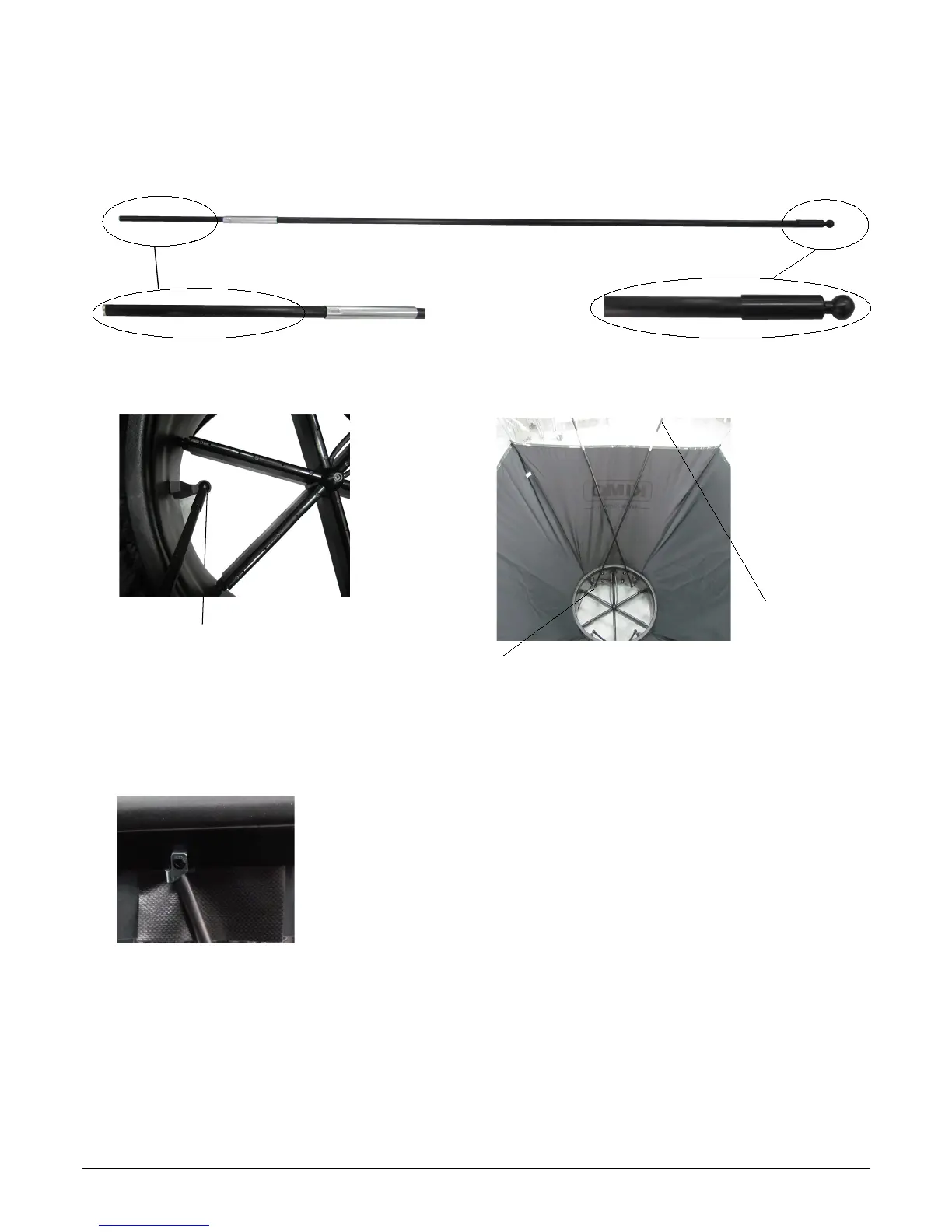

3.3. Setting of rods
➢ Maintain the hood with the base and put the four rods inside.
➢ Take a rod and insert the rounded end of the rod in the reception holding cup of the base.
➢ Slightly bend the rod and insert the flat end of the rod on the opposite corner of the holding cup. The crossing rods
must be on the same plan as the KIMO logo.
➢ Proceed the same way for the three other rods.
For the 1020 x 1020 mm, 1320 x 720 mm and 1520 x 420 mm length frames, the
plastic supple protections on the hood must be positioned in front of the cups on the
frame.
Mounting the airflow meter 11
Rounded end in the
holding cup
Rounded end in
the holding cup
Flat end in the
opposite corner
Rod
Flat end Rounded end
