Kinematica POLYTRON PT 1300 D - Appendix: Control with Rs-232-Interface

OI PT 1300 D English / Edition 3.0 / 23.10.2009
Page 31 of 37

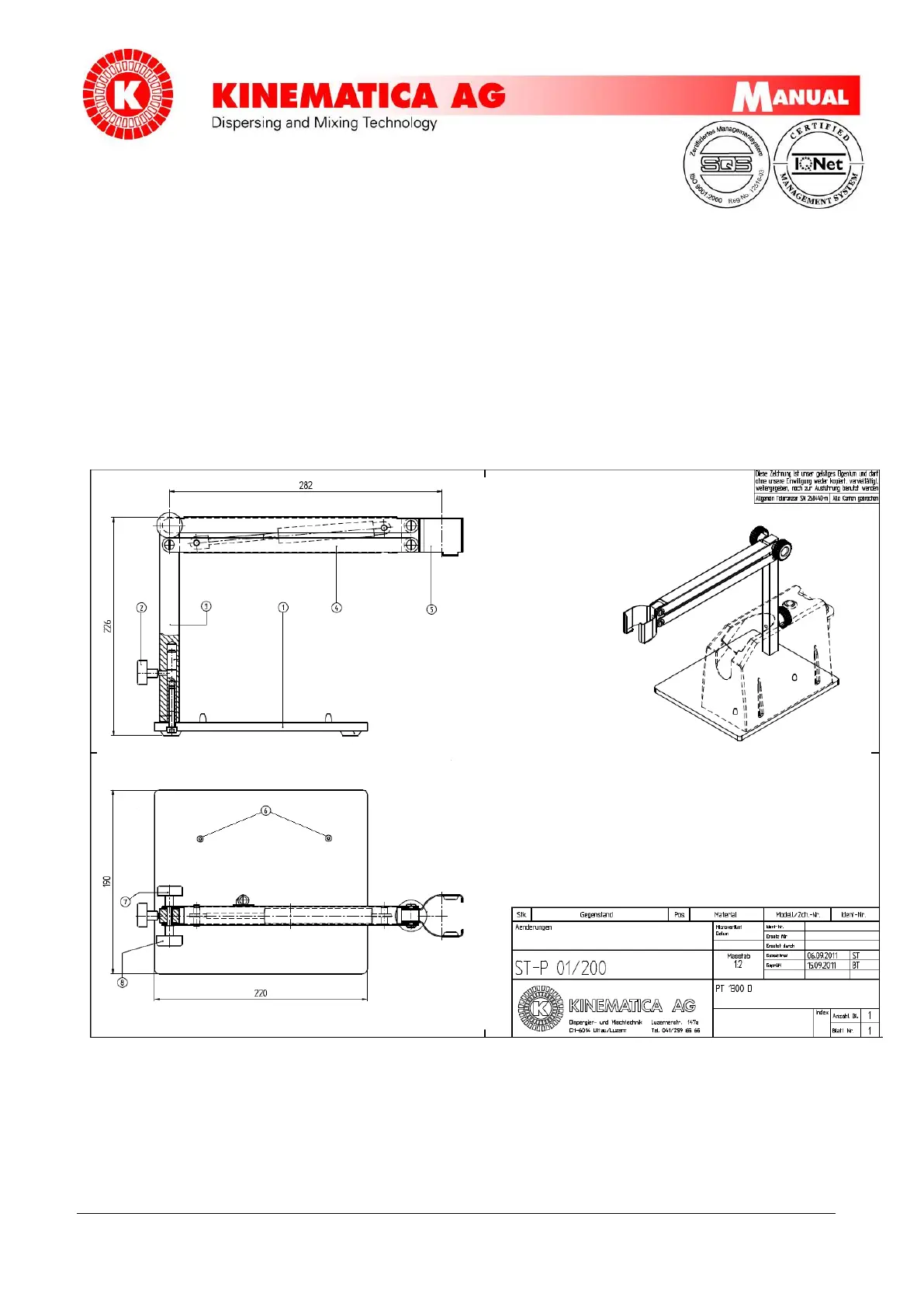

10.2 LEGEND FOR THE STAND ST-P01/200
1. Base plate
2. Mounting screw
3. swivel arm
4. arm
5. Handheld holder
6. Base Station centering
7. Arm Fixation
8. Arm Fixation
