OI PT 1300 D English / Edition 3.0 / 23.10.2009

Page 33 of 37

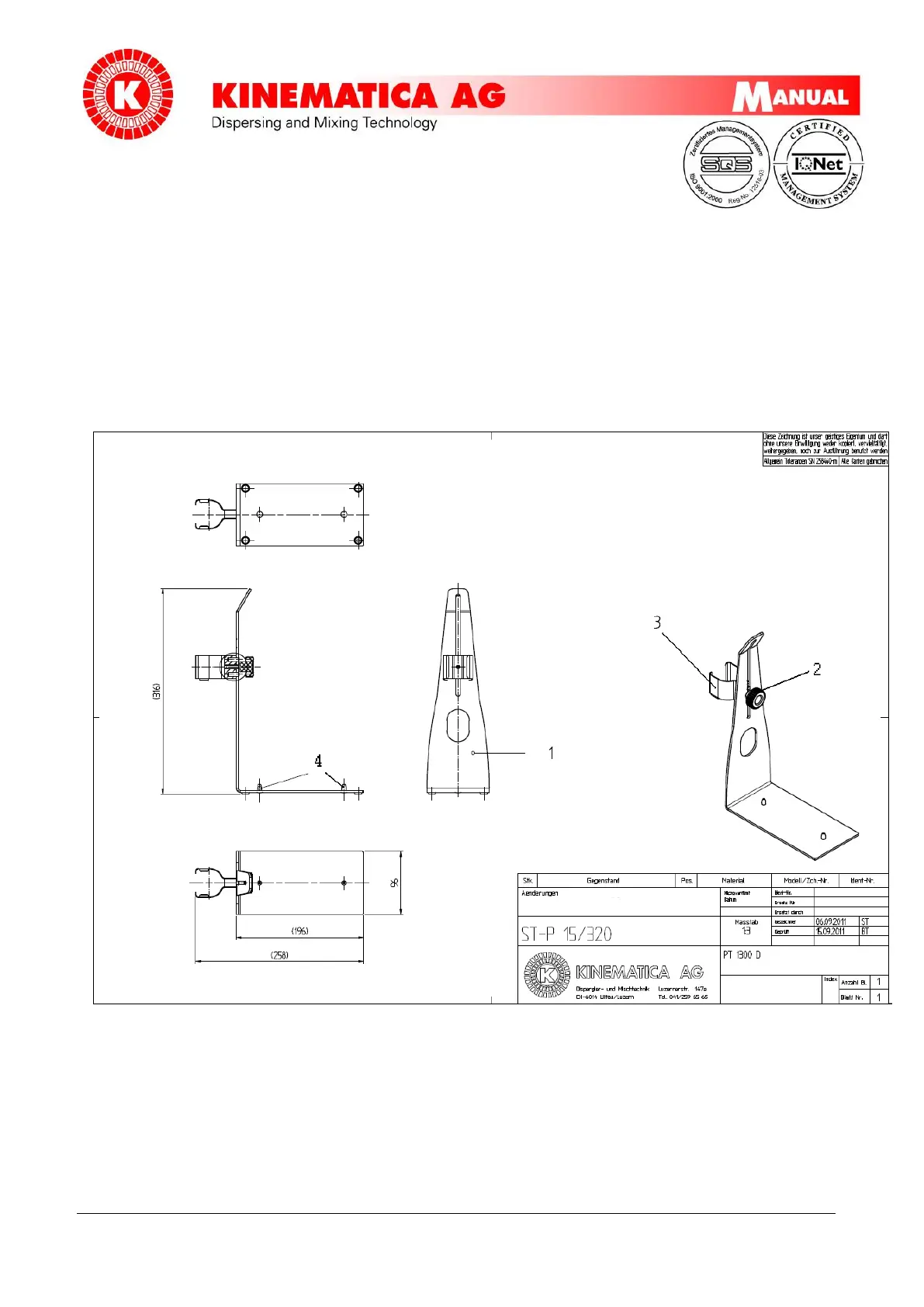

10.4 LEGEND FOR THE STAND ST-P15/320

1. Stand plate

2. Fixation screw

3. Drive holder

4. Base Station centering
