Kinetec Breva - Description

Breva EN 5/20

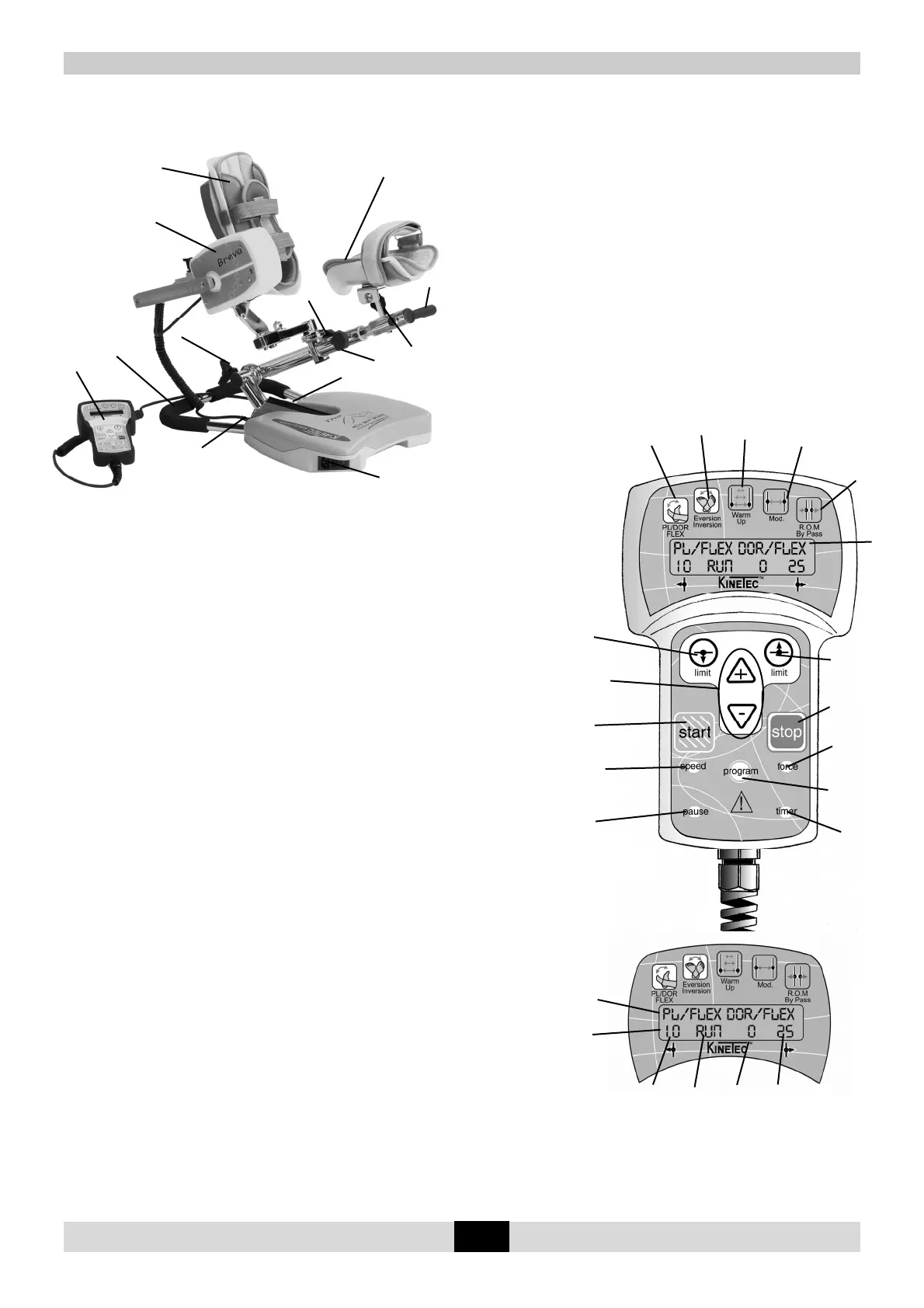

9. Description
The device KINETEC
®
Breva is a portable, one-piece device.
It consists of the following components:
1 • Calf support
2 • Calf support setting lock
3 • Lower limb setting lock
4 • Motor position setting lock
5 • Motor
6 • Foot support
7 • Bed or chair position setting lock
8 • Position handle
9 • Transport handle
10 • Hand control
11 • ON/OFF switch
12 • Motor connector
13 • Hand control connector
14 • Liquid-crystal display (2 lines of 16 characters)
15 • BYPASS mode key
16 • MODULATION key
17 • WARM UP key
18 • Eversion / Inversion key
19 • Plantar flexion/dorsiflexion key
20 • Upper limits setting
21 • Lower limits setting
22 • Increase / decrease keys
23 • START key
24 • STOP key
25 • FORCE key
26 • SPEED key
27 • PAUSE key
28 • TIMER key
29 • PROGRAM access key
Display Details:
A • 16-character line, used to display various messages when
starting up the machine, then the type of movement during
operation.
B • 16-character line, used to display various messages when
starting up the machine; then it displays the operational
parameters.
C • 3-character area showing the lower limit.
D • 4-character area showing various messages: RUN, STOP,
EXT, FLEX …
E • 3-character area showing the real-time angle of the knee;
this value changes with the current movement.
F • 3-character area showing the upper limit.
2
3
4
5
6
7
9
10
8
11
12
13
1
14
15
16
17
18
19
21
22
23
26
27
28
29
25
24
20
FE
D
C
B
A
