Installation

Installation Instruction

Instruction

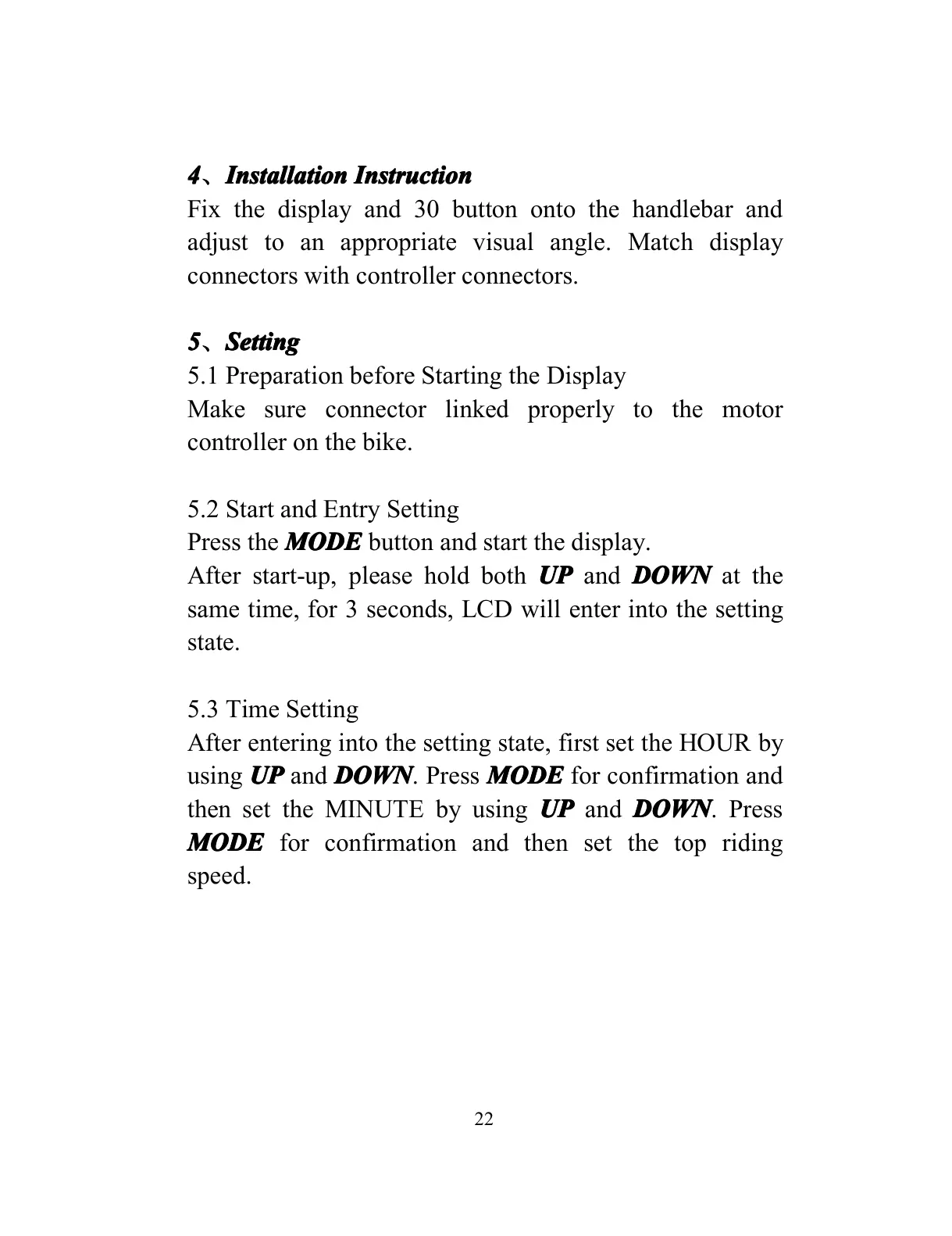

Fix the display and 30 button onto the handlebar and

adjust to an appropriate visual angle. Match display

connectors with controller connectors.

、

Setting

5.1 Preparation before Starting the Display

Make sure connector linked properly to the motor

controller on the bike.

5.2 Start and Entry Setting

Press the MODE

MODE

MODE button and start the display.

After start-up, please hold both UP

UP and DOWN

DOWN

DOWN at the

same time, for 3 seconds, LCD will enter into the setting

state.

5.3 Time Setting

After entering into the setting state, first set the HOUR by

using UP

UP and DOWN

DOWN

DOWN . Press MODE

MODE

MODE for confirmation and

then set the MINUTE by using UP

UP and DOWN

DOWN

DOWN . Press

MODE

MODE for confirmation and then set the top riding

speed.
