King-Meter N5236 - 8. Wire Sequence

The single trip clearance setting interface
8.Wire Sequence
Note: The following is only an example. The actual
product shall be subject to customer requirements.
Connecting end with controller

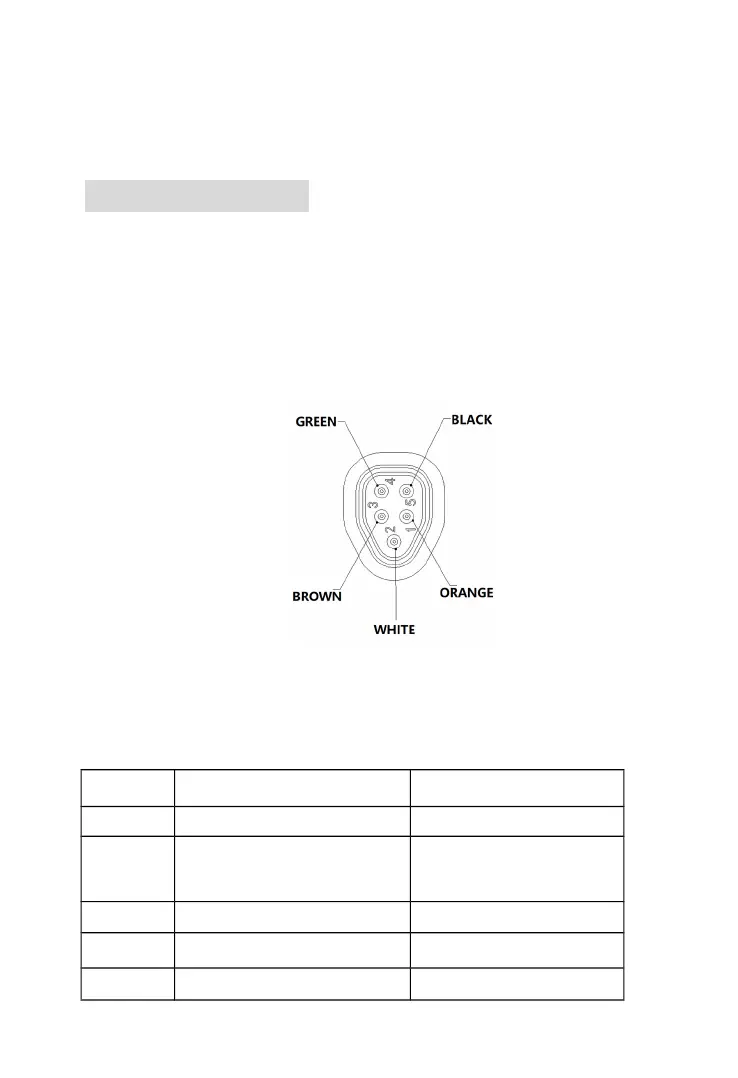

Standard connector wire sequence table (BAFANG)
25
Standard
Wire
Color of standard Wire Function
1 Brown（VCC（ Power wire of display
2 Orange(K) Power control wire of
controller
3 Black(GND) Ground wire of display
4 Green(CANH)
Communication wire 1
of instrument
5 White(CANL)
Communication wire 2
of instrument
