19742.892 | 11.50
EN

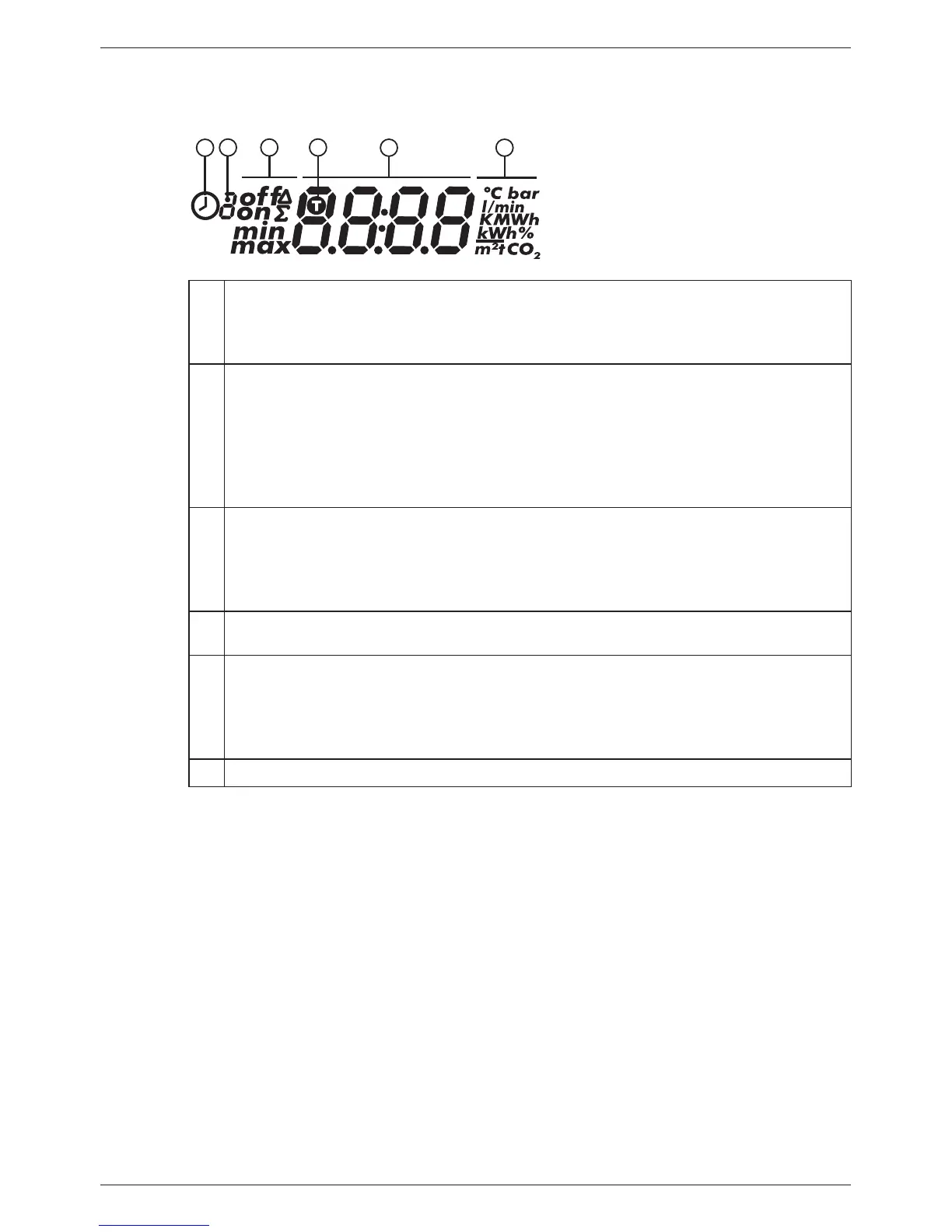

5.2.5 Operational and setting values
The display of the operational and setting values ( in Fig. 8) consists of the following
elements:
1
2
3
5
6
4
Symbol for time control of functions. This symbol is displayed when:
• a time restriction / control has been set,
• the status of time restriction/control is displayed,
• the time restriction blocks a temperature control (symbol flashes).
Number of the time window that is currently being set/displayed or within which
the current time lies.
The time control of a function consists of 1 to 3 configurable time windows.
Example:
Time window 1 06:00 – 08:00
Time window 2 11:00 – 12:30
Time window 3 17:00 – 19:00
Additional information
on, off: Switching state/condition on, off
max, min: Maximum value, minimum value
Σ: Summed operational value since first commissioning, cannot be reset
Δ: Summed operational value since last reset to 0
Symbol is displayed when a temperature sensor is selected when setting a func-
tion.
Display of:
• Measurements
• Settings
• Error codes
• Additional information, e.g. software version
Physical unit of the value displayed in : °C, K, l/min, %‚ h, kWh, MWh, tCO
2
