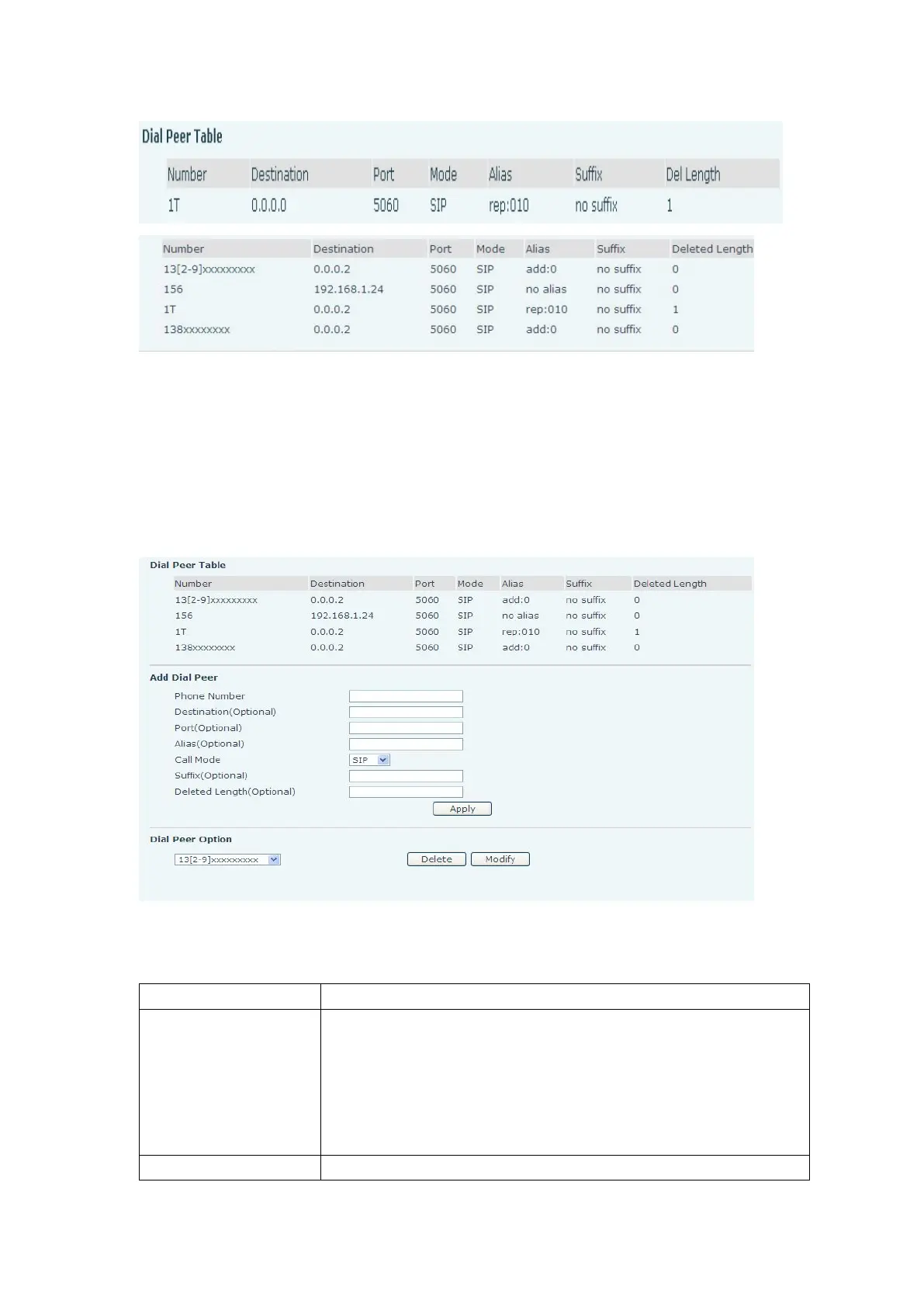

Example 3: Addition – Two examples are shown. In the first case, it is assumed that 0 must
be dialed before any 11 digit number beginning with 13. In the second case, it is assumed
that 0 must be dialed before any 11 digit number beginning with 135, 136, 137, 138, or 139.
Two different special characters are used.
x – Matches any single digit that is dialed.
[] – Specifies a range of numbers to be matched. It may be a range, a list of ranges separated
by commas, or a list of digits.
There are two types of matching: Full Matching or Prefix Matching.
In Full matching, the entire phone number is entered and then
mapped per the Dial Peer rules.
In prefix matching, only part of the number is entered followed by
T. The mapping with then take place whenever these digits are
dialed. Prefix mode supports a maximum of 30 digits.
