縫線種類不同各有不一樣的伸縮性，很容易造成跳針、斷線、線跡不穩定等問題，本縫機有針線揚線
臂、前導線桿、後導線桿輔助張力控制板等，用來控制縫線的收放量以及穩定縫線的伸縮性。
DIFFERENT THREADS HAVE DIFFERENT STRECTCH TENSION AND CAUSE SKIP STITCHING THREAD
BREAKING AND UNSTABLE STITCHING EASILY. THIS MACHINE EQUIPPED WITH THREAD TAKE-UP,
FRONT NEEDLE THREAD GUIDE, REAR THREAD GUIDE AND AUXILIARY THREAD TENSION CONTROL
GUIDE IN ORDER TO GIVE LETTER CONTROL OF THE LOOPER THREAD TAKE-UP AND STABLIZE THE
STRECTCHING OF LOOPER THREAD.
鬆
針線揚線臂
某些種類的線在針窩上不容易造出線環，結線鉤在挑線時容易造成失
誤，這時候可以把針線通過輔助張力控制板來穩定縫線。(圖 I )
SOME TIMES, IT IS NOT SO EASY TO MAKE LOOP FOR SOME KINDS OF
THREAD AND ALSO MAKE IT DIFFICULT FOR LOOPER TO CATCH THE
NEEDLE THREAD,CAUSING SKIP STITCH. IN SUCH CASE,CAN USE
AUXILIARY THREAD TENSION CONTROL GUIDE TO STABLIZE THE THREADS.
下表列出進給率與差動比的相互關係
THE RANGE OF DIFFERENTIAL RATION VARIES ACCORDING TO THE STITCH LENGTH.
REFER TO THE TABLE BELOW
STITCH LENGTH
MAX. NORMAL DIFF
MAX. REVERSE DIFF
G,H 針線揚線臂，後導線桿在出廠時安裝在標準位置如附圖所示，必要時可依箭頭方向調整(圖 G,H )
G,H THE THREAD TAKE-UP AND REAR THREAD GUIDE WERE SET AT STANDARD POSITION BEFORE
SHIPMENT.AS SHOWN ON FIGURE G/H. AND ALSO CAN BE ADJUSTED AS ARROW DIRECTIONS IF
NECESSARY.
9
進給率
最大伸縫比}
最大縮縫比}
3.6MM
2.5MM
2.0MM
1.4MM
1 ： 1.2
1
： 1.6
1
： 1.8
1
： 2.0
1 ： 0.7
1 ： 0.7
1 ： 0.7
1 ： 0.7

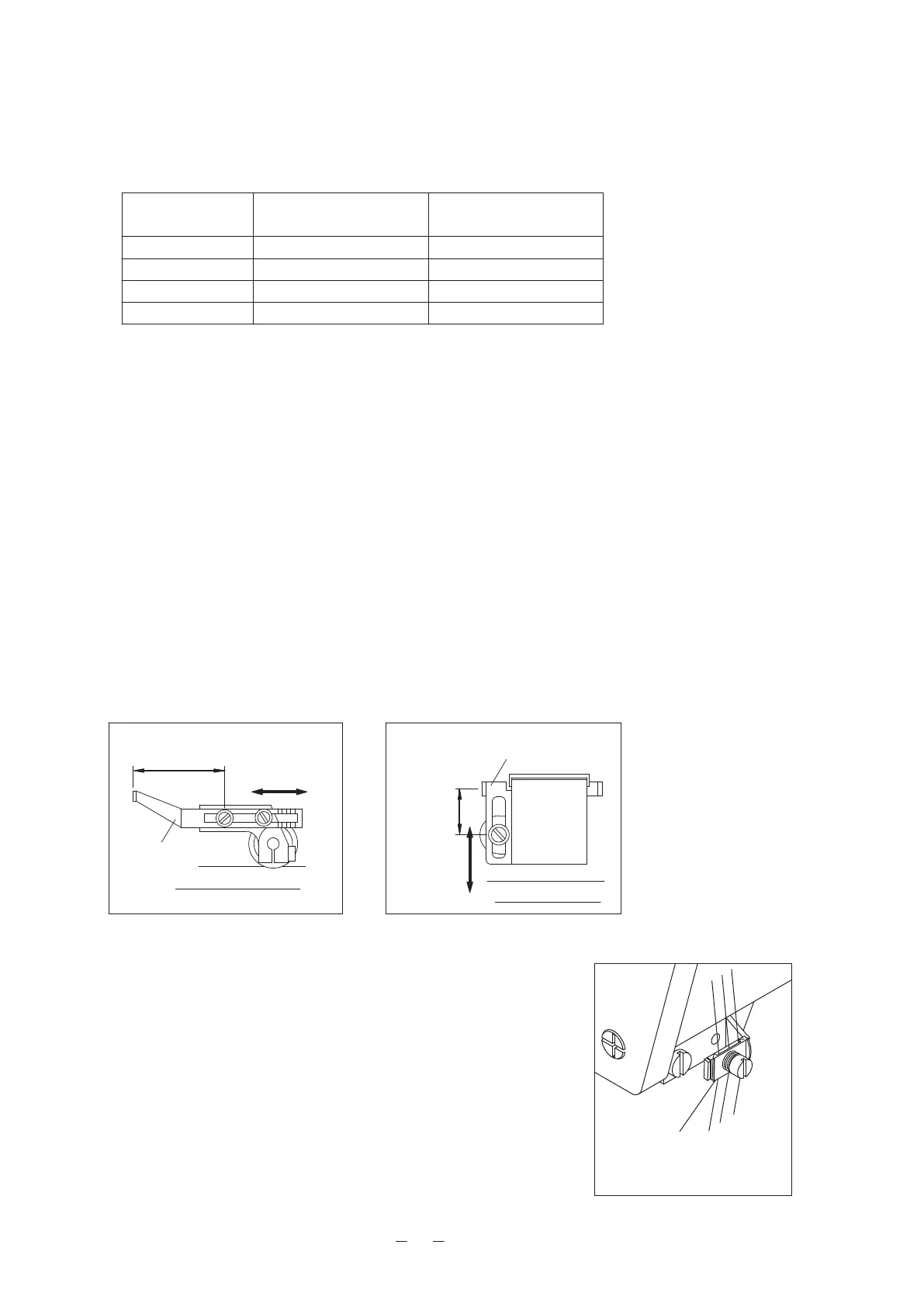

5-5 針線收放量調整 ADJUSTING THE NEEDLE THREAD TAKE-UP
AUX. THREAD TENSION
CONTROL GUIDE
H
緊
緊}
鬆
後導線桿
TIGHT
LOOSE
TAKE-UP
REAR THREAD
GUIDE
LOOSE
TIGHT
52mm
8mm
輔助張力控制板
圖
G圖
圖 I
