Kioti CS2510H - Instrument Panel; View

4
-
10
CS2510H/CS2610H
INSTRUMENT PANEL
VIEW

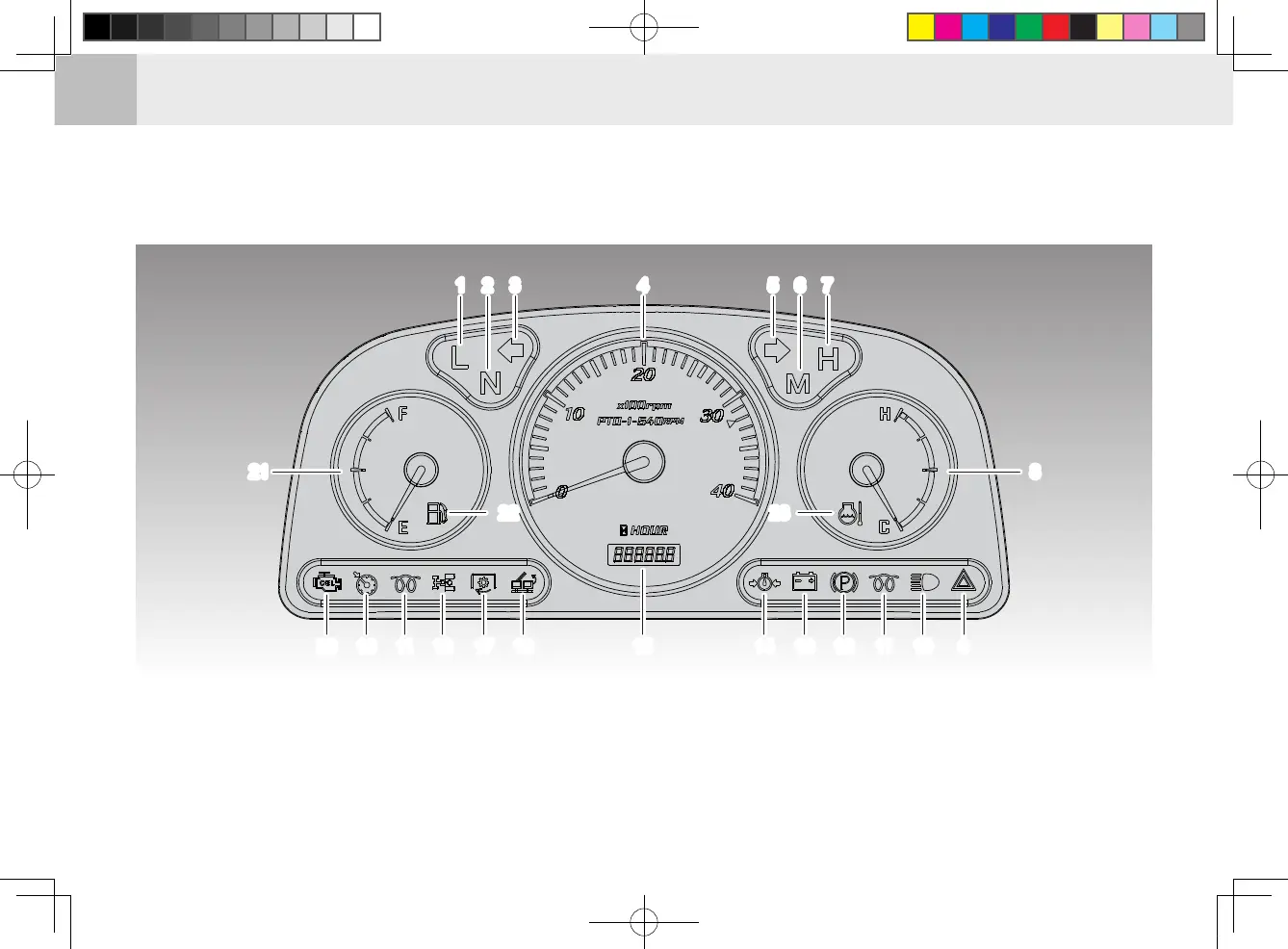

Symbols on the instrument panel come on when the key switch is turned to the “ON” position.
(1) Low Speed Indicator
(2) Neutral Indicator
(3) Turn Signal Light (LH)
(4) Tachometer
(5) Turn Signal Light (RH)
(6) Mid Speed Indicator
(7) High Speed Indicator
(8) Coolant Temperature Gauge
(9) Hazard Lamp
(10) High Beam Indicator
(11) Glow Plug Indicator
(12) Parking Brake Indicator
(13) Battery Charge Warning Lamp
(14) Engine Oil Pressure Warning Lamp
(15) Hour Meter
(16) Brake (One Side) Lamp
(17) P.T.O Indicator
(18) 4WD Engaged Indicator
(19) Cruise Indicator
(20) Engine Check Warning Lamp
(21) Fuel Gauge
(22) Low Fuel Level Warning Lamp
(23) Engine Overheat Warning Lamp
1 2 5 6 7
91011111920
21
2322
8
121314161718 15
3 41 2 5 6 7
91011111920
21
2322
8
121314161718 15
3 4
