REPLACING TRANSMISSION FLUID AND FILTER (M)
The transmission fluid should be
changed if it is contaminated or after
the transmission is serviced.
When changing the transmission uid,
make sure to change the uid lter.
However, replace only the lter after
initial 50 hour operation.

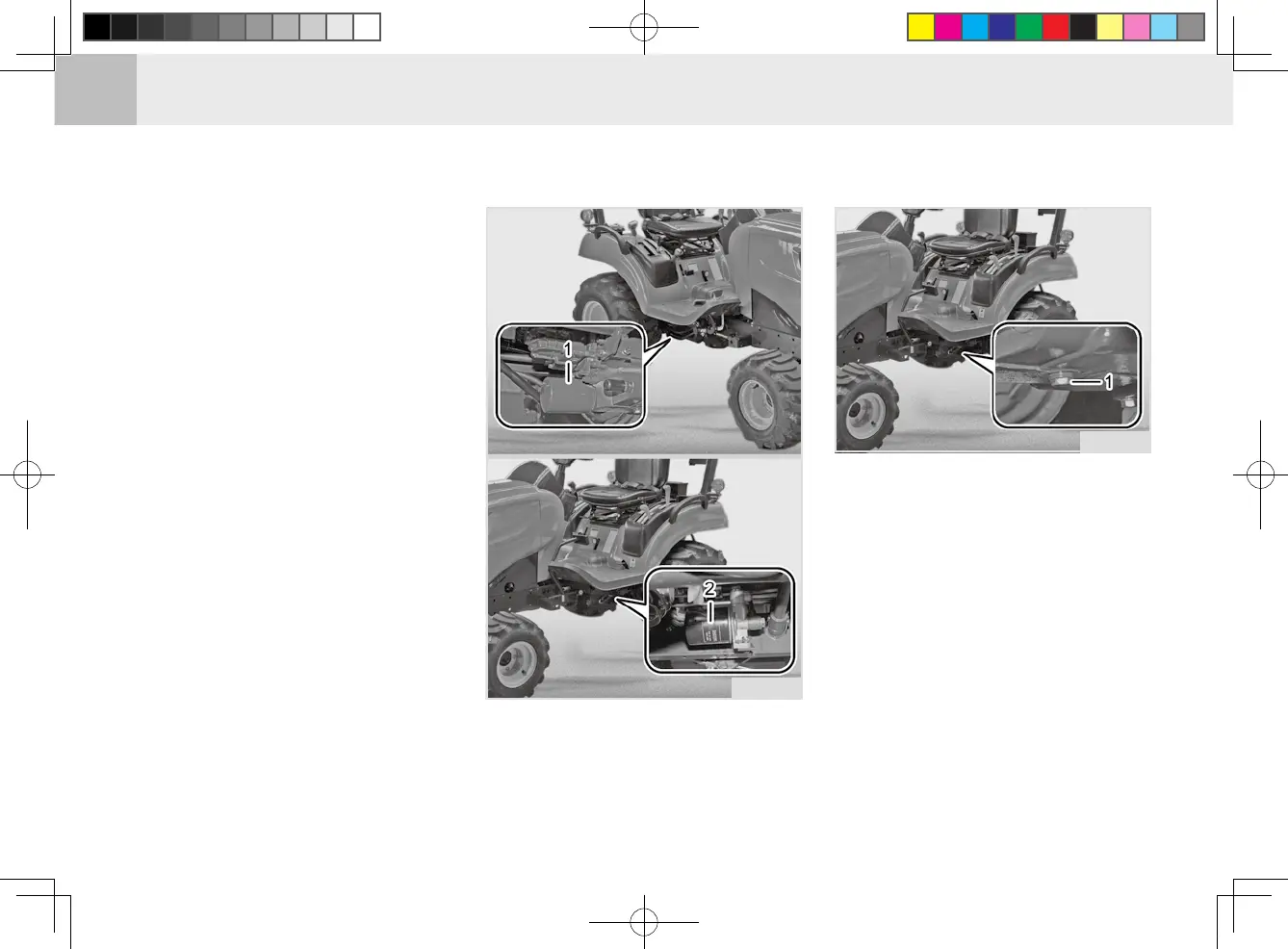

(1) Oil Filter Cartridge
(2) HST Hydraulic Filter Cartridge
M46O713A
1. Park the tractor on a level ground
and start the engine to warm it up.
2. Stop the engine, apply the parking
brake, and remove the drain plug.
3. To drain the used uid, place the oil
pan under the transmission case
and turn the drain plug counterclock-
wise to drain the uid completely.
If the uid does not ow out freely,
unscrew the plug on the side of the
hydraulic cylinder on the left of the
top link bracket to facilitate drain-
age.
4. Unscrew the uid lter from the rear
right section on the tractor using a
lter wrench.
(1) Drain Plug
M46O714A
To Next Page
