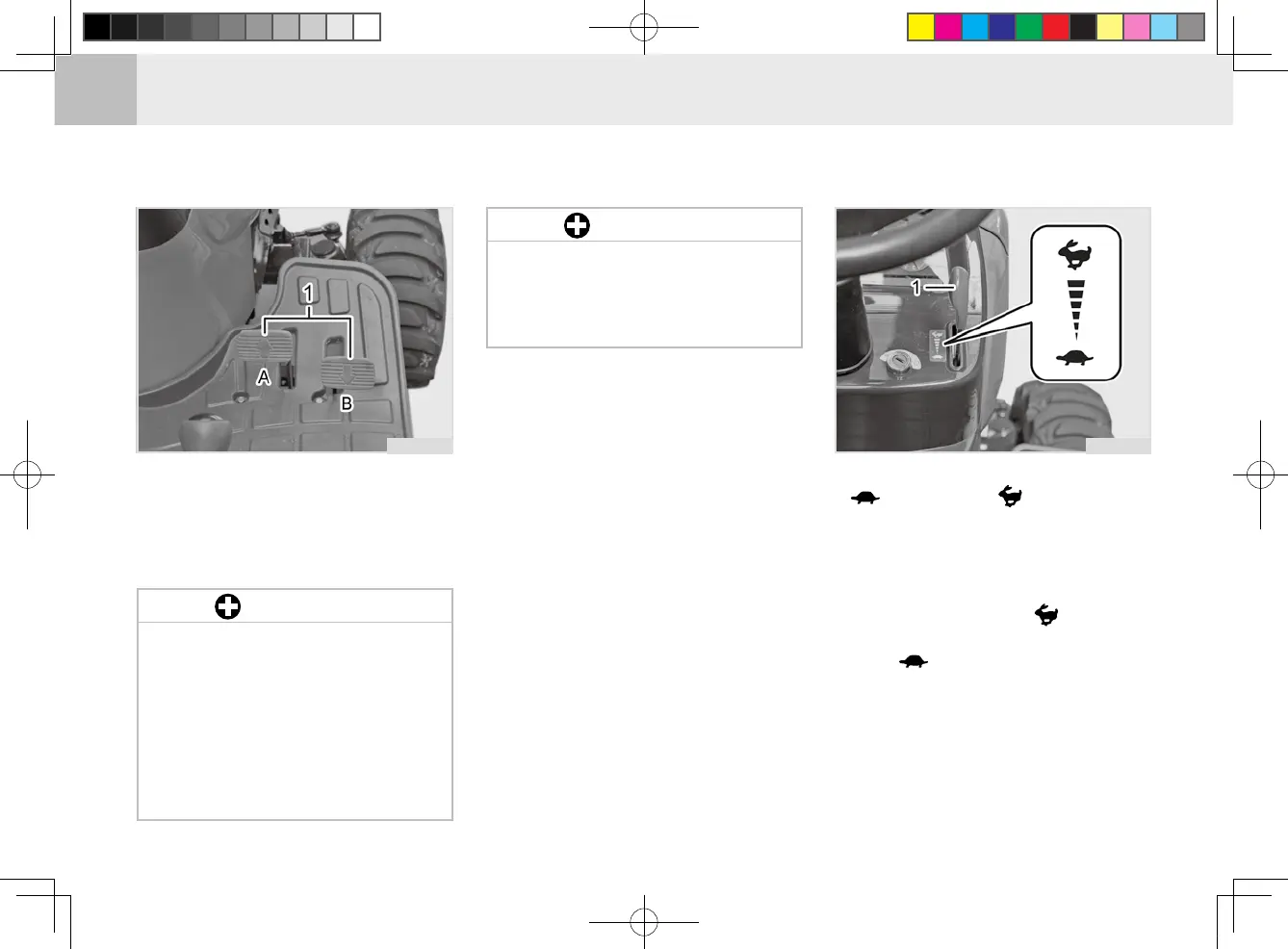

FORWARD/REVERSE DRIVING PEDALS
(1) Forward/
Reverse Driving Pedals
(A) Forward (B) Reverse
"Unlike a gas pedal, these for-
ward/reverse driving pedals-
act like a main speed shift in a
mechanical tractor." Therefore,
depress them deeper to obtain
higher speed with lower torque
and release them to obtain lower
speed with higher torque.
IMPORTANT
Left pedal is for forward driving and
right pedal is for reverse driving.
For heavy load job, such as
front end loader operation,
use low speed of the range
shift lever.
IMPORTANT
M46O432A
HAND THROTTLE LEVER
M46O431A
(1) Hand Throttle Lever
Decrease Increase
The hand throttle lever is to control
the engine rpm. The engine acceler-
ates to its full speed by pulling the
hand throttle lever ( position)
completely out while pushing the
lever ( position) decelerates the
engine.
The hand throttle lever is mainly
usedwhileworkinginaeld.
To Next Page
