3-POINT HITCH IMPLEMENT OPERATION

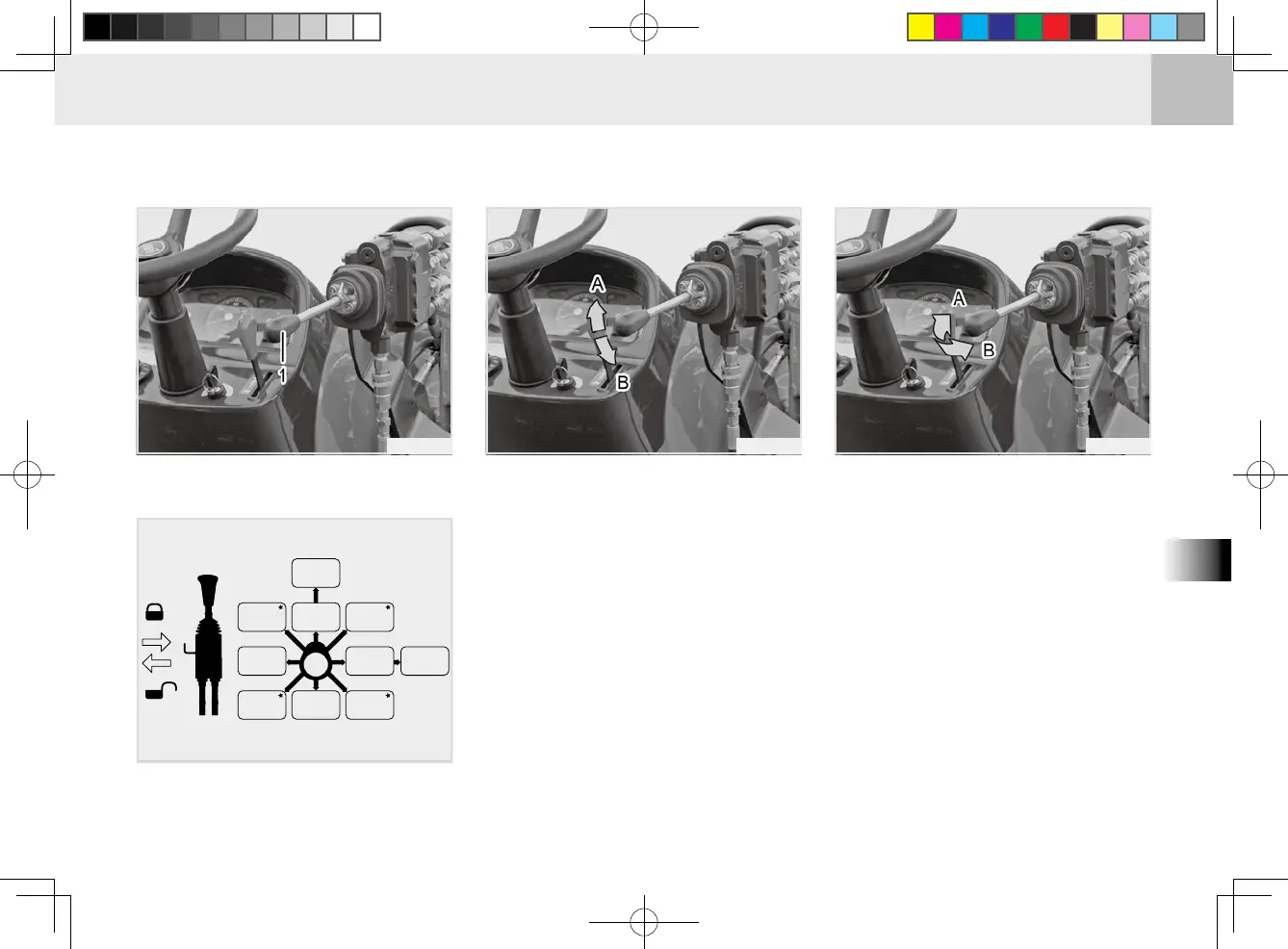

1. Up and down of boom
Pulling the joystick lever back (B)
lifts the boom of the loader while
pushing it forward (A) lowers the
loader boom.
(A) Boom Down (B) Boom Up
2. Roll back & dump
“Roll back” means that the bucket
scoops up. To operate this func-
tion, move the joystick lever to
the left (A). Dump means that
the bucket dumps. To operate this
function, move the joystick lever to
the right (B).
(A) Bucket Roll Back (B) Bucket Dump
M46O608A M46O609A
JOYSTICK LEVER
M46O607A
(1) Joystick Lever
M32O603A
FLOAT
DOWN
N
DOWN &
ROLLBACK
UP
ROLLBACK
DUMP REGEN
UP &
ROLLBACK
UP &
DOWN
DUMP &
DOWN
