Do not leave the tractor with the
boom "OFF" the ground in any
circumstances. If it is neces-
sary, lock the joystick.
When the joystick lever is not
in use, lock it since the imple-
ment can fall down if the lever
is operated accidently.
WARNING
If the boom or bucket is not
operating, properly, lower the
bucket onto the ground, stop
the engine, and relieve all hy-
draulic pressure. Then, check
all the hydraulic connections
and connect them again.
Before connecting or disconnect-
ing the hydraulic hose coupling
from the loader, lower the boom
onto the ground, stop the en-
gine, and move the joystick lever
front and back, left and right for
several times to remove residual
pressure in the hydraulic hose.
IMPORTANT
To avoid accidents:
Pressurized diesel fuel or hy-
draulic fluid may be sprayed
on your skin or eyes, leading to
a severe injury or even death.
To check leakage, use a board
and wear protective gloves
and goggles.
If your eyes come into contact
with the hydraulic fluid, see
your doctor immediately.
Never try to disconnect the
tube and quick coupler while
the tractor and implement are
in operation. Release the pres-
sure by operating the lever
after the engine is stopped.
WARNING

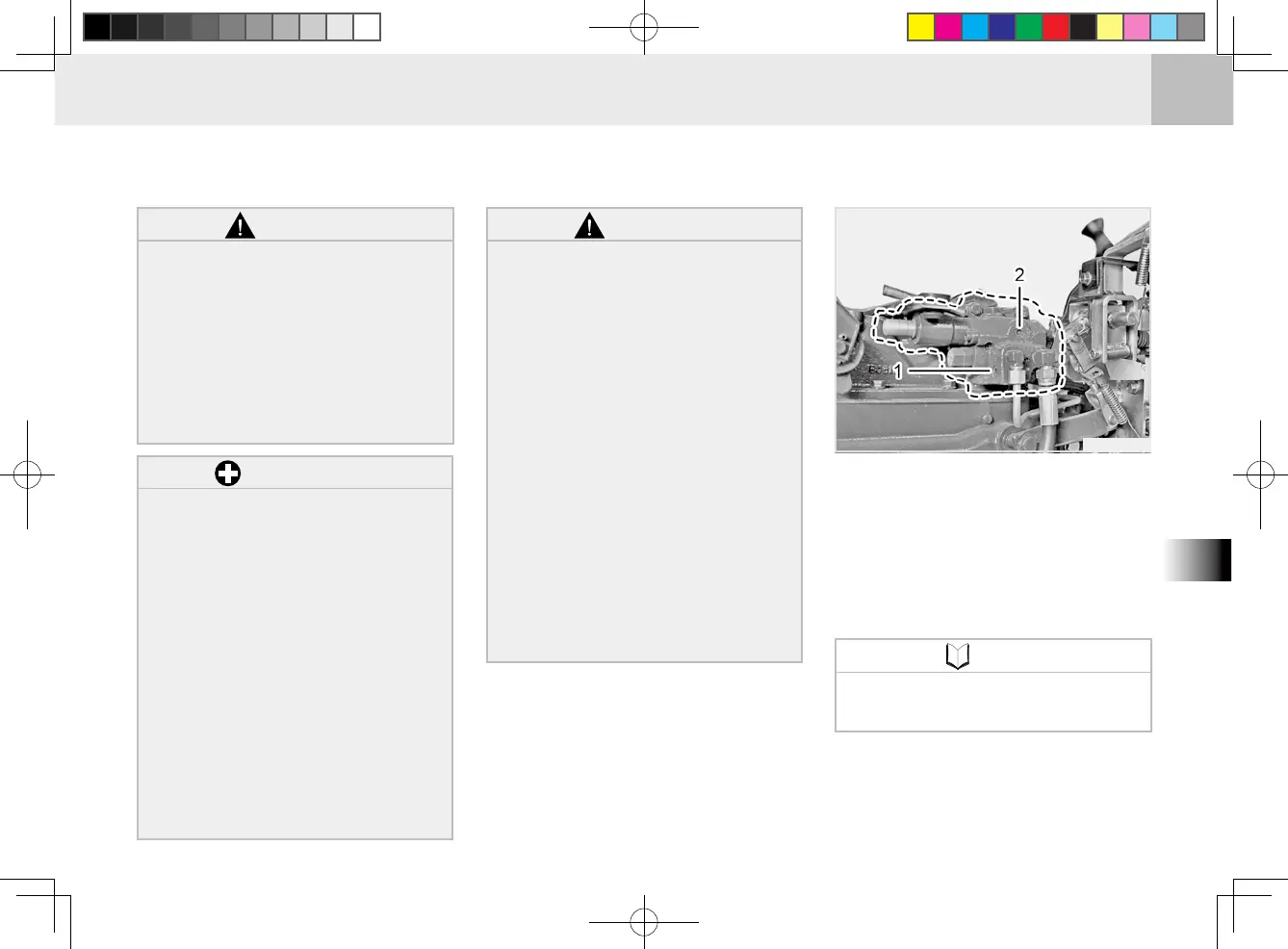

M46O618A
Unscrew the plugs P1 and P2 of the
HPL valve and connect the connec-
tor to engage with the hydraulic hose
of the loader control valve.
(1) OUT (P2 Port: To Implement`s Control Valve)
(2) IN (P1 Port: From Implement`s Control Valve)
HPL VALVE
Refer to option manual for de-
tailed assembly instructions.
NOTE
To Next Page
