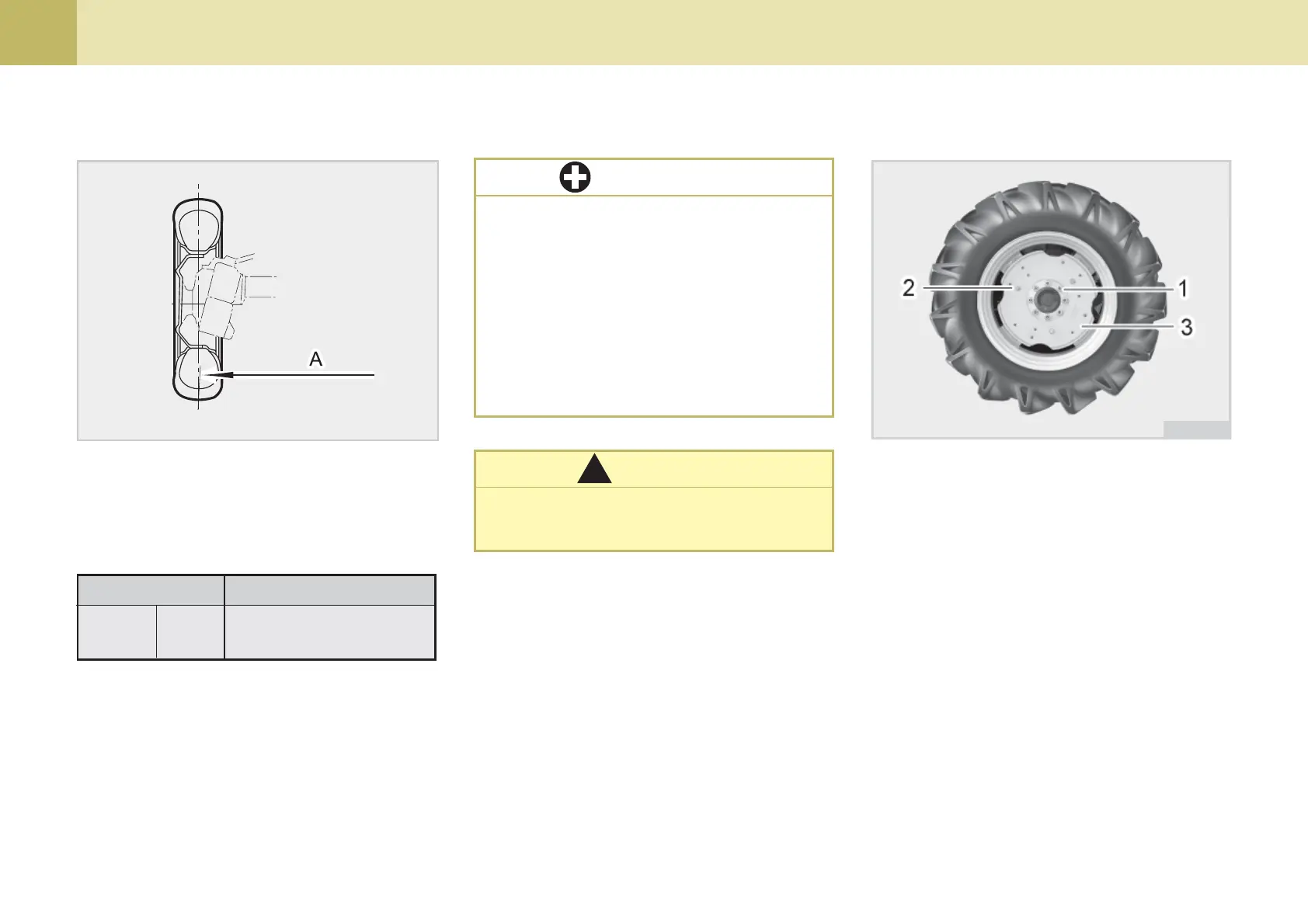

Front axle is not adjustable. Check and
tighten as instructed.
FRONT WHEELS
Model
AG
Tread (A)
57.87 in.
(1,470 mm)
S43O535A
Always attach tires as shown in
the upper drawings.
If not attached as illustrated,
transmission parts may be
damaged.
After changing wheel, nuts should
be torque to 17 ~ 19 kgf·m (166.7
~ 186.3 N·m, 123.0 ~ 137.4 lbf·ft).
IMPORTANT
WARNING
!!
!!
!
Do not use tires larger than spe-
cified.
DK90
REAR WHEELS
(1) Wheel Bolt (3) Disc
(2) Rim Bolt
The rear axle tread width are adjust-
able by changing the installation of
the tire (together with rim) to the disk,
to suit the type or condition of work.
In either case, the tire should be in-
stalled so that arrow mark would
show the direction of rotation.
Furthermore, the tire mark on the
ground should be in “V” shape.
S43O533A
