Kioti NX4520 - Lifting Arm (Lower Link) Speed Control Lever; Double Acting Lever (if Equipped)

4
-
48 NX4520 / NX5020 / NX5520 / NX6020
Turning the lever counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.

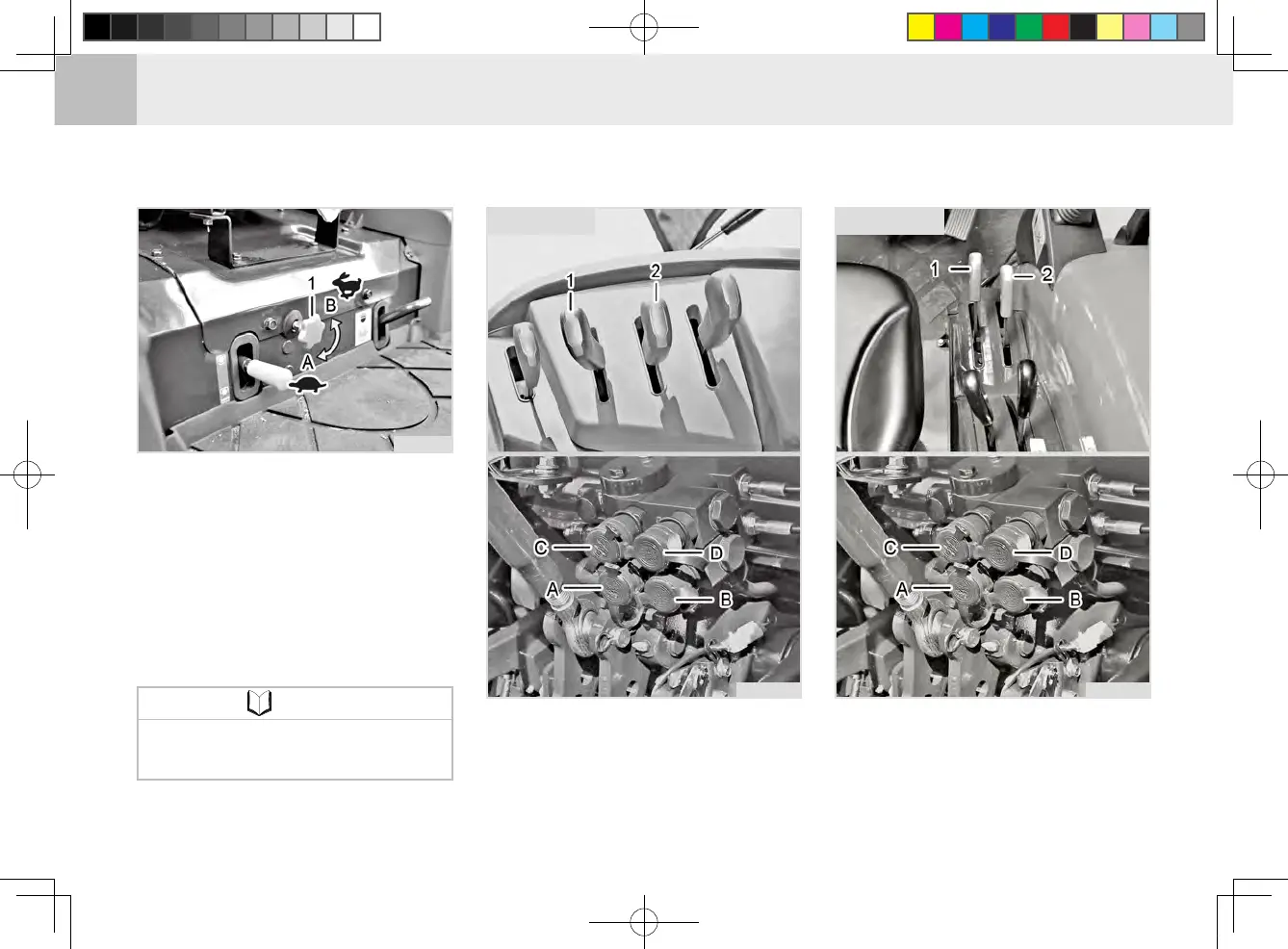

(1) Lowering Speed Control Lever
(A) Low Speed (B) High Speed
TE1O4C1A
LIFTING ARM (LOWER LINK) SPEED
CONTROL LEVER
This lever does not control the
lifting speed of the lifting arm.
•
NOTE
DOUBLE ACTING LEVER
(I
F EQUIPPED)
TE1O4B9A
(1) Double Acting Lever 1
(2) Double Acting Lever 2
(A) Port A (B) Port B
(C) Port C (D) Port D
CABIN
TE1O4d3A
ROPS
(1) Double Acting Lever 1
(2) Double Acting Lever 2
(A) Port A (B) Port B
(C) Port C (D) Port D
