Four speeds can be selected by
moving this main shift lever in "H"
shaped path. You can shift into this
lever from the 1st to 4th gears even
when the tractor body is moving by
disengaging the clutch during driving
as these gears are synchromeshed.
In total, 24 forward driving speeds
and 24 reverse driving speeds are
provided by combination of the main
shift lever (4 speeds), range shift
lever (3 speeds), shuttle shift lever,
and creep speed lever.
(1) Main Shift Lever
MAIN SHIFT LEVER
[MANUAL]
TE1O490A
TE1O4C8A

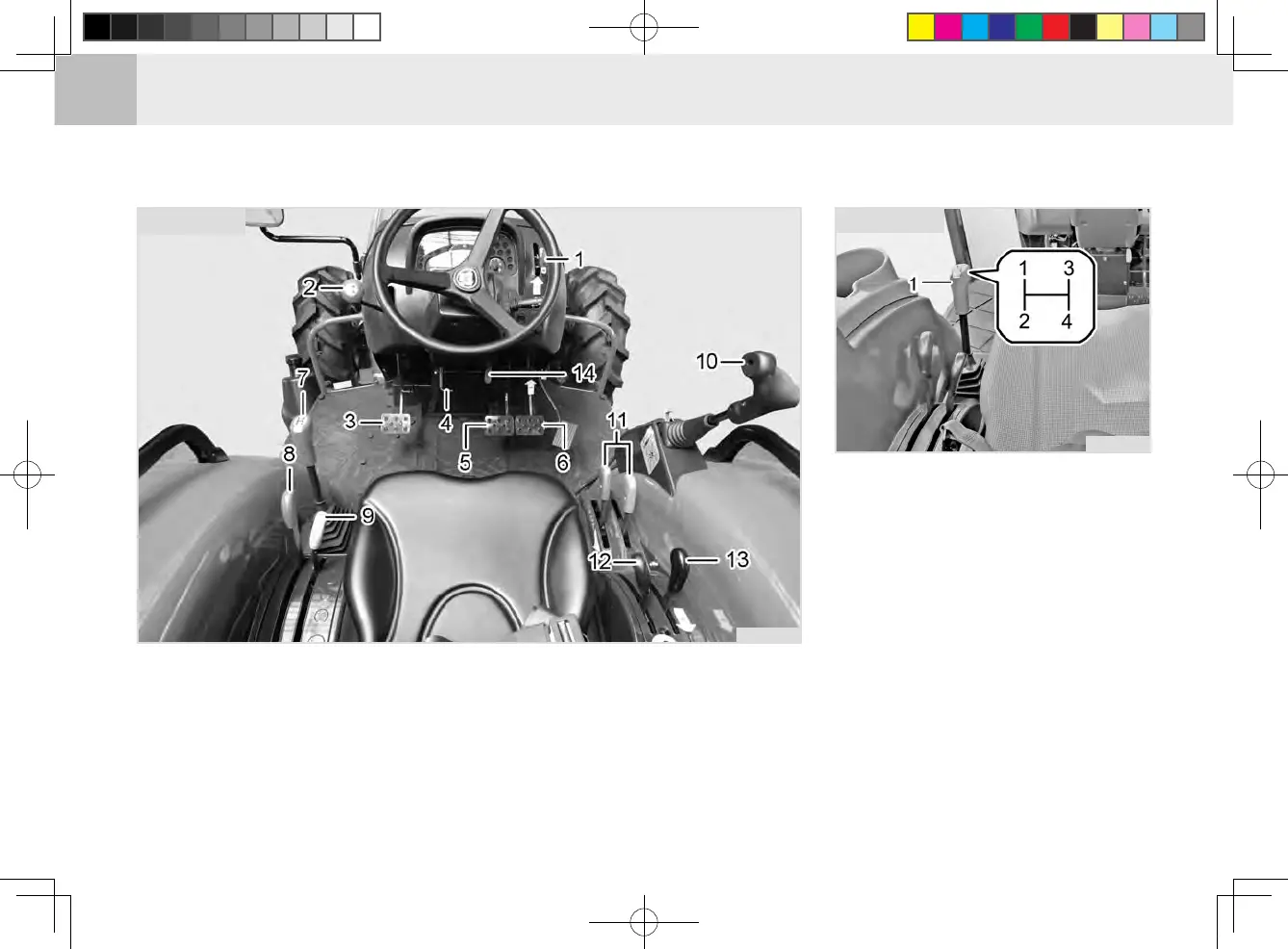

(1) Hand Throttle Lever
(2) Shuttle Shift Lever
(3) Clutch Pedal
(4) Tilt Steering Pedal
(Steering Wheel Angle Adjustment)
(5) Brake Pedal (L)
(6) Brake Pedal (R)
(7) Main Gear Shift Lever
(8) Range Gear Shift Lever
(9) Creep Gear Speed Lever
(10) Joystick Lever
(11) Double Acting Lever (A, B)
(12) Draft Control Lever
(13) Lift Position Control Lever
(14) Parking Brake Lock Lever
[ROPS]
