• A : Traction power is not required
(Rotary etc.)
• B : Heavy load traction work
• C : Normal load traction work
1. Adjust an angle of the implements
to the desired position by shorten-
ing or lengthening the top link.
2.
Adjusting a proper length of imple-
ments varies as a type of imple-
ments used.
ADJUSTMENT OF STABILIZER

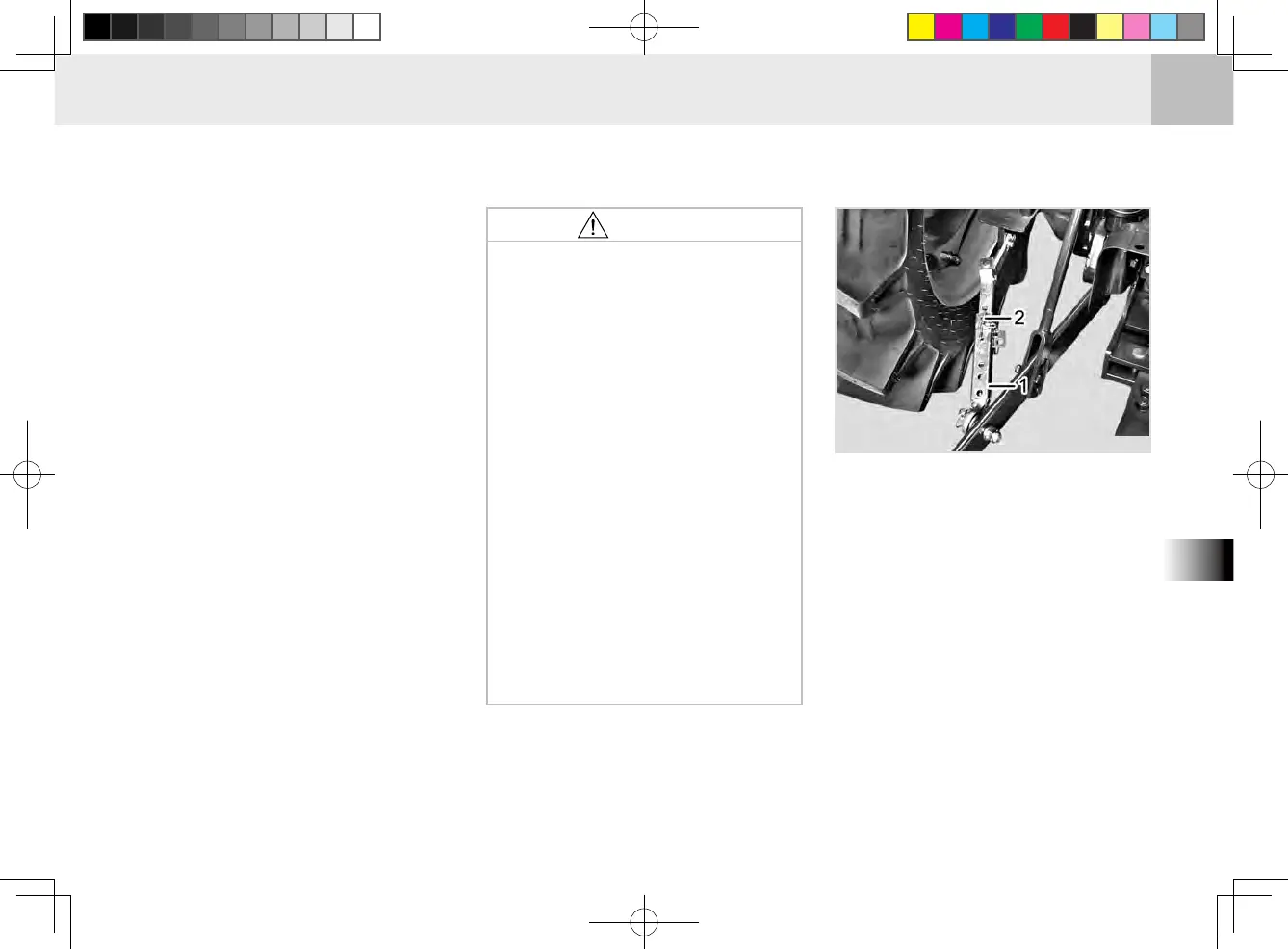

(1) Telescopic Stabilizers (2) Pin
1. Adjust the telescopic stabilizers
to control horizontal sway of the
implement. It is also used to set
the implement on the back of the
tractor in center.
2. To adjust the check link, pull out
the pin and adjust it until the de-
sired transverse moving distance
is obtained.
3. Fit the pin to the gardening hole
(fixed) for normal operation and
long hole (moving) for draft work.
A plate describing how to at-
tach the implement is placed
on the standard implement of
our company.
When you are attaching an
implement not requiring any
traction, mount the assem-
bling spot of the top link into
the hole A.
Wh
en you are attaching an
implement (like plow) requir-
ing some traction, mount the
assembling spot of the top
link into the hole
B, C.
When driving with an imple-
ment attached, make sure to
install the top link to the hole
A
or B or put the draft control
to the "Deep" position.
•
•
•
•
CAUTION
Te1O605A
