Chapter 1 Before Use 1-10

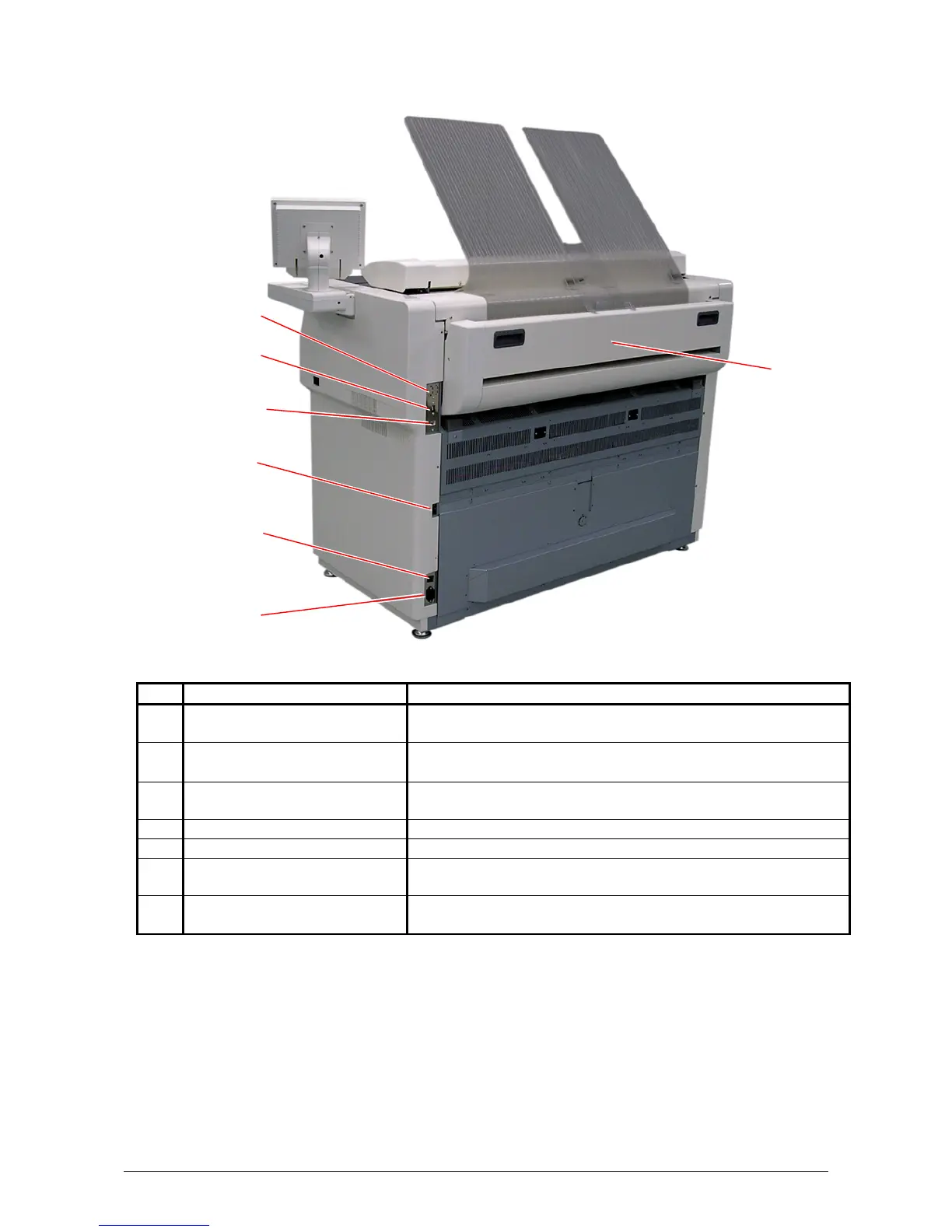

1. 5. 2 Rear view
No. Name Function
1 Exit Cover Open the Exit Cover when you remove the paper misfed
inside the Fuser Unit.
2 LAN Port Connect the LAN Cable to connect the KIP 7100 to the
network. (Do not connect a telephone line)
3 Dehumidify Heater Switch
(Optional in the US)
Turn on the Dehumidify Heater with this switch when you
would like to dry the paper in the humid season.
4 Breaker It is possible to shut off supplying the AC power.
5 Inlet Socket Connect the Power Cord here.
6 COM Port (Optional) For an optional device
(D-Sub Connector 9 pins: 12VDC max.)
7 USB Port For an optional device
Service Use. 5VDC max.
1
2
4
5
3
7
6
