KIP 7100 - Stack Jam Clearing; Removing Prints and Trays; Engine Unit Access for Stack Jams; Clearing Top Stacked Prints

Chapter 3 Error Correction 3-10
3. 1. 5 Stack Jam

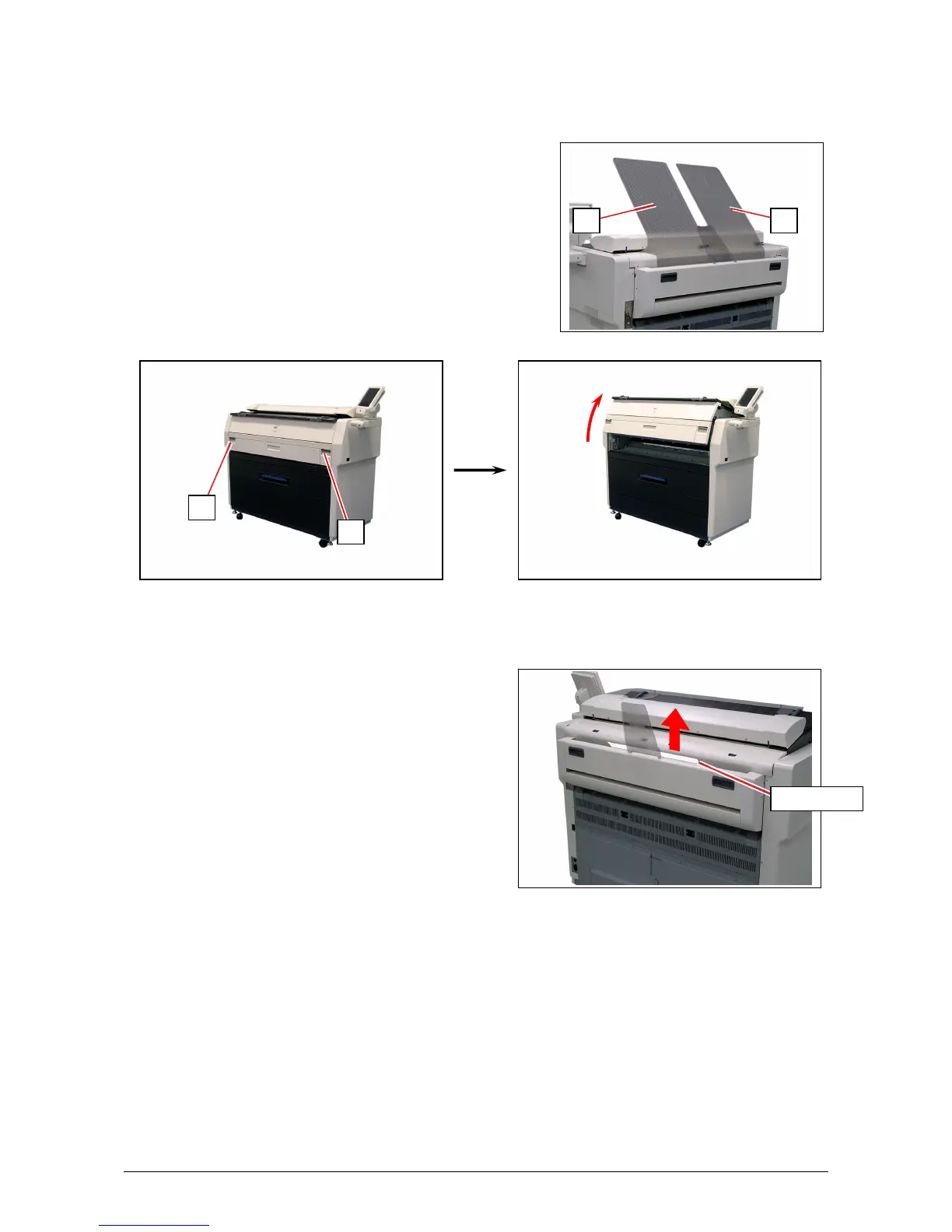

1. Remove print(s) on Print Trays.
2. Remove Print Trays (1).
3. Pull up the Engine Unit Open Levers (2) to open the Engine Unit.
4. Pull and remove the jammed print to the top.
If you remove the print at this time, just close the Engine Unit.
If the print cannot be removed, see [3.1.4 Fuser Jam] for the later procedure of clearing the
jammed print.
5. See [3.1.4 Fuser Jam] for the later procedure of clearing the jammed print.
2
2
1 1
jammed print
