KIP 7100 - Replacing Roll Media; Roll Deck Unlock and Removal; Removing Old Roll Media

Chapter 2 Basic Operation 2-5

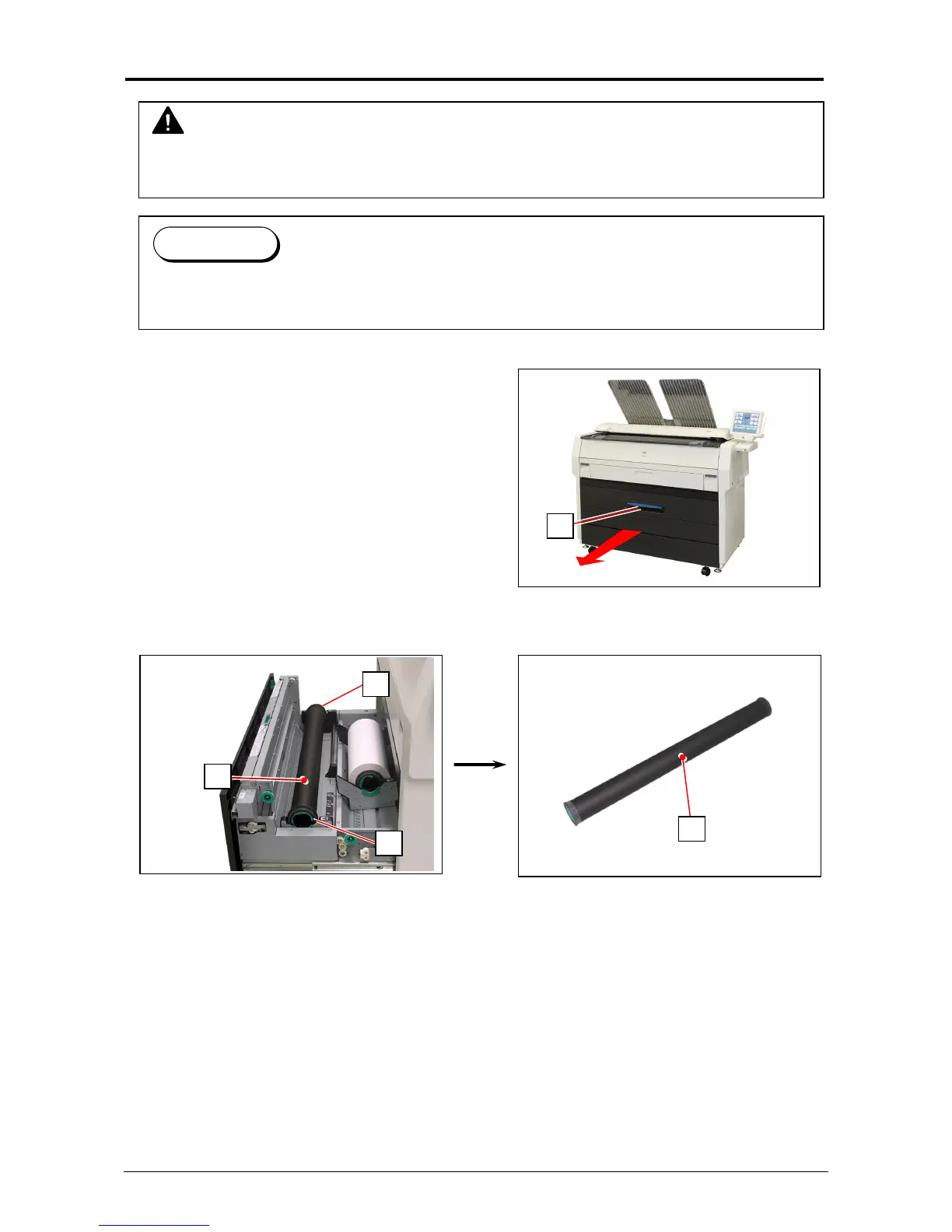

2. 3 Replacing Roll Media
1. Pull the blue lever (1) to unlock the Roll Deck. Draw out the Roll Deck.
2. Holding both Flanges (2), lift and remove a roll media or an empty roll core (3).
NOTE
(1) A paper mis-feed tends to occur just before out of a roll paper.
(2) A tracing roll paper is recommended to be loaded to Roll Deck 1 (front).
Reference
This section describes how to install a roll media to Roll Deck 1.
The same procedure is applied to Roll Deck 2, unless otherwise noted.
2
2
3
1
3
