DR600 Service Manual

Terminal NO. Terminal Name I/O Function

1 NC - -

2 NC - -

3 TXOUT O RS232 TX output

4 NC - -

5 RXIN I RS232 RX input

6 NC - -

7 NC - -

8 NC - -

9 GND - Ground

10 NC - -

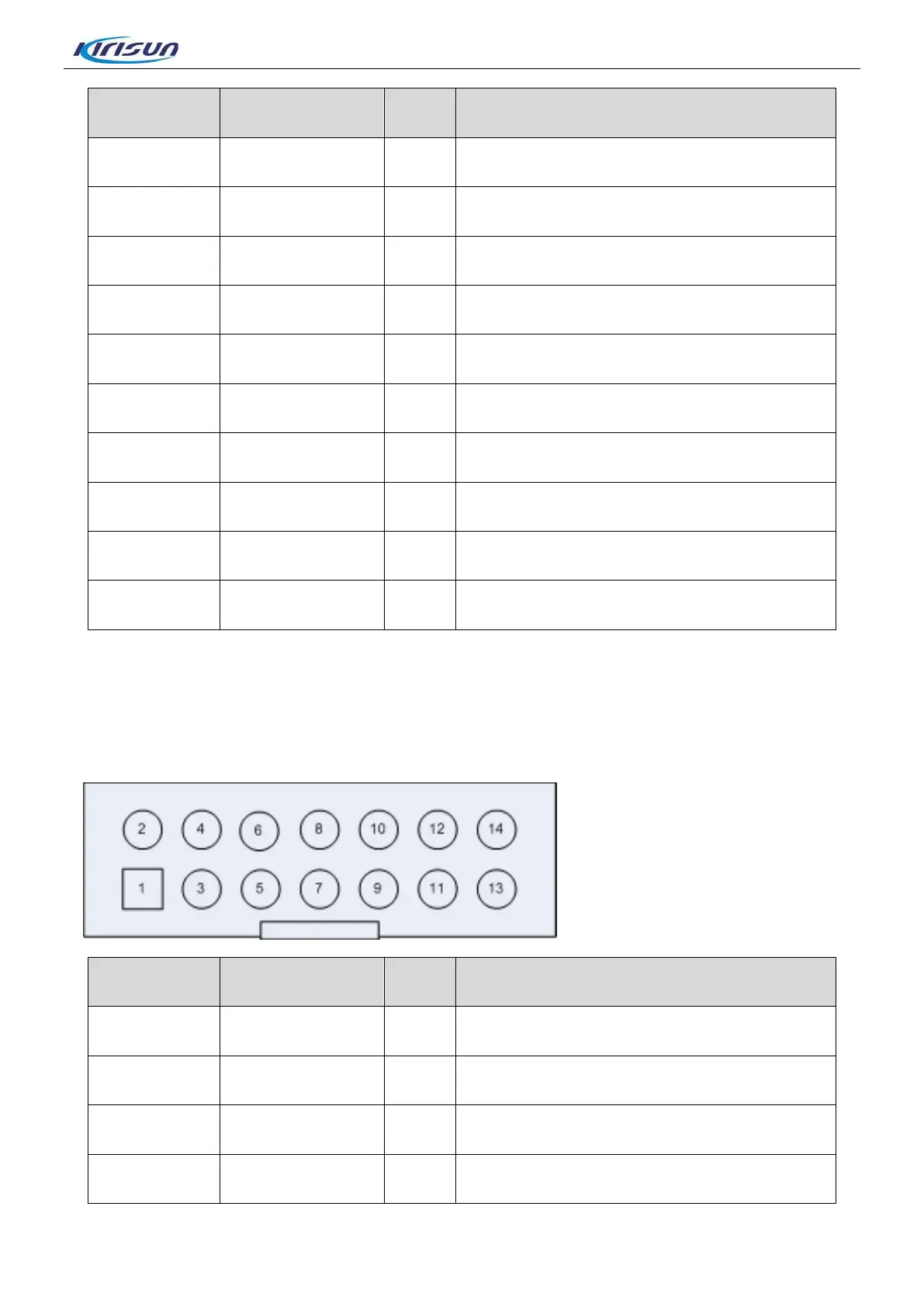

3.3.13 JTAG Simulator Interface Definition (J2)

Figure 3-22 JTAG Simulator Interface Definition

Terminal NO. Terminal Name I/O Function

1 TMS - TMS

2 TRST - TRST

3 - - -

4 - - -
