DR600 Service Manual

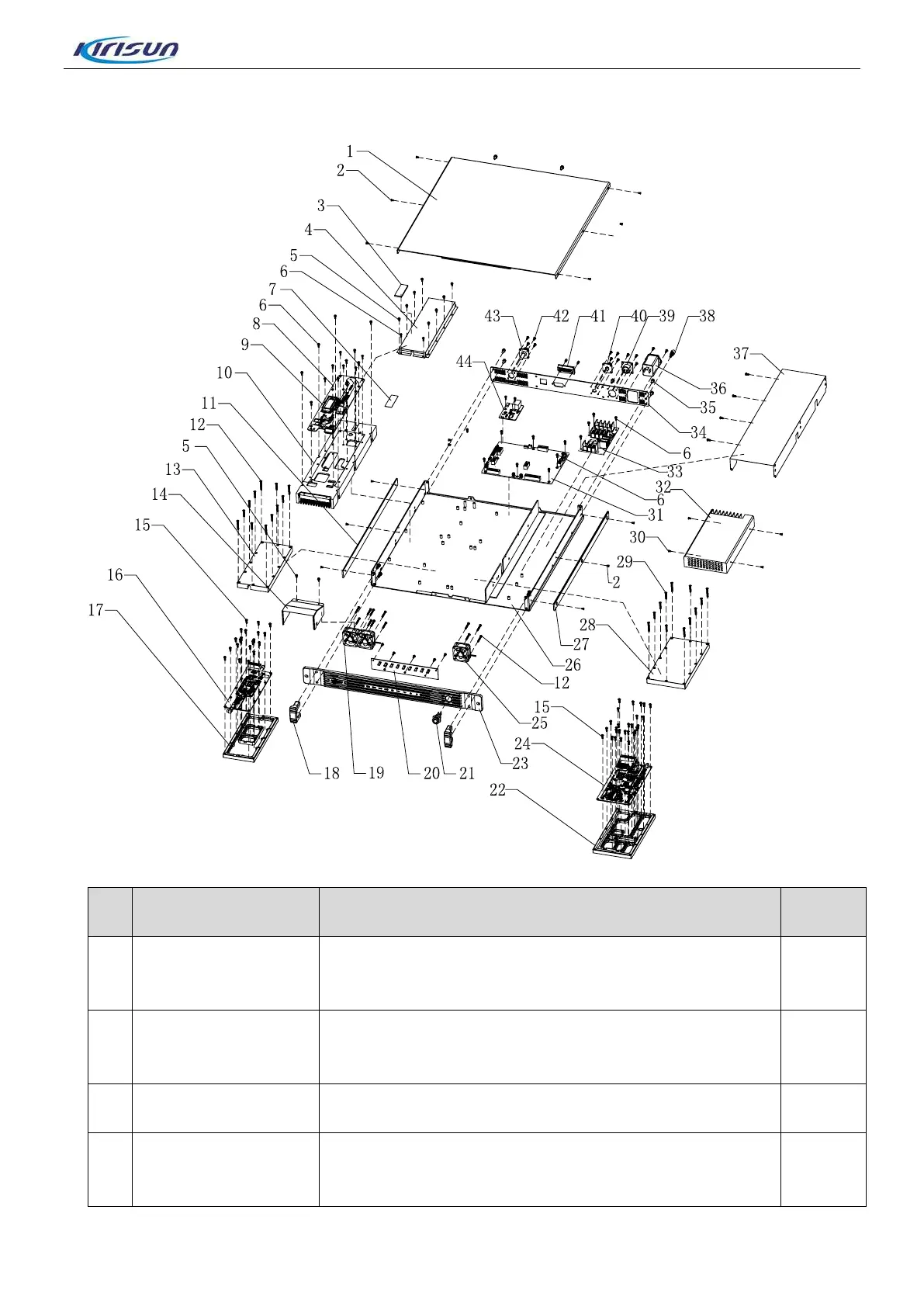

5.2 Exploded View
SN Material NO. Name, Specification and Model of Material Quantity
1 7MBF-4224-05A-Z Top panel of DR600 (included in DR600 case), cold-rolled
plate, zinc plated
1
2 7MBF-4224-06A-Z M3X5 cross recessed countersunk machine screw (included
in DR600 case)
12
3 7MBM-S1943-B PT8200 conductive foam, 50*18.5*3, single-sided adhesive 1
4 7MHS-4224-01A-W0
Shield cover of power amplifier module, 0.3mm stainless
steel, lead-free
1
34
