DR600 Service Manual

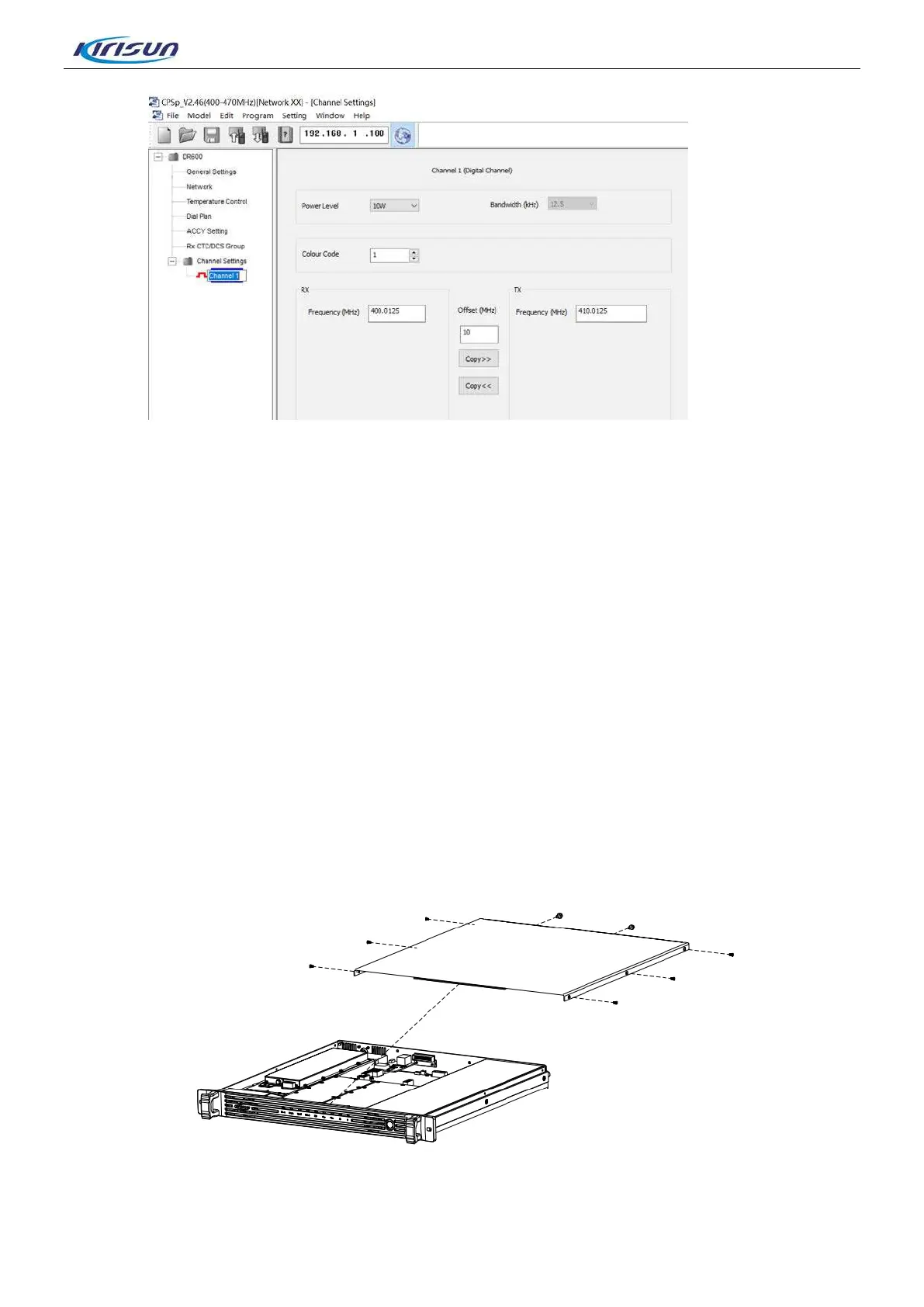

Please refer to the help file in the CPSp user programming software for more details.
Note:
1. Errors of parameter configuration may cause malfunctions, but normally you can rewrite the correct
parameter configuration.
2. Before parameter configuration modification, we strongly recommend a backup for the current
parameters to make sure that the parameters can be restored after an error occurs.
5. Assembly and Disassembly
5.1 Case Disassembly
To take off the upper cover, screw down the 3 screws respectively on the left and right sides of the upper
cover and the 2 screws at the back, push the cover backwards, and then take it off in obliquely upward
direction.
To take down the decorative strip, screw down the 3 screws on the right side.
31
