DR600 Service Manual

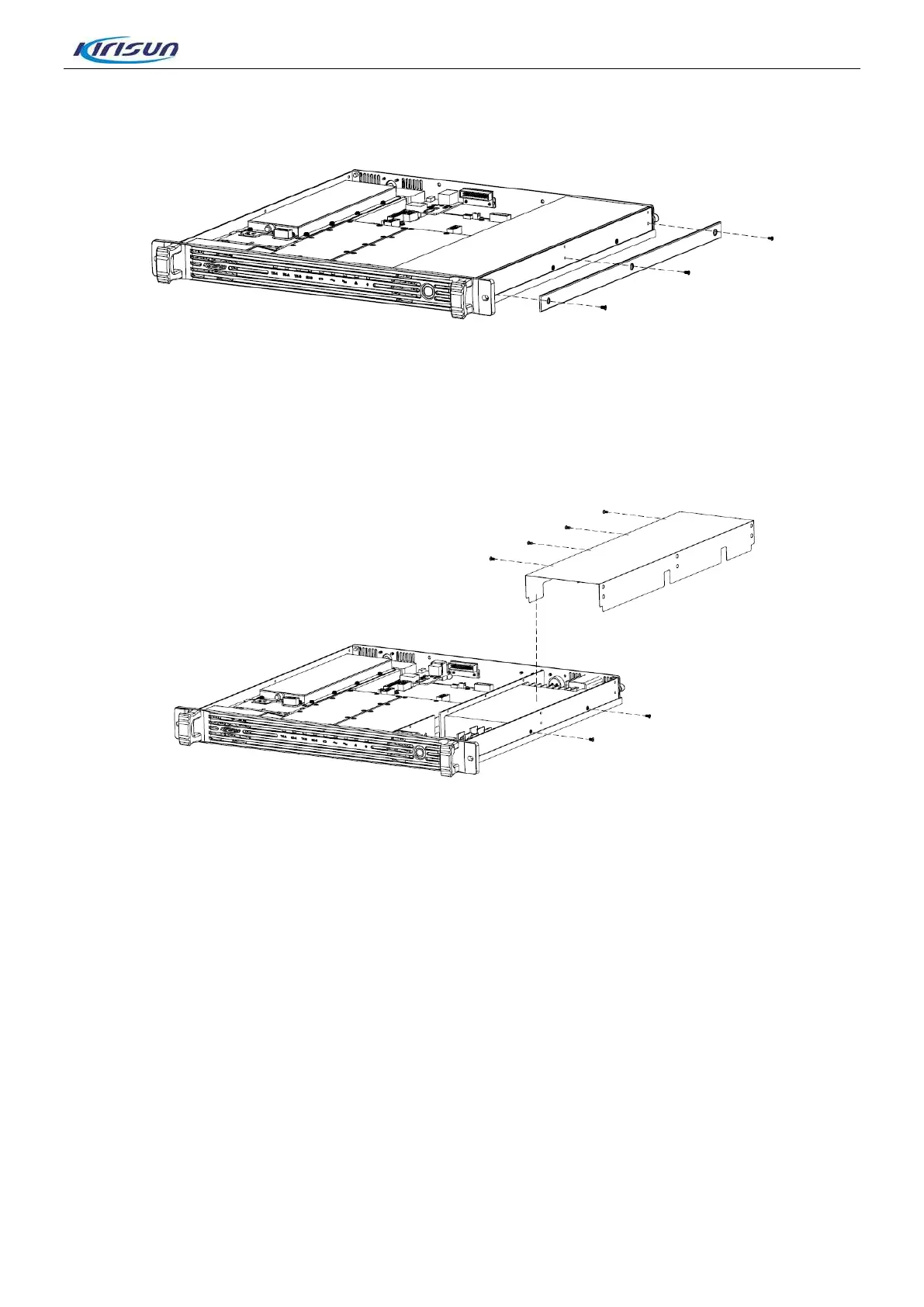

To take off the shield cover of the power supply, screw down the screws of the power supply on the right
and then the 4 screws on the left of the cover, and then take up the cover down.
Agents and after-sales service providers, that are authorized for maintenance, can assemble and
disassemble the inside of the case.
32
