DR600 Service Manual
provide it for the analog power of CODEC (U30).
3.3.3 Audio Processing

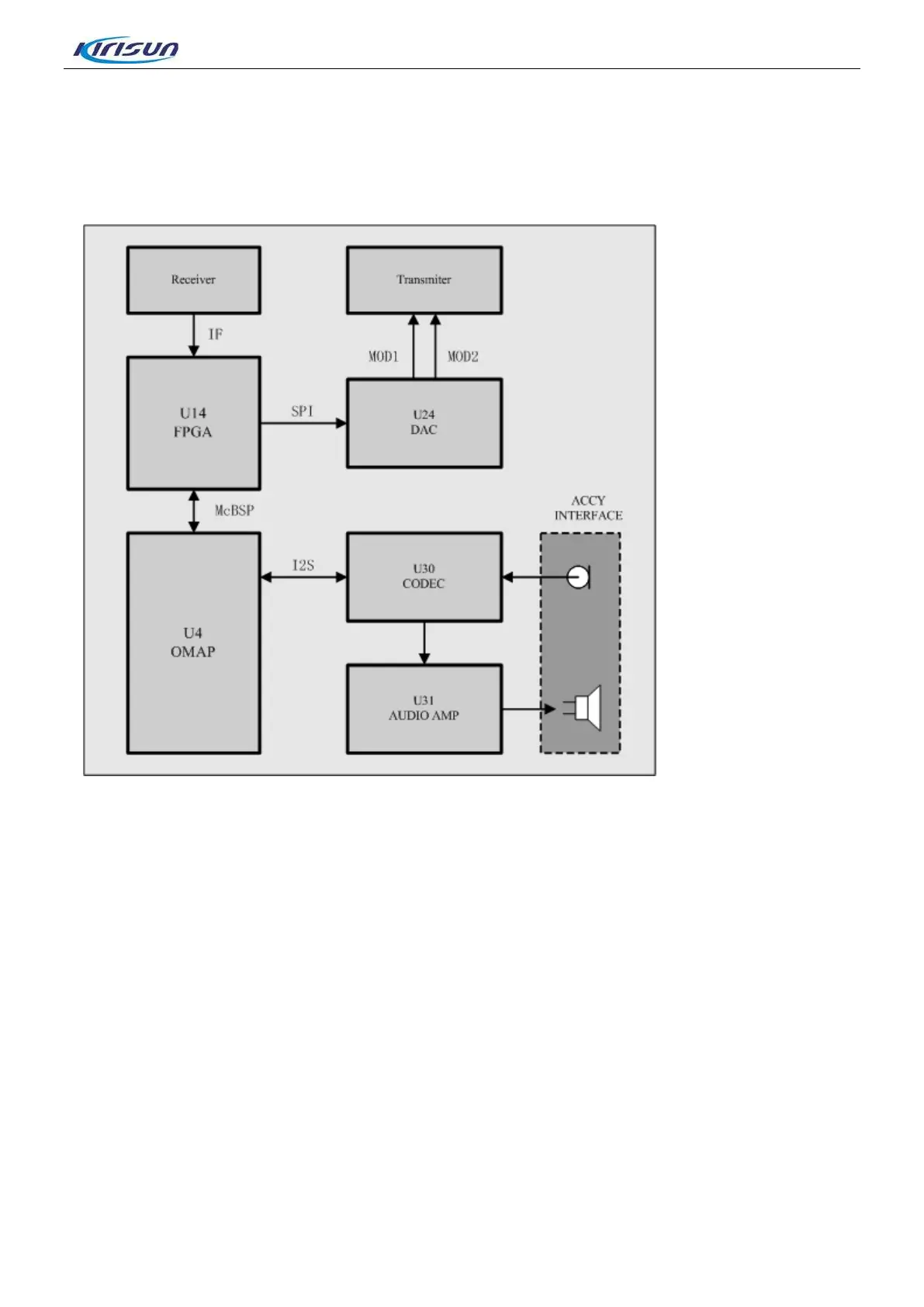

Figure 3-11 Audio Processing Schematic Diagra
As the Figure 3-11 shows, the audio processing module mainly achieves encoding and decoding with ADC
and DAC of the audio signal, including air audio forwarding and local audio TRx.
Air Audio Forwarding
The digital IF signal from the RF receiver will be first sent to the FPGA(U14) for time slot processing and
achieving the framing, filtering and extracting of the data to realize the calculation and synchronization of
the frame number; the signal will be send to the DSP of CPU (U4)via the McBSP interface for 4FSK
decoding, digital audio signal decoding and etc.. Meanwhile, the internal DSP will send the digital audio
signal which achieves the decoding and encoding to the FPGA(U14) for time slot processing and finishing
the framing, filtering and interpolation and other synchronization calculation of the data, and the digital
audio signal will then be sent to the DAC (U24) via the SPI interface for the audio digital/analog switch,
generating the analog speech two point modulation signal before being sent to the transmitter for the audio
forwarding.
Local Audio TRx
The internal DSP in the main processor(U4) connects to the CODEC(U30) via the I2S digital audio interface.
The CODEC(U30) will convert the analog audio input from the external to digital audio, then send into the
14
