Kirisun TM840 - Removing the Front Panel from Transceiver; Chapter 5. Assemble and Disassemble Instructions

TM840 Service Manual
Notes:
1. Errors of parameter configuration may make certain functions cannot be used properly, in general, which can be solved by
writing the correct parameters configuration.
2. Before parameter configuration modification, we strongly recommend backup the current parameters, make sure that the
radio can restore after an error occurs.
Chapter 5. Assemble and Disassemble Instructions
5.1 Removing the front panel from transceiver

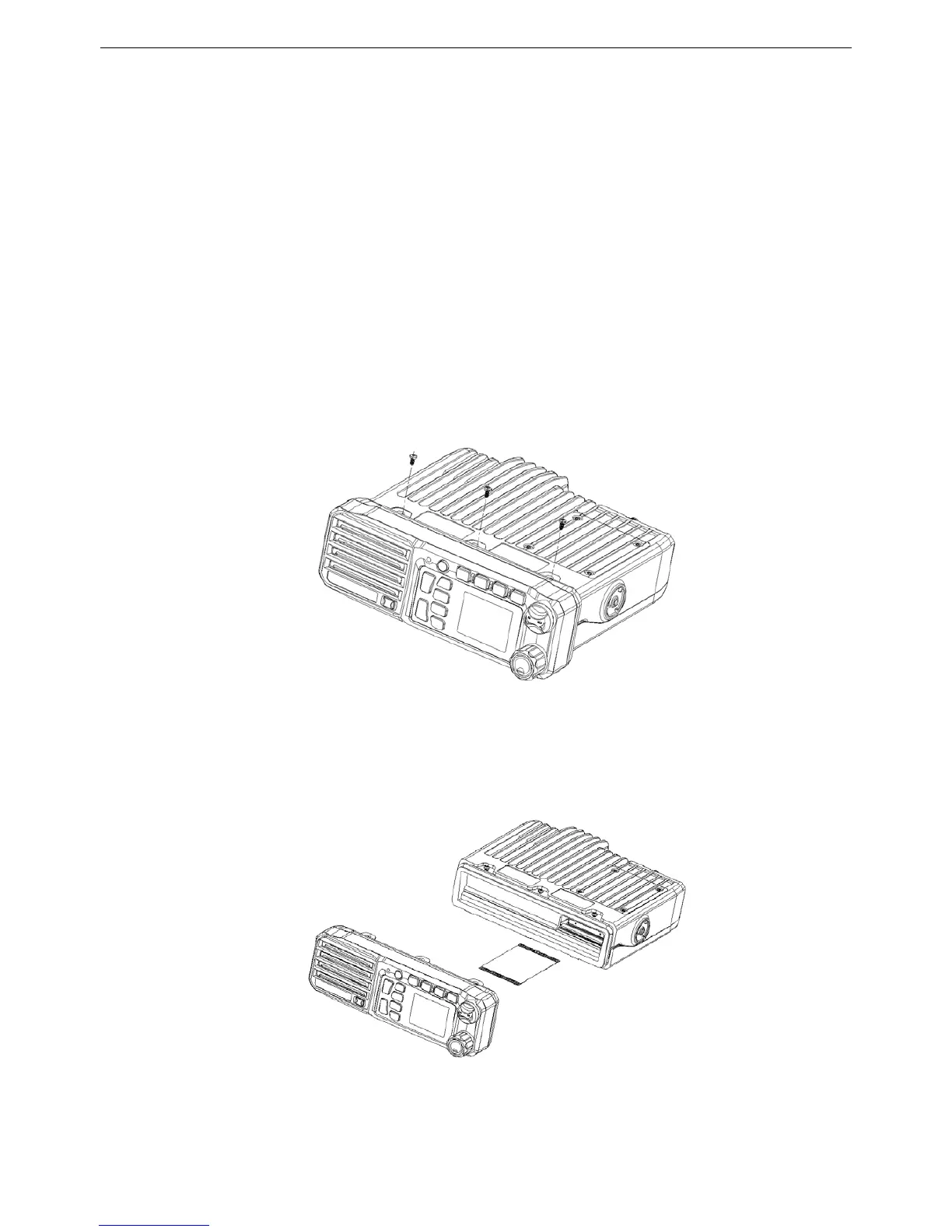

(1) Unscrew 3 screws as per figure 5.1;
Figure 5.1
(2) Remove the front panel from the main body;
(3) Disconnect the FPC as per figure 5.2.
Figure 5.2
