Kistler 9323AAA - Adaptation F: Mounting Via Integrated Flange

Press Force Sensor
Type 9323AA, 9323A, 9333A, 9343A, 9363A, 9383A, 9393A
Page 20 9323A_002-476e-11.24
4.3.6 Adaptation F: mounting via integrated flange

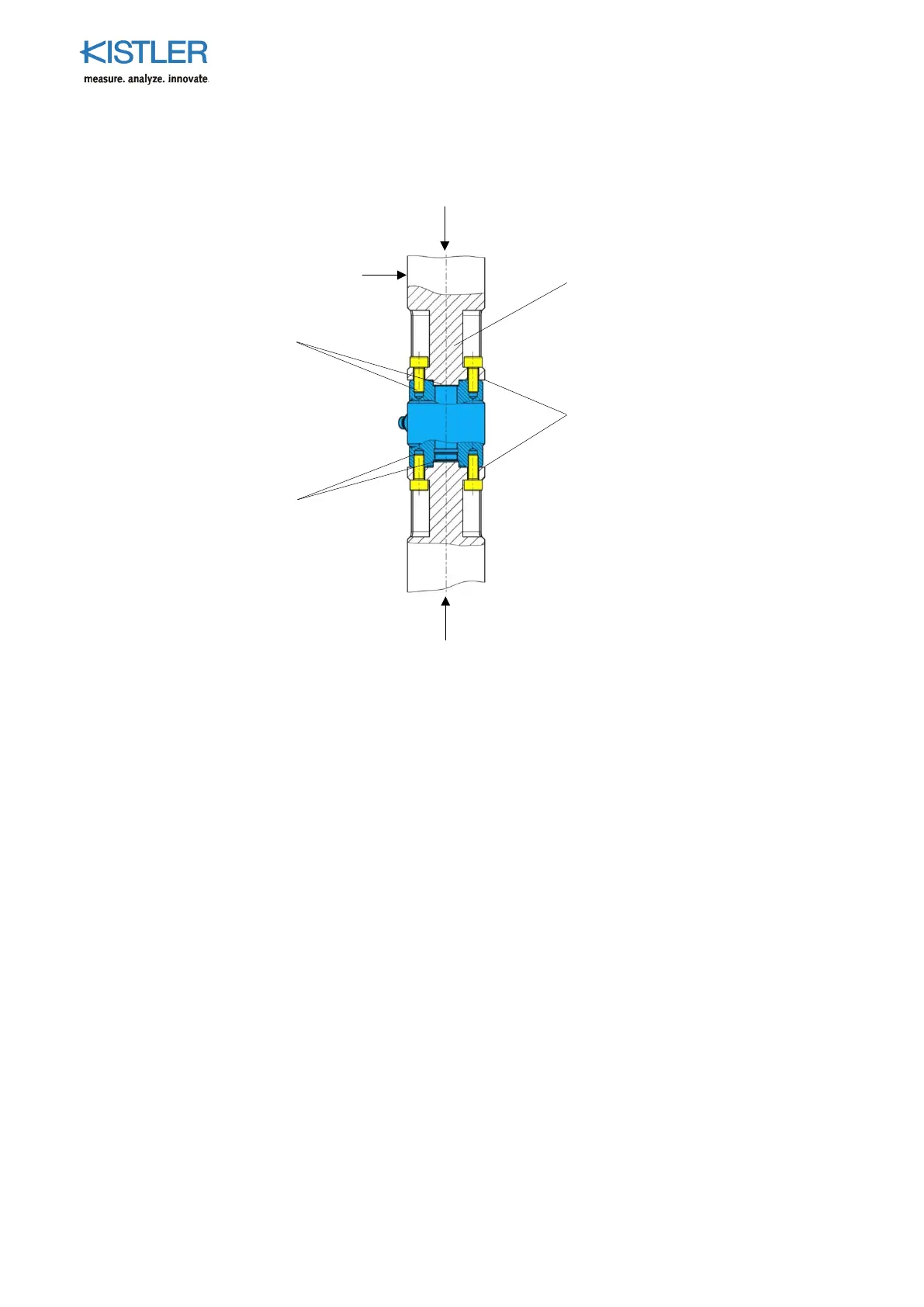

Fig. 14: Mounting example F
We recommend the use of screws from strength class 12.9
upwards, see also section 4.2.
Explanations concerning F
z
, F
s
threaded bushing and moun-
ting clearance S can be found on page 15.
Customized ram
Standard flange
adaptation
Mounting clearance
S
Mounting clearance
S
F
Z
F
S
M
A
M
A
F
Z
