Kistler 9323AAA - Frequency Range

Press Force Sensor
Type 9323AA, 9323A, 9333A, 9343A, 9363A, 9383A, 9393A
Page 72 9323A_002-476e-11.24
0.01
0.1
1
10
100
0.01 0.1 1 10
10.4 Frequency range
Because of their mechanical quality, piezoelectric sensors
have very low damping. The useful frequency range is
limited in the upwards direction by the increasing
resonance rise.
Key: f = Measuring frequency
f
n
= Natural frequency
A/A
0
= Amplitude ratio
The following approximate values apply to the amplitude
error or achievable accuracy as a function of frequency:
Accuracy 10 %  f
max
≈ 0,3 · natural frequency
5 %  f
max
≈ 0,2 · natural frequency
1 %  f
max
≈ 0,1 · natural frequency

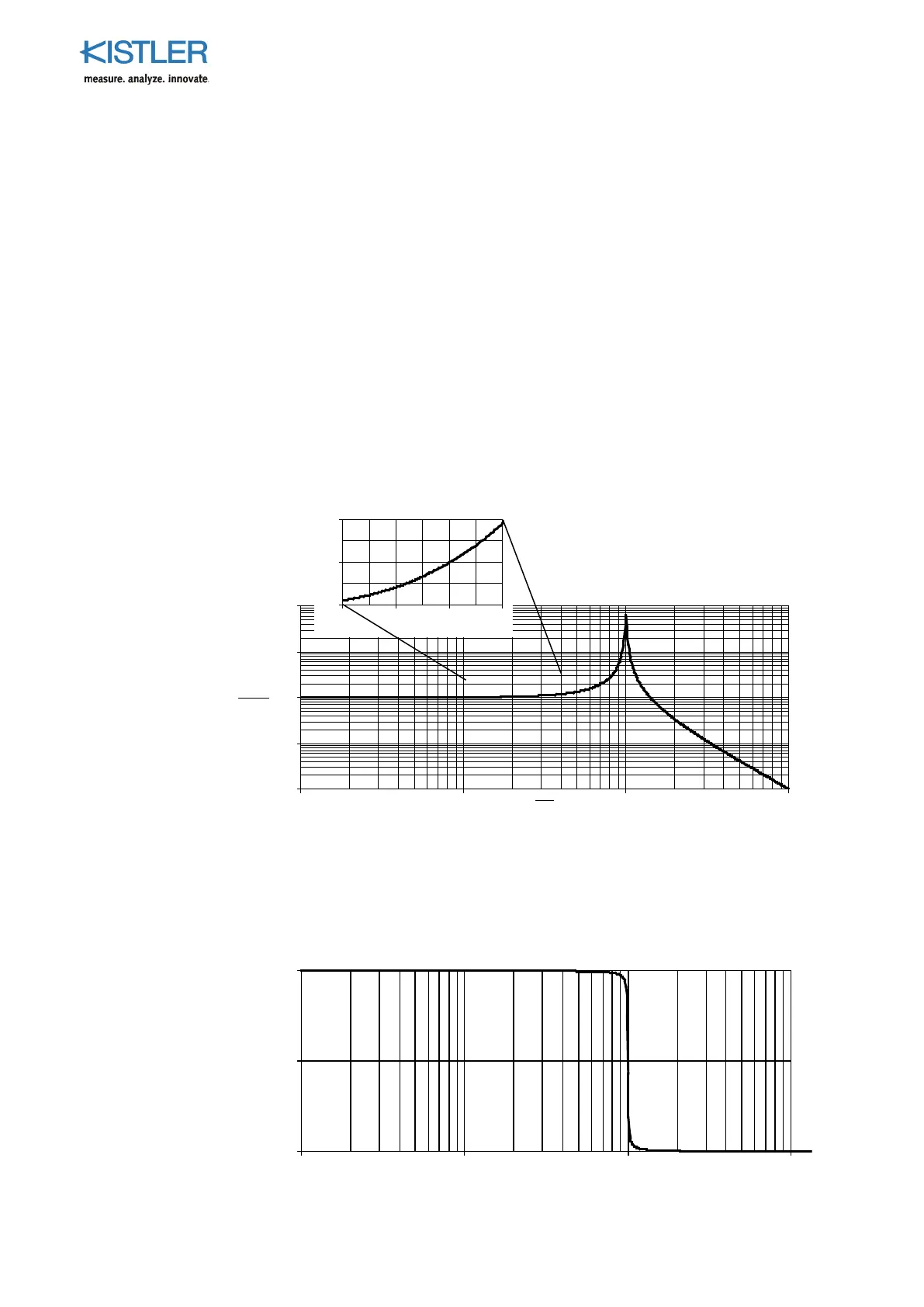

Fig. 40: Schematic representation of frequency response and
phase response
Frequency response
1.0
1.1
1.2
0.1 0.2 0.3 0.4
n
f
f
Phase response
n
f
f
ϕ
-180
-90
0
0.01 0.1 1 10
0
A
A
n
f
f
