Kistler 9323AAA - Dimensions Type 9323 A;AA;AAA, 9333 A, 9343 A, 9363 A, 9383 A, 9393 A

Press Force Sensor
Type 9323AA, 9323A, 9333A, 9343A, 9363A, 9383A, 9393A
Page 54 9323A_002-476e-11.24
9.2 Dimensions Type 9323A/AA/AAA, 9333A, 9343A, 9363A, 9383A,
9393A
Type 9323A/AA/AAA/9333A/9343A/9363A Type 9383A

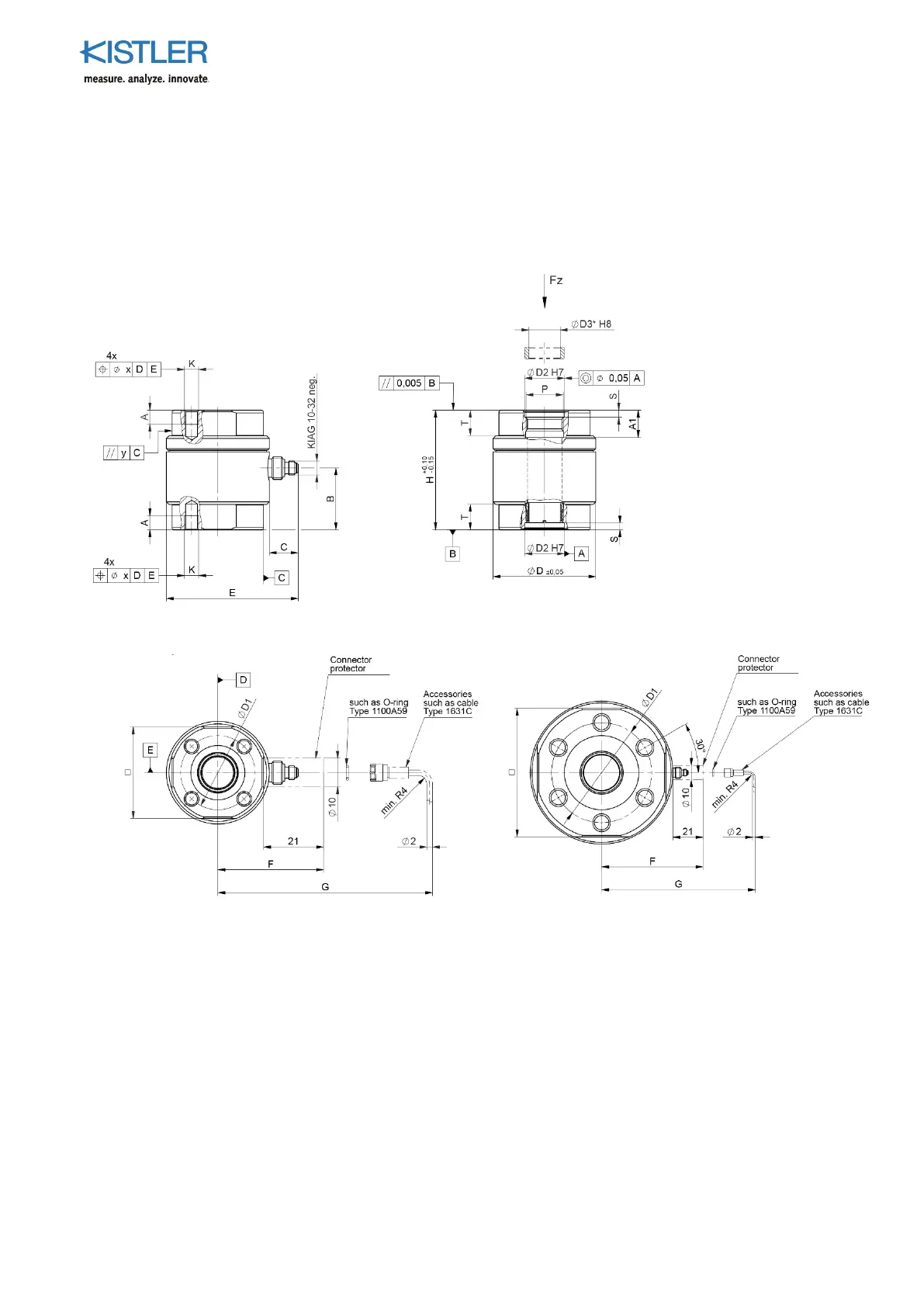

Fig. 37: Dimensional drawing: Press Force Sensor Type 9323A/AA/AAA,
9333A, 9343A, 9363A and 9383A
