Kistler 9323AAA - Male Thread Adapter for Type 9323 A;AA;AAA, 9333 A, 9343 A, 9363 A, 9383 A, 9393 A

Press Force Sensor
Type 9323AA, 9323A, 9333A, 9343A, 9363A, 9383A, 9393A
Page 62 9323A_002-476e-11.24
9.5.4 Male thread adapter for Type 9323A/AA/AAA, 9333A, 9343A, 9363A, 9383A,
9393A
For Type
Type
D1
D5
d2
d4
d6
H
N
P
L
T
9323A/AA/AAA
9586A9
14
20
6
3,2
5,6
8
3
M4
5
2
9333A
9586A0
21
30
10
4,3
7,5
11
5
M8
9
2
9343A
9586A1
26
36,5
14
5,3
9
14
7
M12
12
2
9363A
9586A2
40
56
21
8,4
14
21
9
M18
19
2
9383A
9586A4
70
100
30
13
20
30
13,5
M27
26
2,5
9393A
9586A6
105
150
52
17
26
48
17
M42
43
2,5

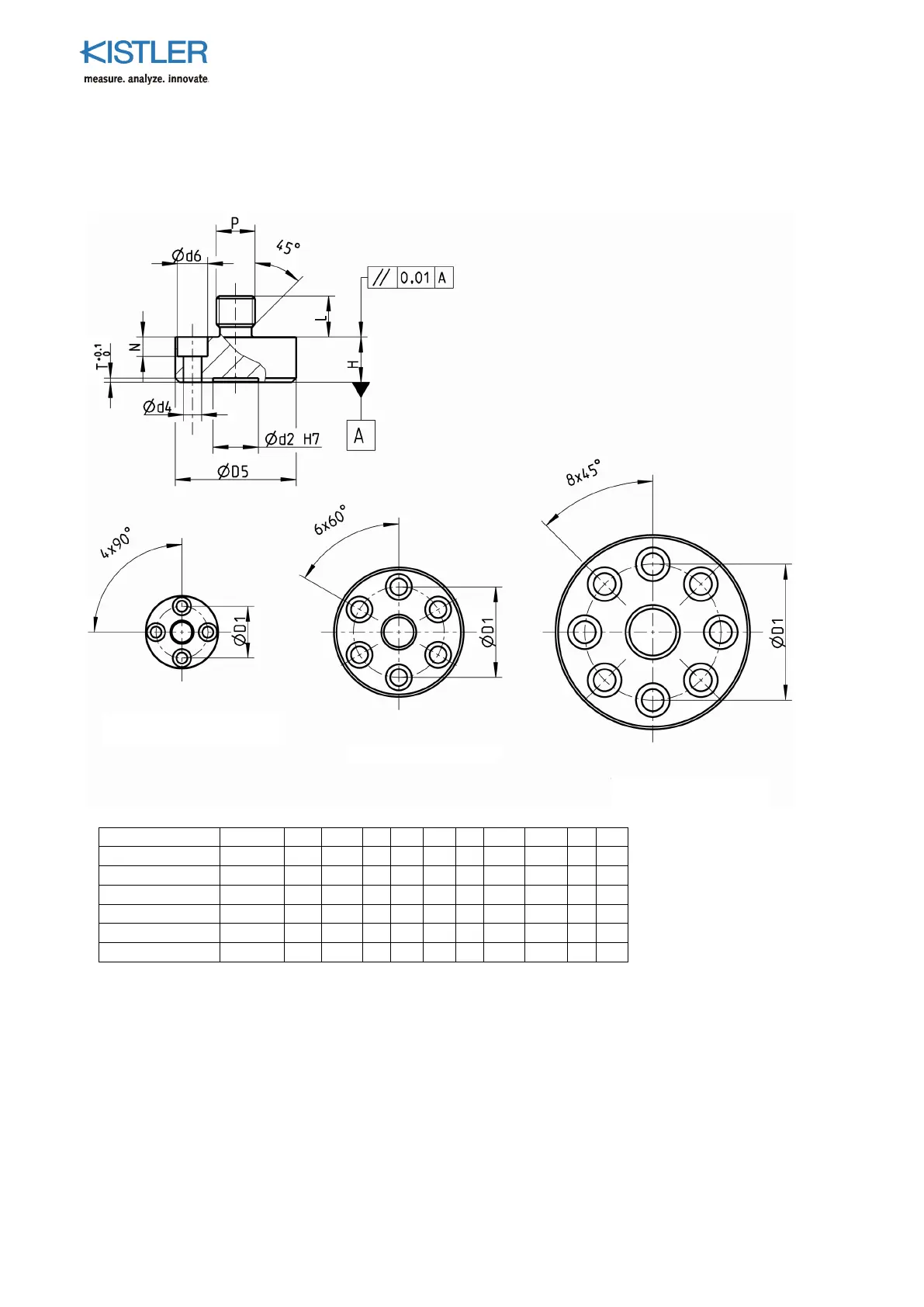

Type 9586A4
Type 9586A6
Type 9586A9/A0/A1/A2
