Press Force Sensor
Type 9323AA, 9323A, 9333A, 9343A, 9363A, 9383A, 9393A
Page 28 9323A_002-476e-11.24
Calculation of an applied bending moment with any
given triaxial force, taking az0 into account:
M
x
= Fy x (az
0
+ az) + Fz x ay
M
y
= Fx x (az
0
+ az) + Fz x ax

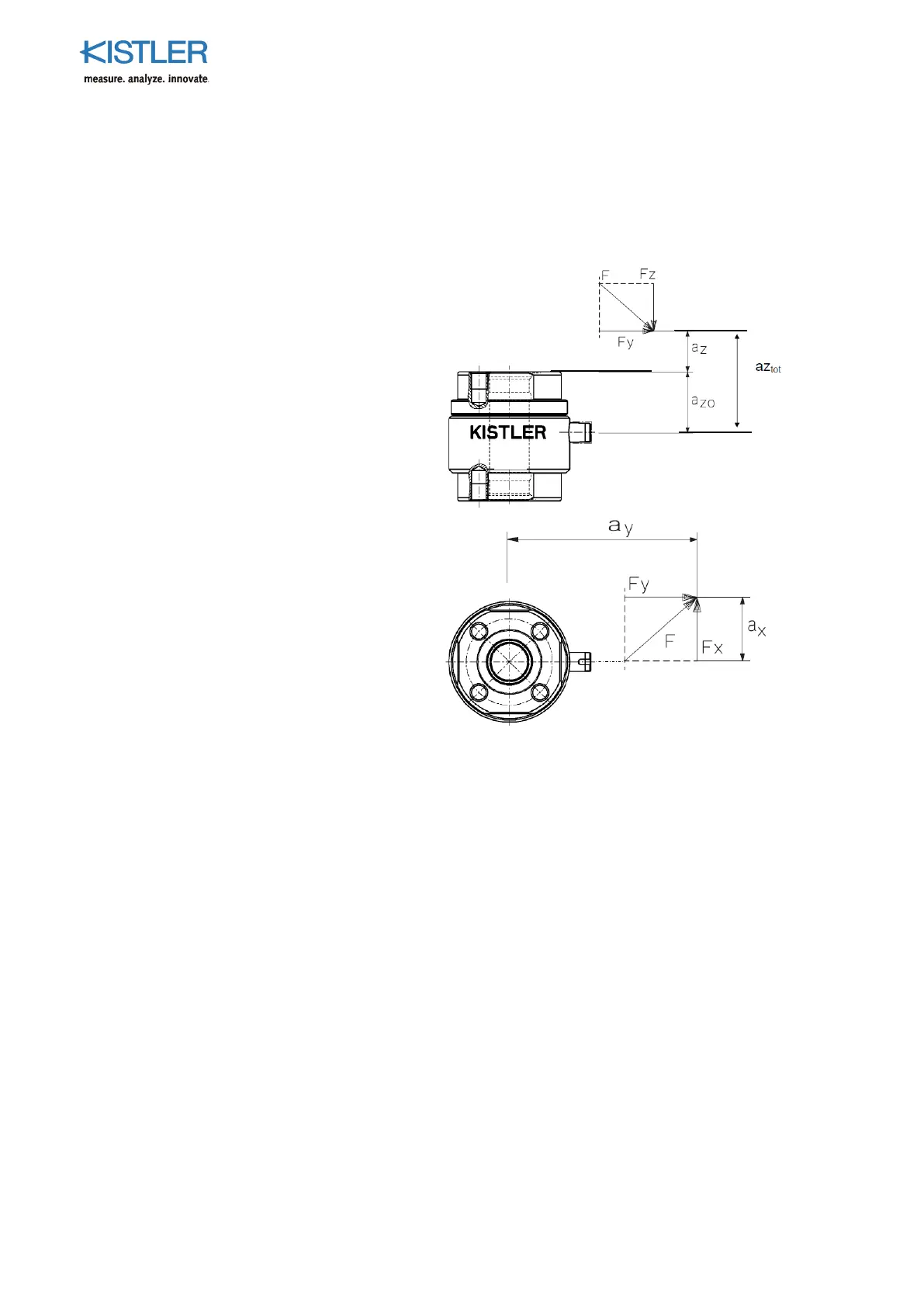

Fig. 21: Application of force
5.1 Calculation example
The point of application of force on the sensor, as well as a
shear force or an additionally applied bending moment or
torque, influence the permissible measurement range Fz to
a considerable extent.
The following example is used to illustrate how you can
determine the limits on the basis of the respective
application case.
Guideline
The Press Force Sensor Type 9333A is loaded with an
axial force Fz = 42.36 kN (az = 0 mm) while at the
same time a shear force F
shear
= 4 kN is applied at the
height az = o.
