KitchenAid KDTM404EBS - Removing Dispenser Assembly

4-10
n
KitchenAid 2015 Microltration Dishwashers
COMPONENT ACCESS
Removing the Dispenser
1. Unplug dishwasher or disconnect power.
2. Remove the outer panel from the door.
3. Disconnect dispenser harness.
4a. LONG DISPENSER: Remove - 6 - ¼” hex head screws
securing the dispenser to the door. Remove dispenser
assembly and bracket, (see Figures 1 & 3).
4b. MINI DISPENSER: Use a at-blade screwdriver on locking
clips to remove dispenser assembly (see Figures 2 & 4).

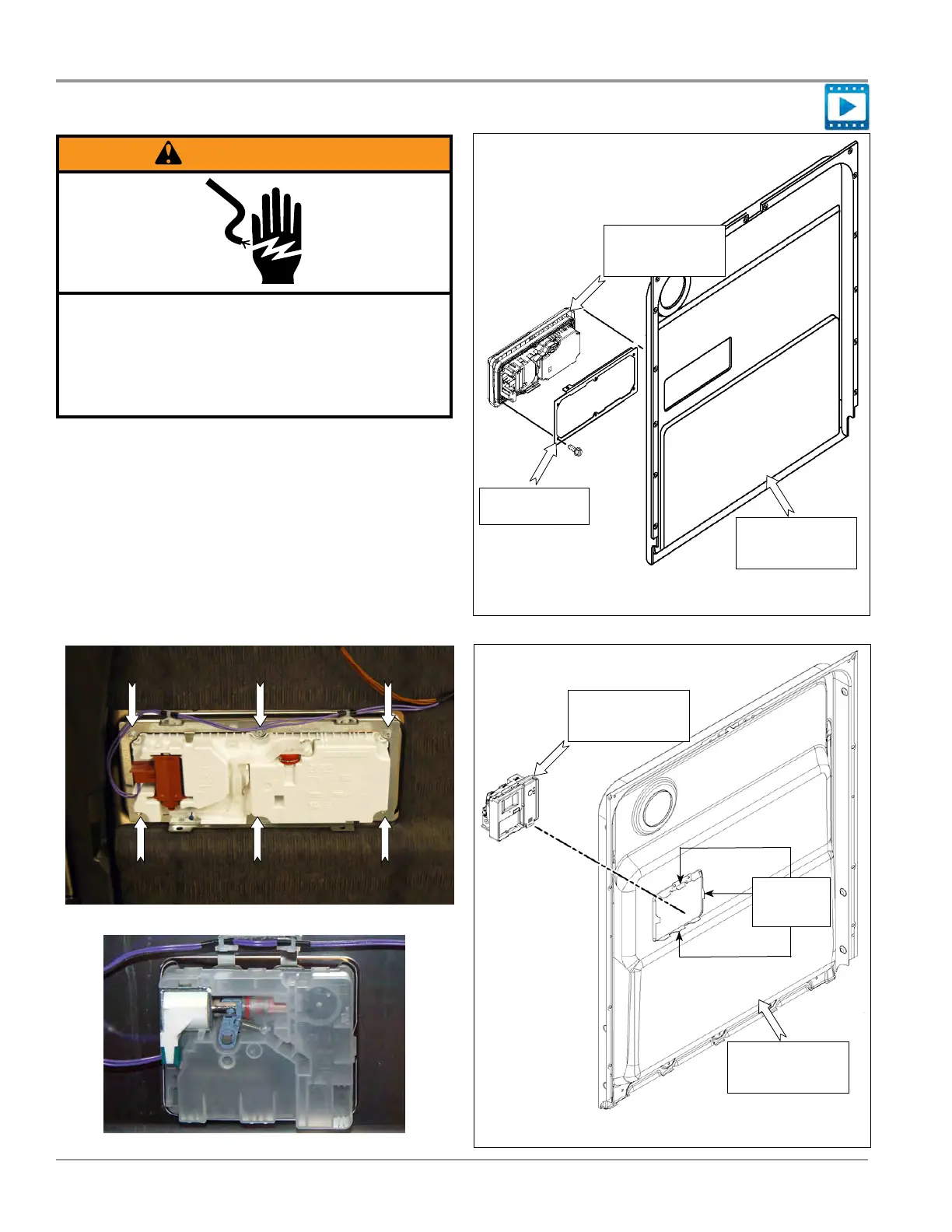

Figure 1 - Long Dispenser
Figure 2 - Mini Dispenser
Removing Dispenser Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Bracket
Dispenser
Assembly
Inner
Door Panel
Figure 4 - Mini Dispenser
Figure 3 - Long Dispenser
Dispenser
Assembly
Inner
Door Panel
Locking
Clips
